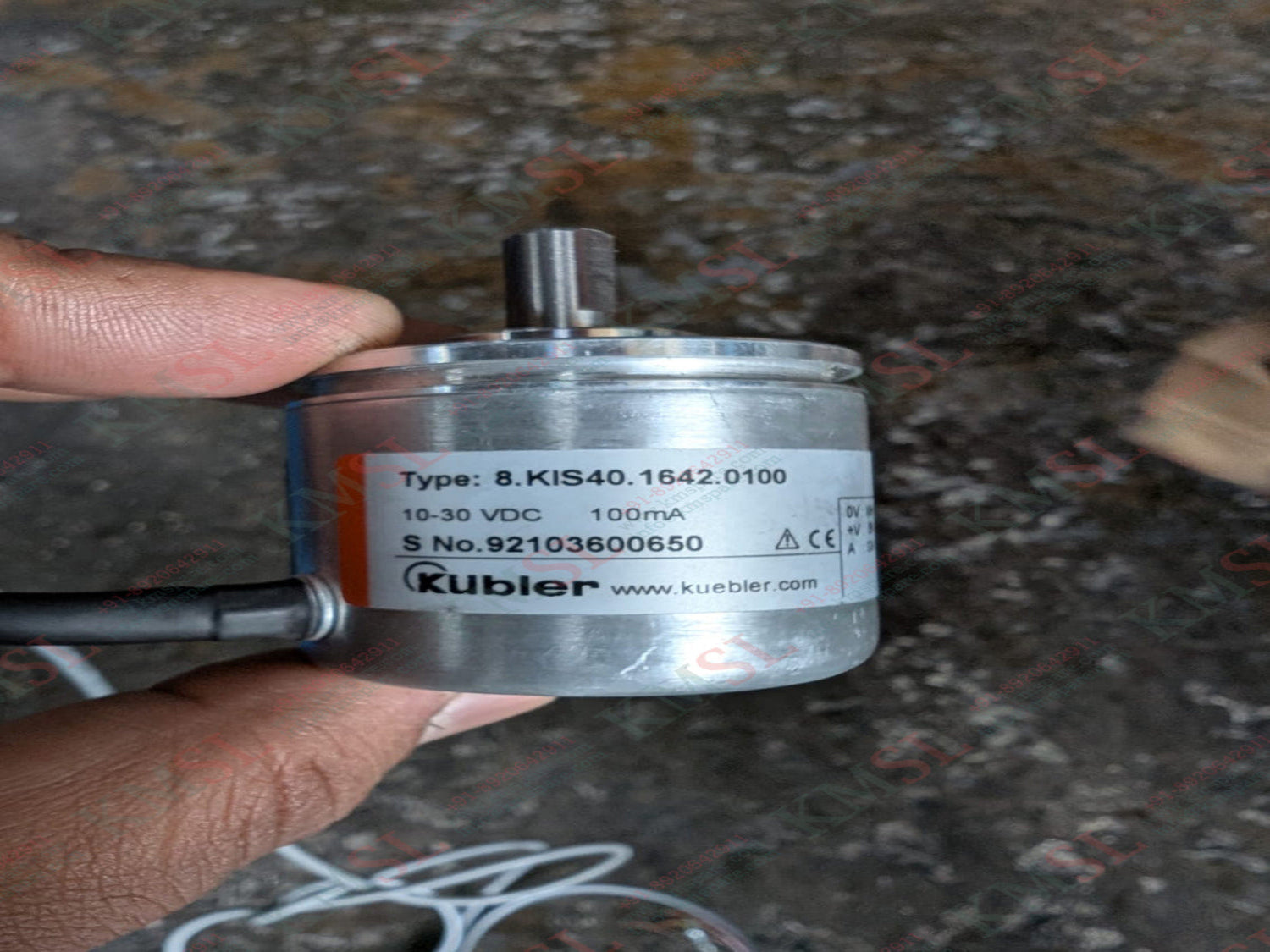

8.KIS40.1642.0100 Kübler Rotary Encoder | KIS40 Incremental Encoder – KMSPARE

Dimension Ø 40 mm Shaft type 6 mm shaft, with flat surface 8 mm shaft, with flat surface 1/4 " shaft, with flat surface Flange type Synchro flange / Servo flange Clamping flange Ø 40.00 mm Working temperature -20 °C ... +70 °C Protection level IP64 Connection types Axial cable Radial cable Max. rotational speed 4.500 min-1 Weight 170 g Electrical Scanning optical Resolution max. 2.500 ppr incremental Power supply 5 V DC 5...30 V DC 10...30 V DC Interfaces Gegentakt TTL / RS422 Open Collector
