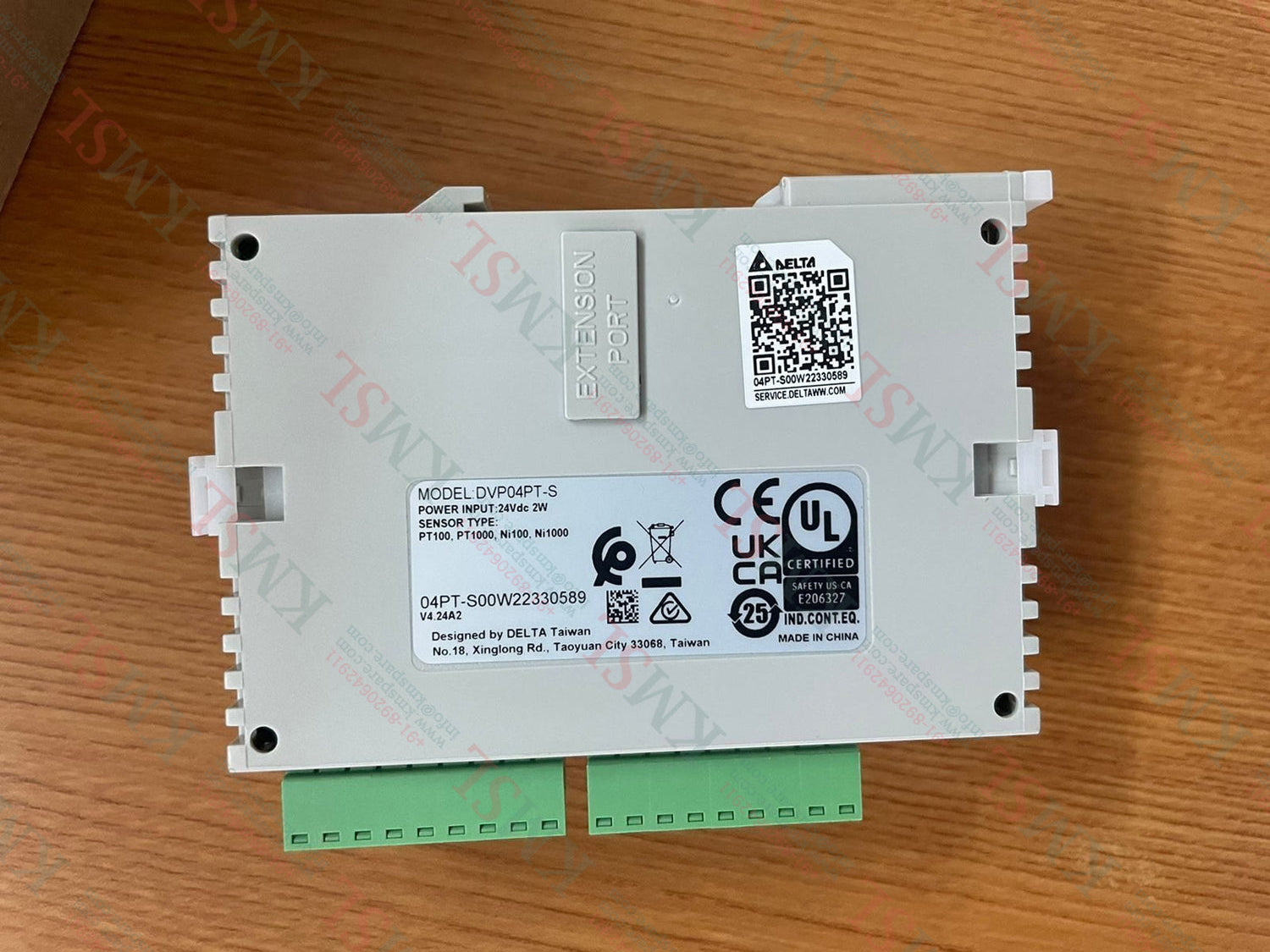

DVP04PT-S Delta PLC | Compact Programmable Logic Controller | KMSPARE

Mounting Type Panel Mount Output Type Analog Brand Delta Usage/Application Industrial Number of Inputs 14 Digits Degree of Protection IP64 Model No. DVP04PT-S Producr Type PLC Weight 1. 6 kg Response Time 200 ms Current 1 mA Power supply voltage 24 VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%) Analog output channel 4 channels/module Applicable sensor types 3-WIRE PT100 ? 3850 PPM/°C (DIN 43760 JIS C1604-1989) Current excitation 1mA Range of input temperature -200 ~ 600 -328 ~ 1112 Range of digital conversion K-2,000 ~ K6,000 K-3,280 ~ K11,120 Resolution 14 bits (0.1) 14 bits (0.18) Output impedance 0.5 ? or less Overall accuracy ±0.5% when in full scale (25°C, 77°F) ±1% when in full scale within the range of 0 ~ 55°C, 32 ~ 131°F Response time 200 ms × the number of channels Isolation Isolation between digital area and analog area. No isolation among channels. Digital data format 13 significant bits out of 16 bits are available; in 2's complement. Average function Yes; available for setting up in CR#2 ~ CR#5; range: K1 ~ K20
