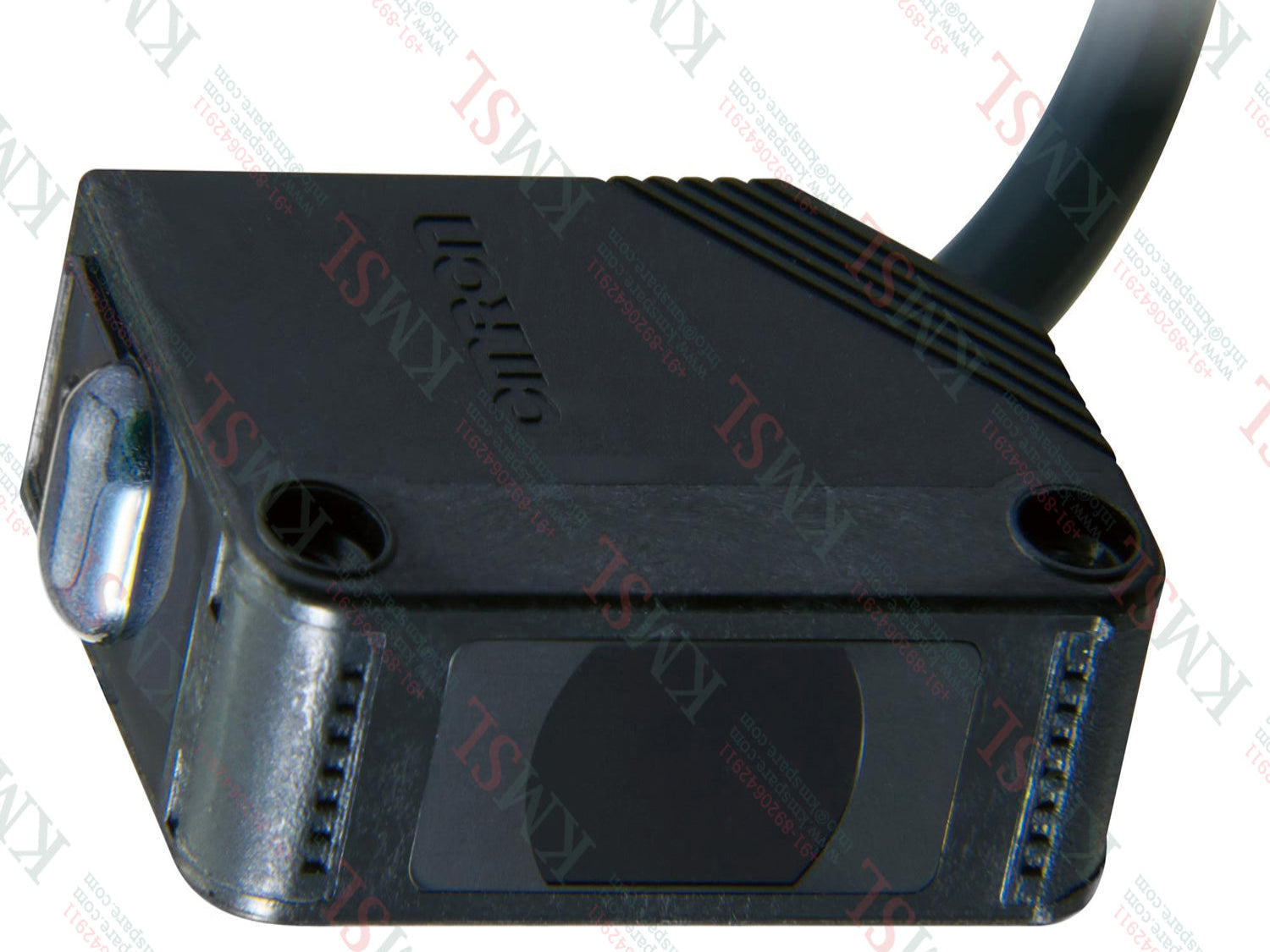

E3Z-T81 Omron Photoelectric Sensor | Original & New | KMSPARE

Sensing Mode Through Beam Material PBT Model No. E3Z-T81 Brand Omron Product Type Sensor Type Photoelectric Sensor Sensing distance 15 m Ambient temperature range (Operating) -25 to 55 C Ambient temperature range (Storage) -40 ...... 70 C Weight 120 g Shape Square type Sensing method Through-beam type Sensing distance 15 m Standard sensing object Opaque: 12 mm dia. min. Directional angle Emitter: 3 to 15 ° Receiver: 3 to 15 ° Light source Infrared LED (870 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption Emitter: 15 mA max. Receiver: 20 mA max. Control output PNP open collector 26.4 VDC max. 100 mA max. Residual voltage: 1 V max. (Load current Less than 10 mA) Residual voltage: 2 V max. (Load current 10 to 100 mA)
