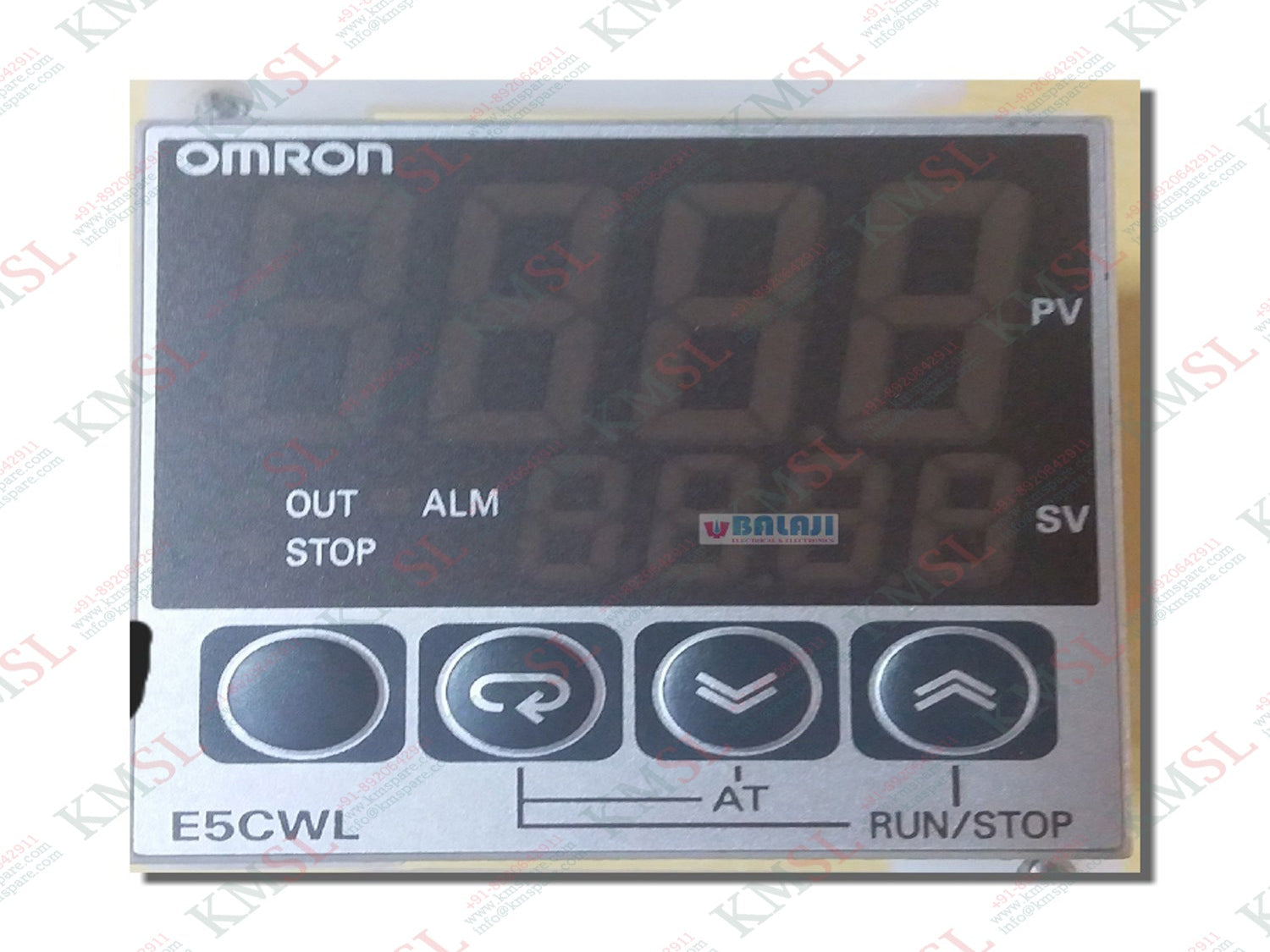

E5CWL-R1TC Omron Temperature Controller | Original & New | KMSPARE

Application Area For Plastic Industry Model No. E5CWL-R1TC Brand Omron Product type Temperature Controller Voltage 110 - 240 V Max Volatge 240 V Power consumption 3.5 Protection IP67 Power supply voltage 100 to 240 VAC, 50/60 Hz Operating voltage range 85% to 110% of rated supply voltage Power consumption 3.5 VA Sensor input Models with thermocouple inputs Thermocouple: K, J, T, R, or S Models with platinum resistance thermometer inputs Platinum resistance thermometer: Pt100 Control output Relay output SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum load: 5 V, 10 mA Voltage output (for driving SSR) Output voltage: 12 VDC +25%/-15% (PNP), max. load current: 21 mA, with short- circuit protection circuit Alarm output * SPST-NO, 250 VAC, 1 A (resistive load), electrical life: 100,000 operations, minimum load: 5 V, 10 mA Control method ON/OFF control or 2-PID control (with auto-tuning) Setting method Digital setting using front panel keys Indication method 7-segment digital display and individual indicators Character height: E5CSL: 21.7 mm, E5CWL: 16.2 mm (PV), E5EWL: 20 mm (PV) Other functions Temperature input shift, run/stop, protection functions, etc. Ambient operating temperature -10 to 55°C (with no icing or condensation) Ambient operating humidity 25% to 85% Storage temperature -25 to 65°C (with no icing or condensation)
