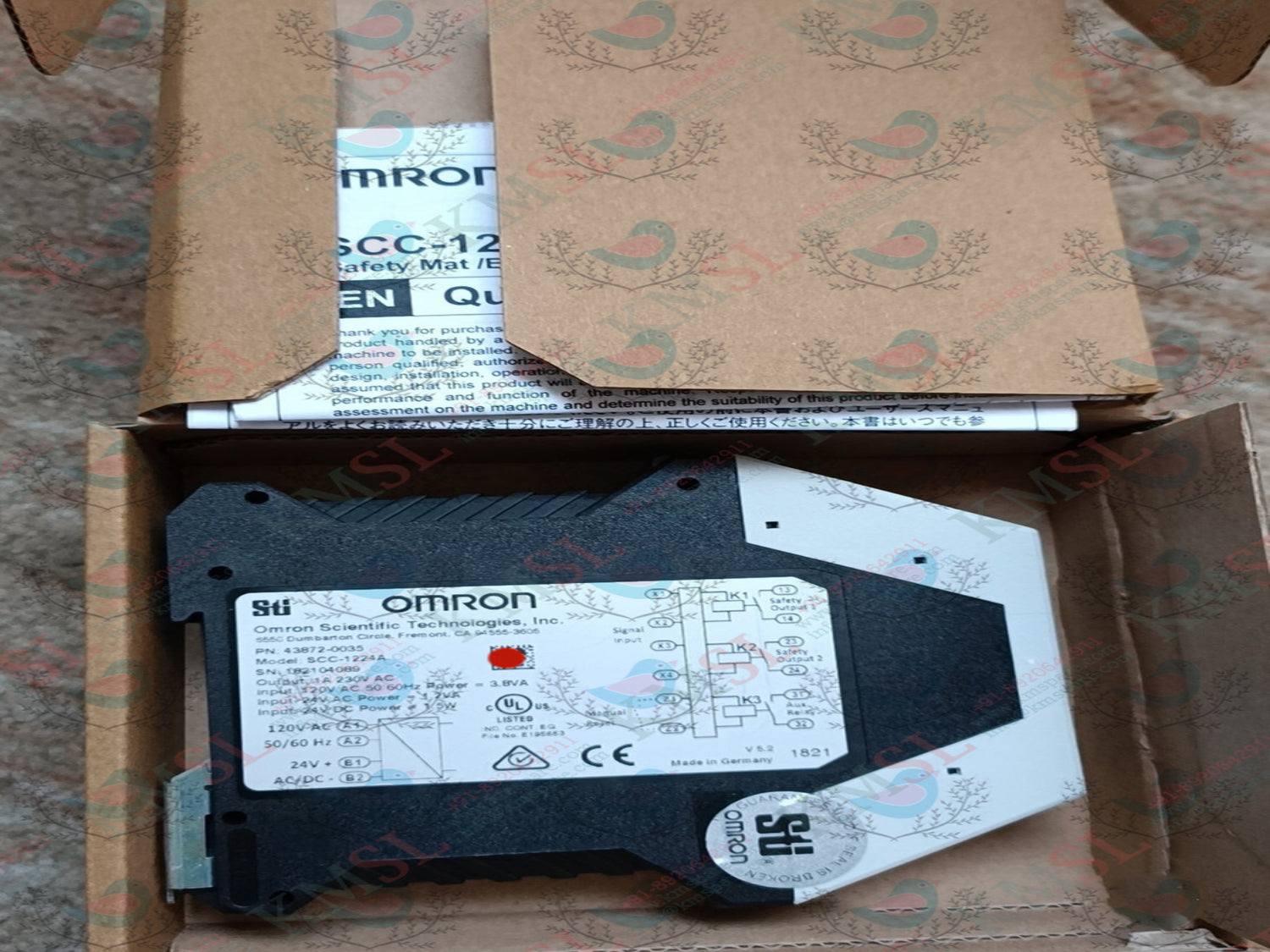

SCC-1224A Omron Safety Switch | Industrial Safety Interlock Switch – KMSPARE

SCC-1224A Plunger Type Safety Limit Switch – Reliable & Durable Performance for Industrial Applications

The SCC-1224A Plunger Type Safety Switch is a high-precision, industrial-grade device engineered for safety-critical applications. With its robust polyamide PA6.6 housing, compact design, and extended mechanical and electrical lifespan, it is the ideal choice for machinery, automation systems, and factory environments.

✅ Key Features:

• Model: SCC-1224A

• Switch Type: Plunger

• Rated Voltage: 240 VAC

• Operating Frequency: 50 / 60 Hz

• Ambient Operating Temperature: -25°C to +70°C

• Durability:

  • Mechanical Life: 1,000,000+ cycles

  • Electrical Life:

    • AC-15: 800,000 cycles (230 VAC, 1A)

    • DC-13: 250,000 cycles (24 VDC, 2A)

✅ Technical Specifications:

• Material: Flame-retardant Polyamide PA6.6 (UL 94-V2)

• Degree of Protection: IP20

• Protection Type: Class II (Protective Insulation)

• Pollution Degree: 2

• Overvoltage Category: III (IEC/EN 60664-1)

• Rated Insulation Voltage: 250 V

• Impulse Voltage Resistance: 4 kV

• Dielectric Strength: 1.5 kVAC

• Terminal Torque: 0.5 – 0.6 N•m

• Weight: Approx. 210 g

✅ Environmental Conditions:

• Operating Temperature Range: -20°C to 55°C (no icing or condensation)

• Humidity: 0% to 90% RH

✅ Safety & Compliance:

• Conforms to international standards including:

  • EN ISO 13856-2

  • EN ISO 13849-1:2015

  • EN 61000-6-2 / EN 61000-6-3

  • ANSI/UL 508

  • CSA C22.2 No.14

• PFHd: 6.5 × 10⁻⁹ (Nop 17,520)

• MTTFd: 195 years – ensuring long operational life and system reliability

Perfect for use in:

• Industrial automation

• Safety interlock systems

• Machine control panels

• Factory and processing equipment

Built to last and engineered for precision, the SCC-1224A is your go-to safety switch for demanding environments
