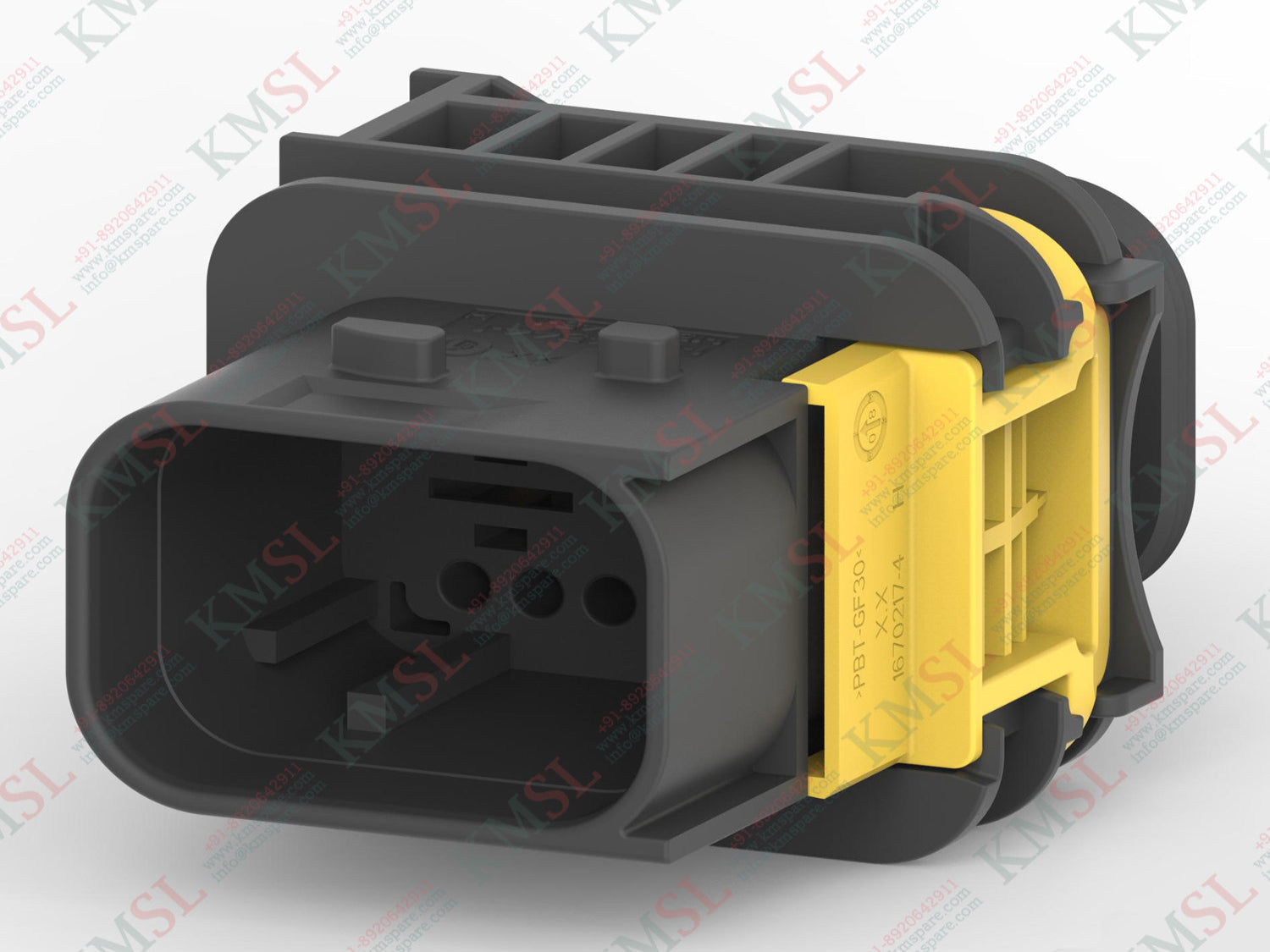

1-1564544-1 TE Connectivity Connector

Pole 2 Pole Pitch Size 2.5 mm Pin Type 2 Pin Voltage 24 V Usage/Application Data Current 1.5 A Color Black Product Type Features Connector System?: Wire-to-Wire Connector & Housing Type?: Housing for Male Terminals Sealable?: Yes Connector & Contact Terminates To?: Wire & Cable Primary Locking Feature?: On the Terminal Connector Shape?: Rectangular Mixed & Hybrid Connector?: No Configuration Features Number of Positions?: 2 Number of Rows?: 1 Housing Features Centerline (Pitch)?: 9?mm?[?.354?in?] Housing Material?: PBT GF30 Contact Features Mating Tab Width?: 5.8?mm?[?.228?in?] Contact Current Rating (Max)?(A): 40 Contact Type?: Tab Contact Size?: 5.8mm Body Features Primary Product Color?: Black Connector & Keying Code?: A Cable Exit Angle?: 90°, 180° Operation/Application Circuit Application?: Power Mechanical Attachment Connector Mounting Type?: Cable Mount (Free-Hanging) Mating Alignment?: With Mating Alignment Type?: Keyed Terminal Position Assurance?: No Strain Relief?: Add By Accessory Usage Conditions Operating Temperature (Max)?: 140?°C?[?284?°F?] Operating Temperature Range?: -40 – 140?°C?[?-40 – 284?°F?] Other Connector Position Assurance Capable?: No EU RoHS Compliance?: Compliant EU ELV Compliance?: Compliant Serviceable?: Yes Electrical Characteristics Operating Voltage?(VDC): 60 Dimensions Connector Height?: 27?mm?[?1.063?in?] Product Length?: 32.6?mm?[?1.283?in?] Product Width?: 50.6?mm?[?1.992?in?] Industry Standards UL Flammability Rating?: UL 94V-0 IP Rating?: IP67 Packaging Features Packaging Method?: Carton Packaging Quantity?: 320
