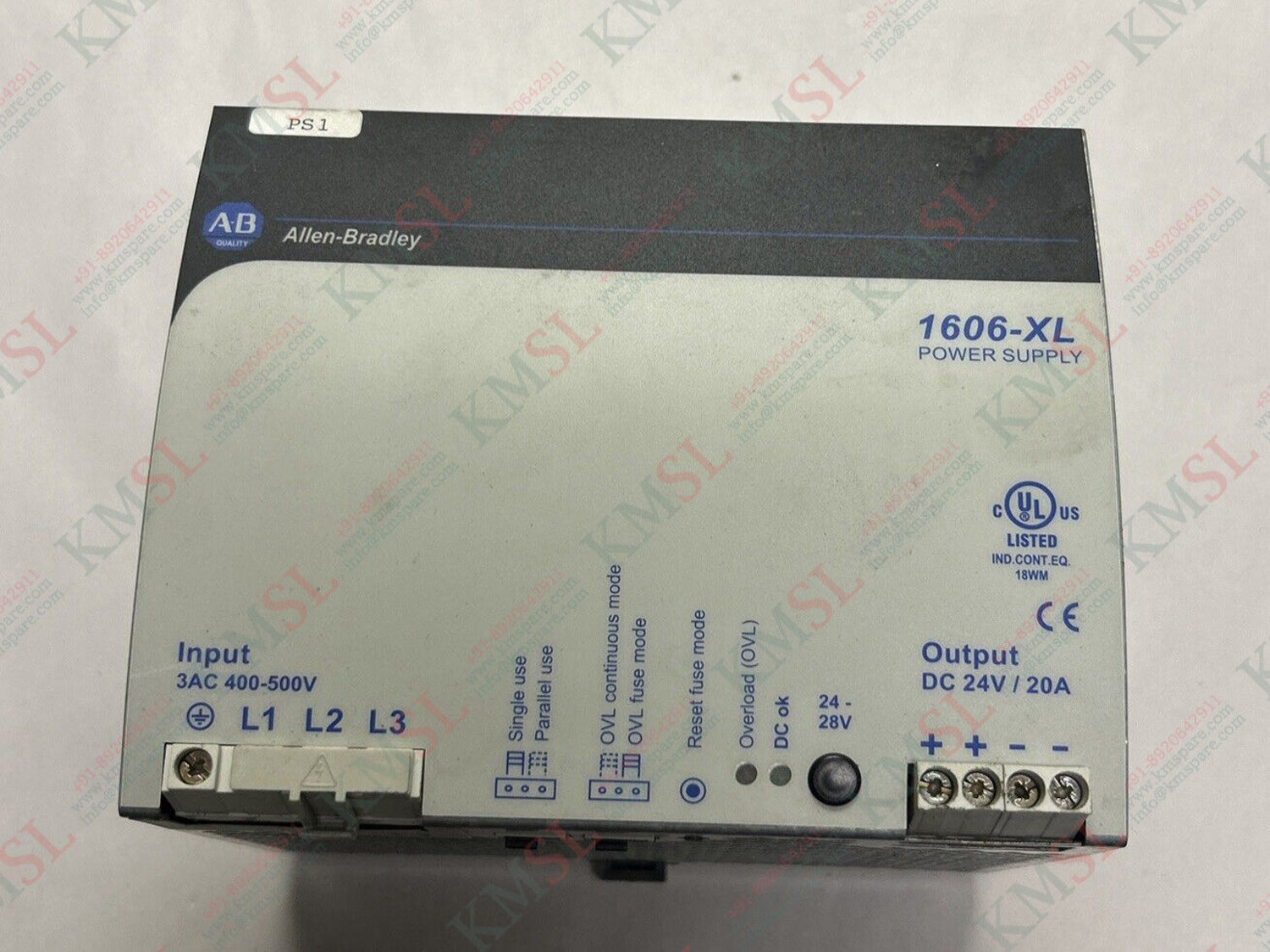

1606-XL480E-3W Allen Bradley Power Supply

Mounting Type Panel Mount Maximum Input-power 80 VA Output Type Analog Brand Allen Bradley Display Type LCD Usage/Application Industrial Number of Inputs 14 Digits Degree of Protection IP65 Accuracy 100 % Product Type Power Supply Model No. 1606-XL480E-3W Color Black This compact power supply unit is characterised by the variety of possibilities of application and low system costs. The fact that the external fuses are no longer necessary is an advantage as it saves cost and space. The switchable Fuse Mode and the extremely comprehensive approvals package including EN60204 make the XL480E-3W the unit of choice. At a competitive price, it also offers 25A power boost, output noise suppression, optional Single Mode or Parallel Mode, small dimensions, more than 500,000h MTBF as well as easy installation. The unit can be connected to European and American power supply networks without switching. Nominal Input voltage 3 AC 400...500V, ±15% 47...63Hz, suitable for IT power systems Rated tolerances • Continuous operat. AC 340...576V resp. DC 450...820V • Please ask for 'application notes' at operation with DC input voltage. Input current 3 x 1.5A Inrush current <2.5A eff. resp. <7Apk If you intend to protect the primary side of the power supply with fuses or circuit breakers, 6 A (x3) slow acting fuses (HBC) or supplementary protectors 1492- SP3C060 are recommended. In order to meet local requirements, please consult local codes and regulations for proper installation. 2-phase operation: Operation is possible even if one phase fails. With high ambient temperature or high load, Pout is adjusted downwards. The red LED is on. Also see Overload Behavior.
