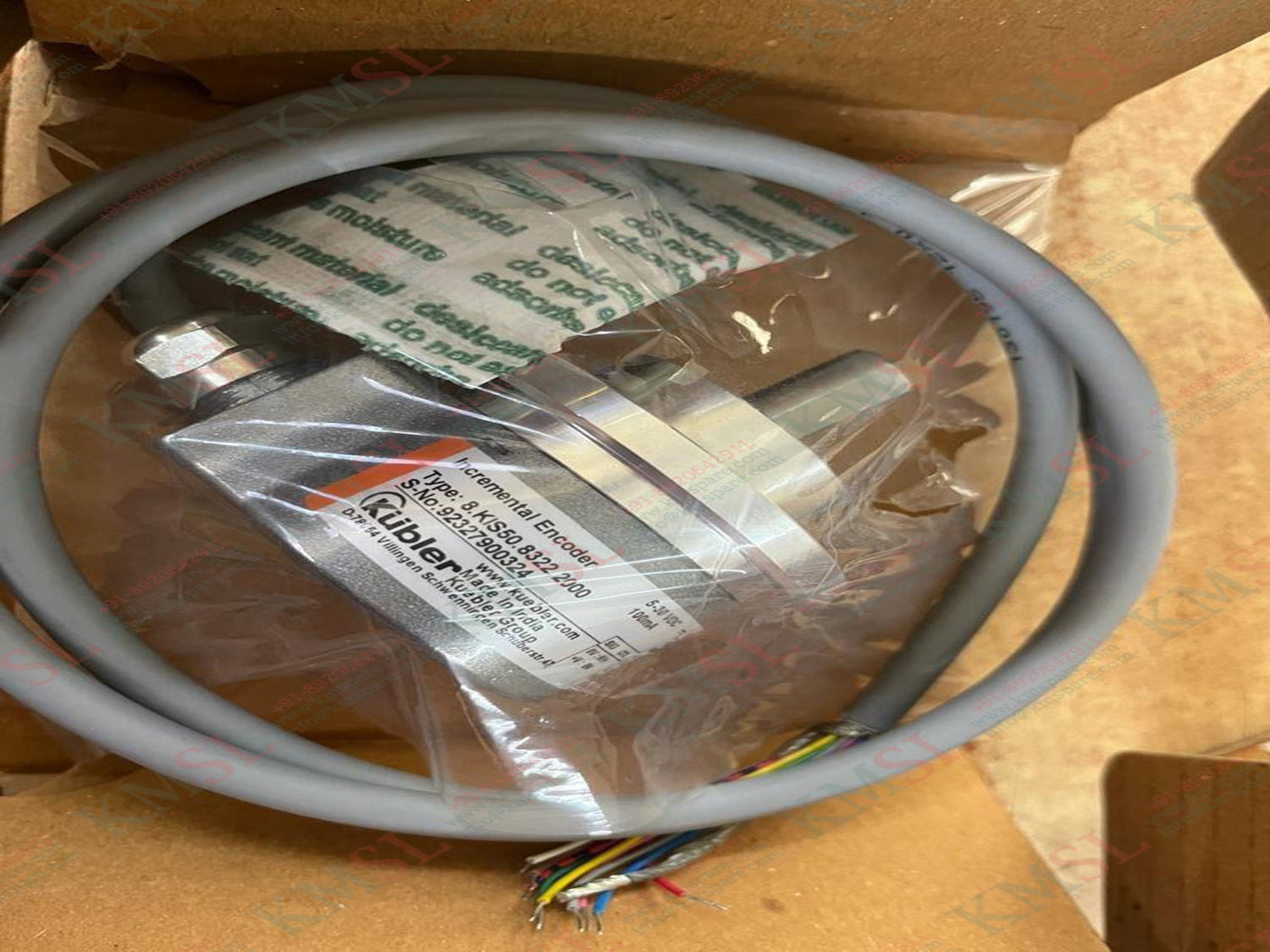

8.KIS50.8321.2000 Kubler Rotary Encoder

Material Stainless Steel Encoder Type Rotary Usage/Application Industrial Color Silver Power Supply Voltage 10 ......... 30 V Operating Temperature Range -10 ......... 50 C Storage Temperature Range -25 ...... 70 C Weight (packed state) 140 g Model No. 8.KIS50.8321.2000 Brand Kubler Product Type Rotary Encoder Max. rotational speed 6.0 min The Sendix KIS50 / KIH50 incremental standard encoders with optical sensors are designed for highest economic efficiency and are available up to a resolution of 5000 pulses per revolution. Special details from the sophisticated Sendix technology can be found in these encoders. This results in a high resistance to vibration and installation error. It sets new standards in cost-sensitive applications. They are ideal for standard applications and for use in simple machines. Mechanical Dimension Ø 58 mm Shaft type 6 mm shaft, with flat surface 8 mm shaft, with flat surface 10 mm shaft, with flat surface 12 mm shaft, with flat surface Flange type Synchro flange / Servo flange Clamping flange Ø 58.00 mm Working temperature -20 °C ... +70 °C Protection level IP65 Connection types Axial cable Radial cable M23 connector axial M23 connector radial M12 connector axial M12 connector radial
