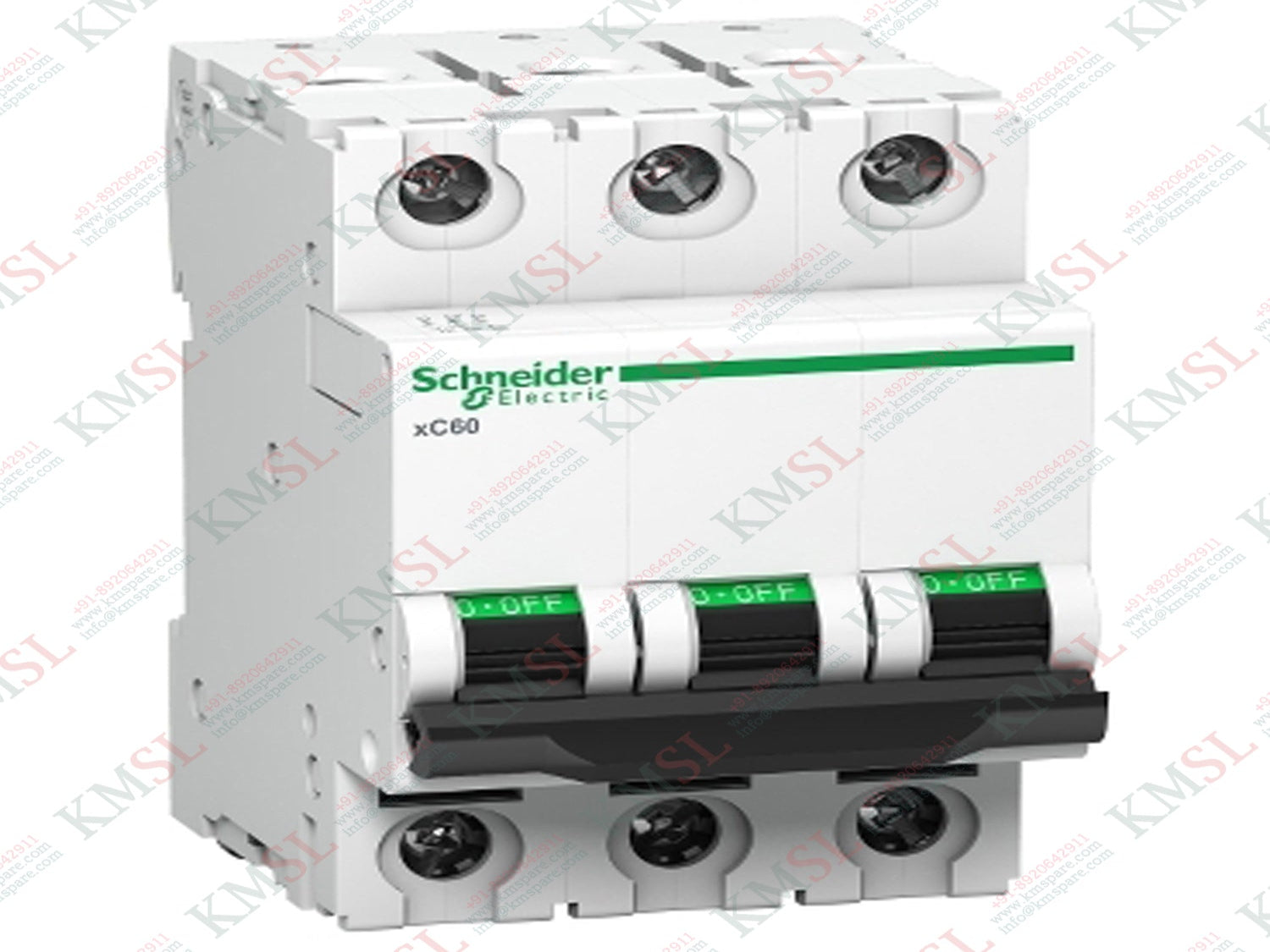

A9N3P16C Schneider Circuit Breaker

Number of Poles 3 Pole Rated Current 16A Curve Type C Curve Brand Schneider Model A9N3P16C Voltage 415VAC Range Acti9 Frequency 50Hz Size (W) 54mm x (H) 85mm x (D) 77.5mm Trip Unit Technology Thermal Magnetic Net Weight 0.31 kg Description: This Acti9 xC60 is a multistandard low voltage biconnect miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 16A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000 A at 415VAC conforming to EN/IEC 60898-1 standard and 10000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The presence of the green strip guarantees physical opening of the contacts. It allows operations to be performed on the downstream circuit in complete safety. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 20000 cycles. The Ue operational voltage is going from 240VAC. The Ui rated insulation voltage is 500VAC.
