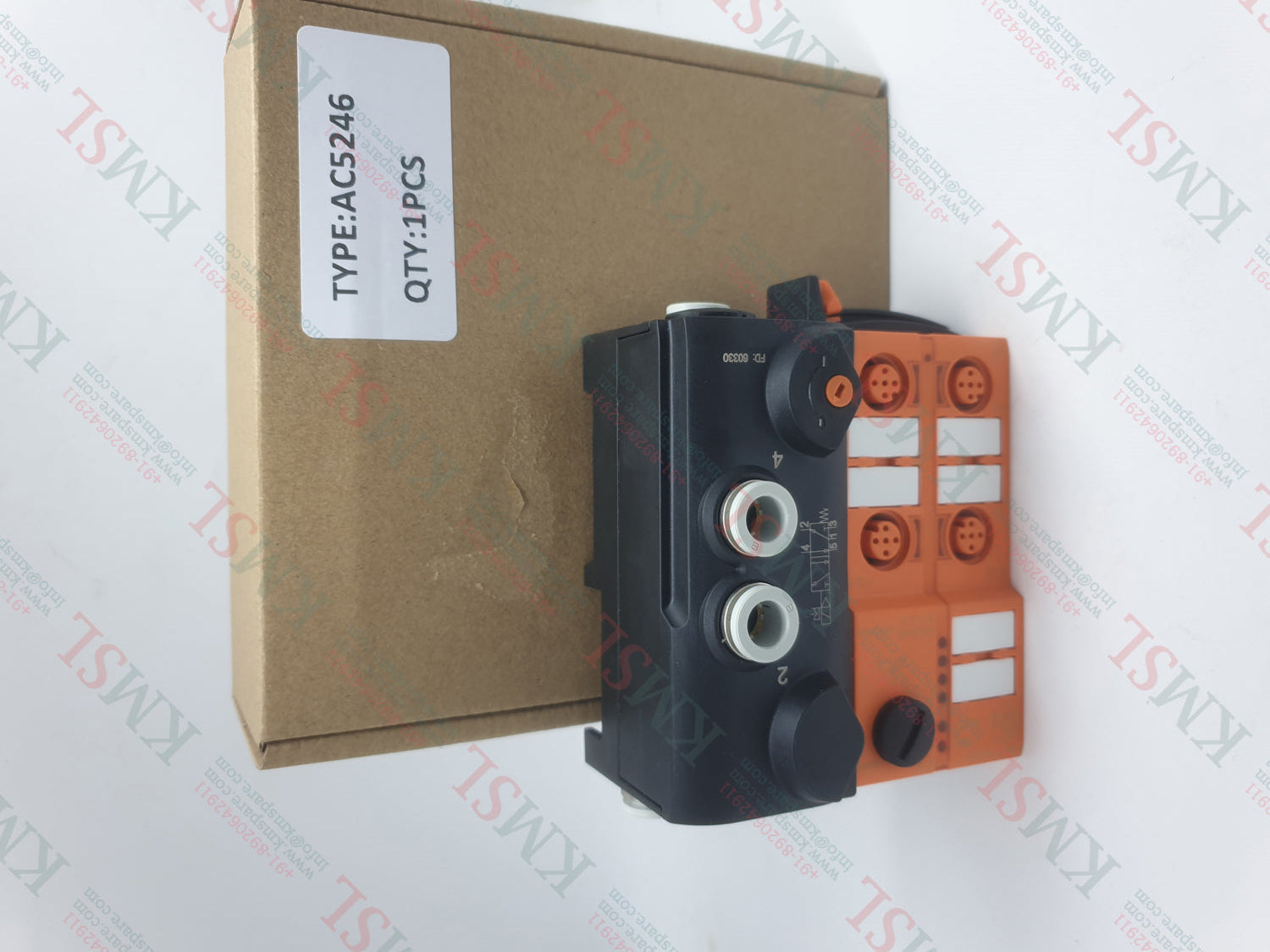

AC5246 IFM AS-Interface Airbox

Design housing for DIN rail mounting Application field installation Medium temperature[°C] -10...50 Electrical data Operating voltage[V] 26.5...31.6 DC Max. current consumption from AS-i[mA] 300 Integrated watchdog yes Inputs / outputs Number of inputs and outputs Number of digital inputs: 4; Number of pneumatic outputs: 1 Inputs Number of digital inputs 4 Input circuit of digital inputs PNP Sensor supply of the inputs AS-i Power supply[V] 20...30; (via flat cable) Max. total current rating of inputs[mA] 200 Input current High[mA] 6...10 Input current Low[mA] 0...2 Switching level high[V] > 11 Digital inputs protected against short circuits yes Outputs Number of pneumatic outputs 1; (pneumatic NO/NC selectable output ; monostable) Actuator supply outputs AS-i Operating conditions Ambient temperature[°C] -10...55 Protection IP 65; IP 67 Tests / approvals EMC EN 50295 IEC 61000-6-2 MTTF[years] 317 AS-i classification AS-i version 2.11; 3.0 AS-i addressing addressing socket Extended addressing mode yes AS-i master profile M2; M3; M4 AS-i profile S-7.A.E AS-i I/O configuration[hex] 7 AS-i ID code[hex] A.E Assignment of the data bits data bit D0 D1 D2 D3 input 1 2 3 4 socket I-1/2 I-1/2 I-2 I-3/4 I-3/4 I-4 pin 4 2 4 4 2 4 pneumatic output 4 - - - Mechanical data Weight[g] 365.5 Housing rectangular Type of mounting quick mounting; AS-i flat cables directly connectable; mounting on DIN rail; (TH35 (EN 60715)) Dimensions[mm] 108 x 85 x 50 Materials PA; POM; piercing contacts: CuSn6 nickel-plated and tin-plated Pneumatic system 1 x 5/2-way slide valve (free from overlapping) Operating pressure range 3...8 bar 0.3...0.8 MPa 43.5...116 psi Air flow at 6/5 bar[l/min] 500 Permissible compressed air non-lubricated compressed air class 6-3-1; lubricated compressed air class 6-3-4 Manual override pressing/releasing or pressing/turning/locking Tube fittings 8 mm Exhaust exhaust can be discharged through tube connection Displays / operating elements Display operation LED, green errors LED, red function LED, yellow Electrical connection Module connection Flat cables Accessories Items supplied lower part Accessories (optional) Mounting plate:, E74999 Module lower part:, E75000 Protective cap: M12, E73004 sealing plugs:, E75231 silencer:, E75232 Push-in L-fitting:, E75228 Push-in T-fitting:, E75227 Remarks Remarks If not pneumatically operated, E75231 sealing plug must be inserted. Avoid ingress of dirt and dust. Do not connect any of the following points to an external potential: L-, L+, I-1, I-2, I-3, I-4 The connections are electrically connected with the AS-i cable. Please see the notes on compressed air and EMC/ESD under "Downloads" Pack quantity 1 pcs. Electrical connection Connection quick mounting technology for AS-i flat cable: ; three orientations possible Connection Connector: M12
