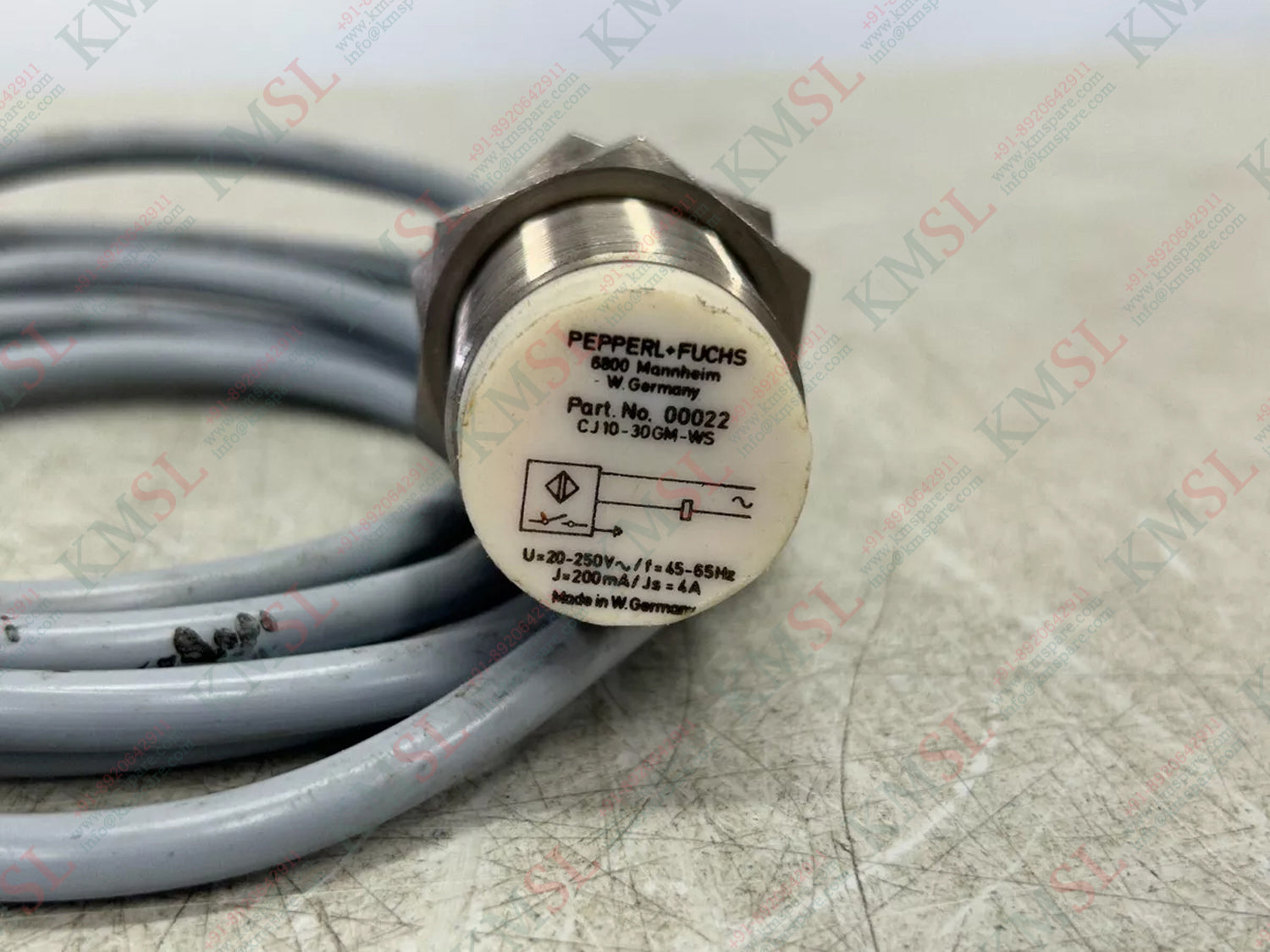

CJ10-30GM-WS P&F Capacitive Sensor

Sensor Type Capacitive Sensing Distance 15 mm Usage For Industrial Body Material Stainless Steel Brand P&F Model Name/Number CJ10-30GM-WS Usage/Application Industrial Material PBT Nominal Voltage 10 .... 30 V Power supply voltage 20 .... 253 V AC Protection circuits IP67 Accuracy 100 % Operating Frequency 10 Hz Power 15 mA Switching function Normally open (NO) Output type Two-wire Rated operating distance sn 10 mm Installation non-flush Output polarity AC Assured operating distance sa 0 ... 7.2 mm Output type 2-wire Nominal ratings Installation conditions A 0 mm B 0 mm C 30 mm F 50 mm Operating voltage UB 20 ... 253 V AC 1) Switching frequency f 0 ... 10 Hz Hysteresis H 2 ... 10 typ. 5 %
