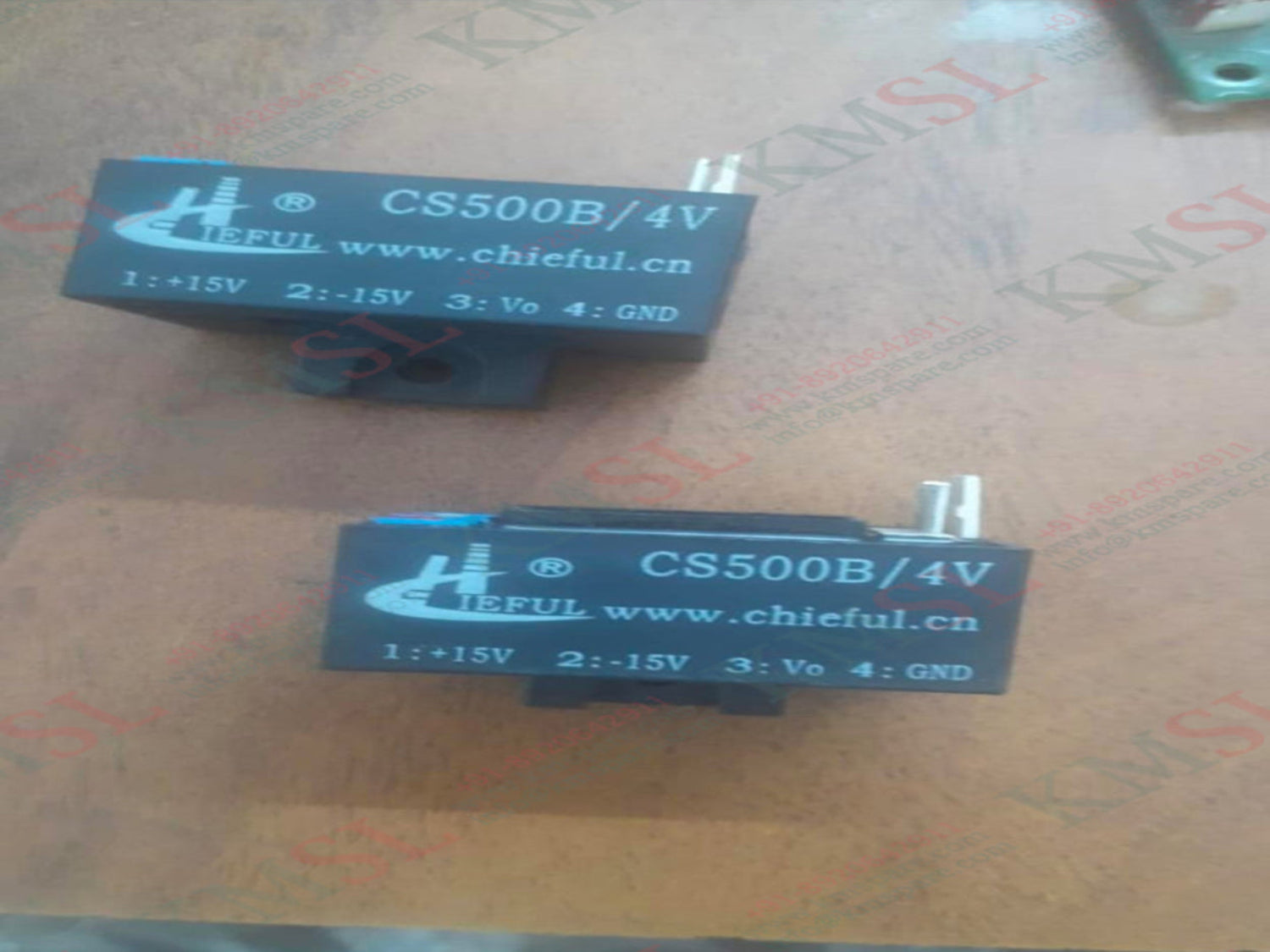

CS500B Hall Effect Current Sensor

Type Inductive Current Sensor Brand ZRis Model Number CS400B/4V Sensed Current Type DC part numbetr CS400B/4V type : Hall Effect Current Sensor color black Introduction: CS500B Series is a new generation of open-loop current sensor based on the principle of Hall effect. It is applicable for the measuring of DC, AC, pulse and complex waveform current with galvanic isolation. Electric Parameters: CS050B CS100B CS200B CS300B CS400B CS500B IPN Nominal Input Current 50 100 200 300 400 500 A IP Measurement Range of Input Current 100 200 400 600 700 700 A VSN Nominal Output Voltage 4 V VC Supply Voltage ±12?±15 DC V IC Current Consumption 20 mA
