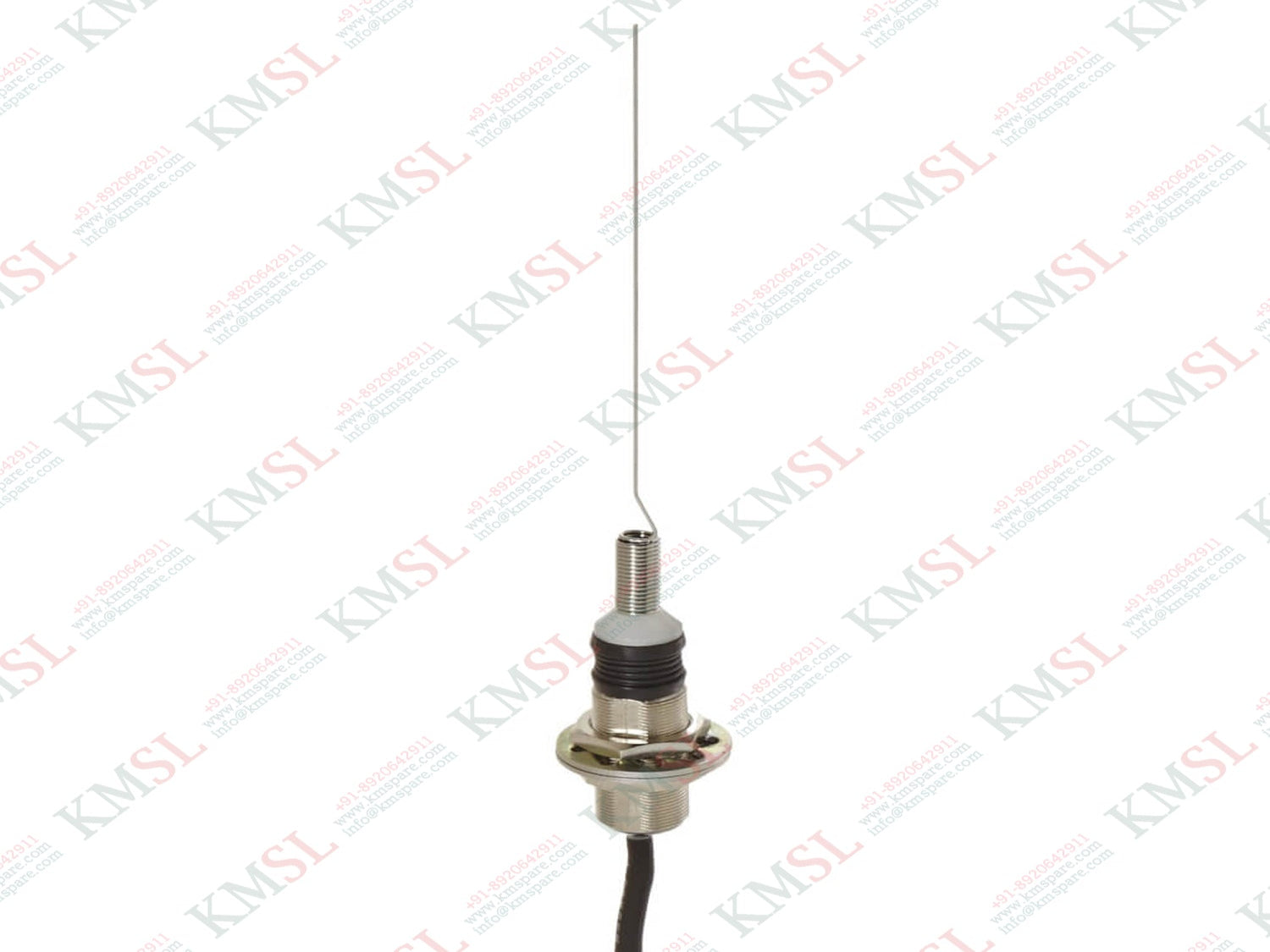

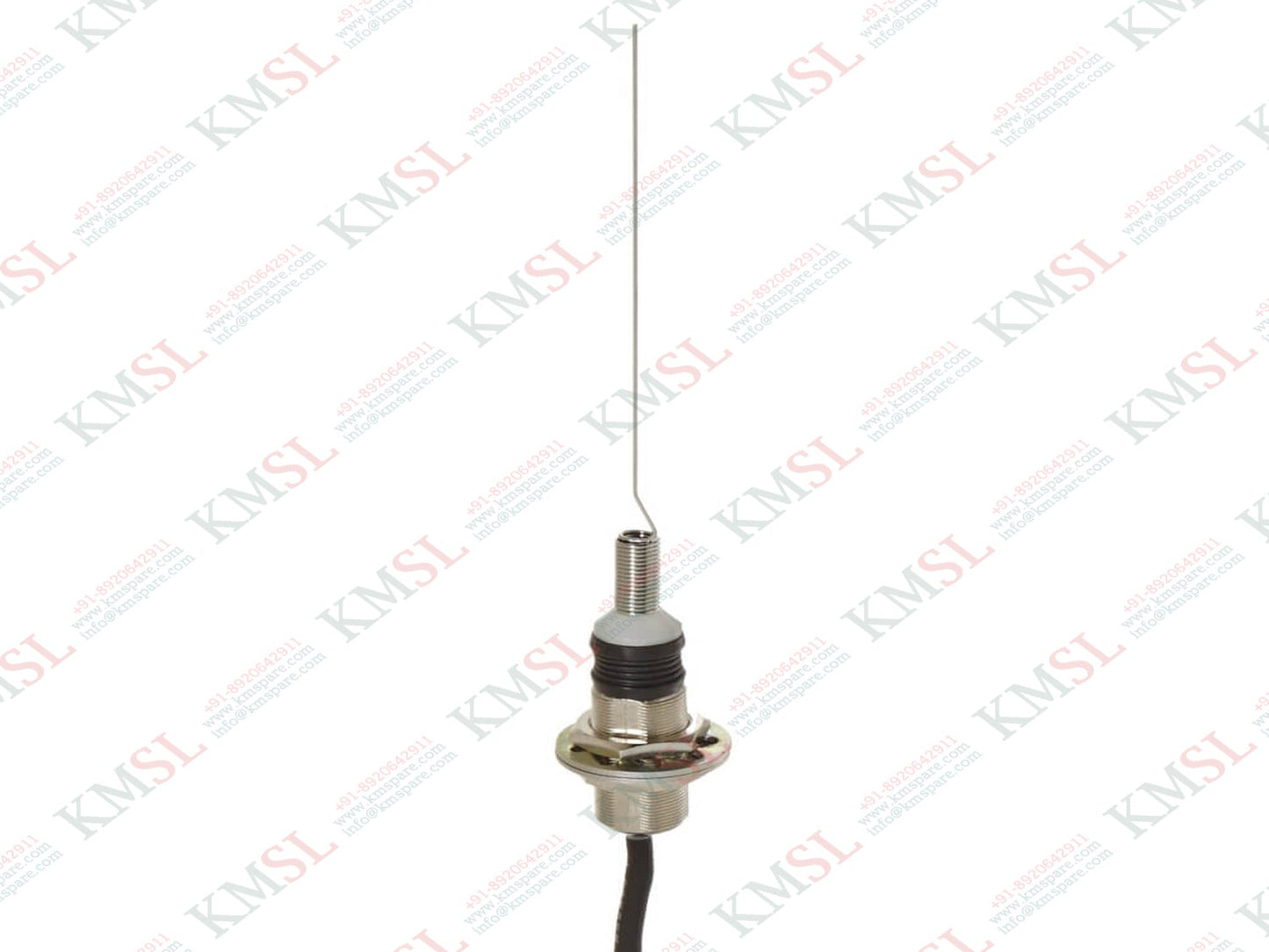

D5B-1515 OMRON Mechanical Touch Switch

Material Stainless Steel Mounting Options Top Mount Media Type Dry Material Meter Technology Differential Model Name/Number D5B-1515 Brand Omron Contact resistance 3.1 max protection IP 67 Frequency 50/60 Hz Contact form SPST-NC Actuator Wire spring Shape/Structure Touch switches (M10) Operating mechanism Slow action ctuator Wire spring 0.6 dia. Stainless steel wire Short spring Electrical ratings Resistive load: 1 mA at 5 VDC to 10 mA at 30 VDC (resistive load) Frequency 50/60 Hz Contact form SPST-NC Cable specifications Oil-resistant cable, 2 cores, 5 m Nominal sectional area: 0.08 mm2 Diameter: 3 dia. Ambient temperature Operating: -10 to 70 ? (with no icing) Ambient humidity 35 to 95 % Permissible operating speed 5 to 500 mm/s Permissible operating frequency Electrical: 60 operations / 1 min max. Mechanical: 120 operations / 1 minute max. Contact resistance (Initial value) 3.1 ? max. Insulation resistance Between each terminal and non-live-metallic part: 100 M? min. (at 250 VDC) Dielectric strength Between each terminal of the same polarities: 250 VAC 50/60Hz 1 min (TTP) Between each terminal and non-live-metallic part: 1,000 VAC 50/60 Hz 1 min Durability Electrical: 5,000,000 operations min. (30 mA at 30 VDC) Mechanical: 10 million operations min. Vibration resistance Malfunction: 16.7 Hz, 1-mm double amplitude Shock resistance Destruction: 1,000 m/s2 max. Malfunction: 50 m/s2 max. Degree of protection IP67 Operating Force (OF) X-Y direction: Standard value 0.05 N max. Pre-Travel (PT) X-Y direction: Reference value 14 mm Total Travel (TT) X-Y direction: Reference value 30 mm Permissible Operating Force Standard value 0.49 N max.
