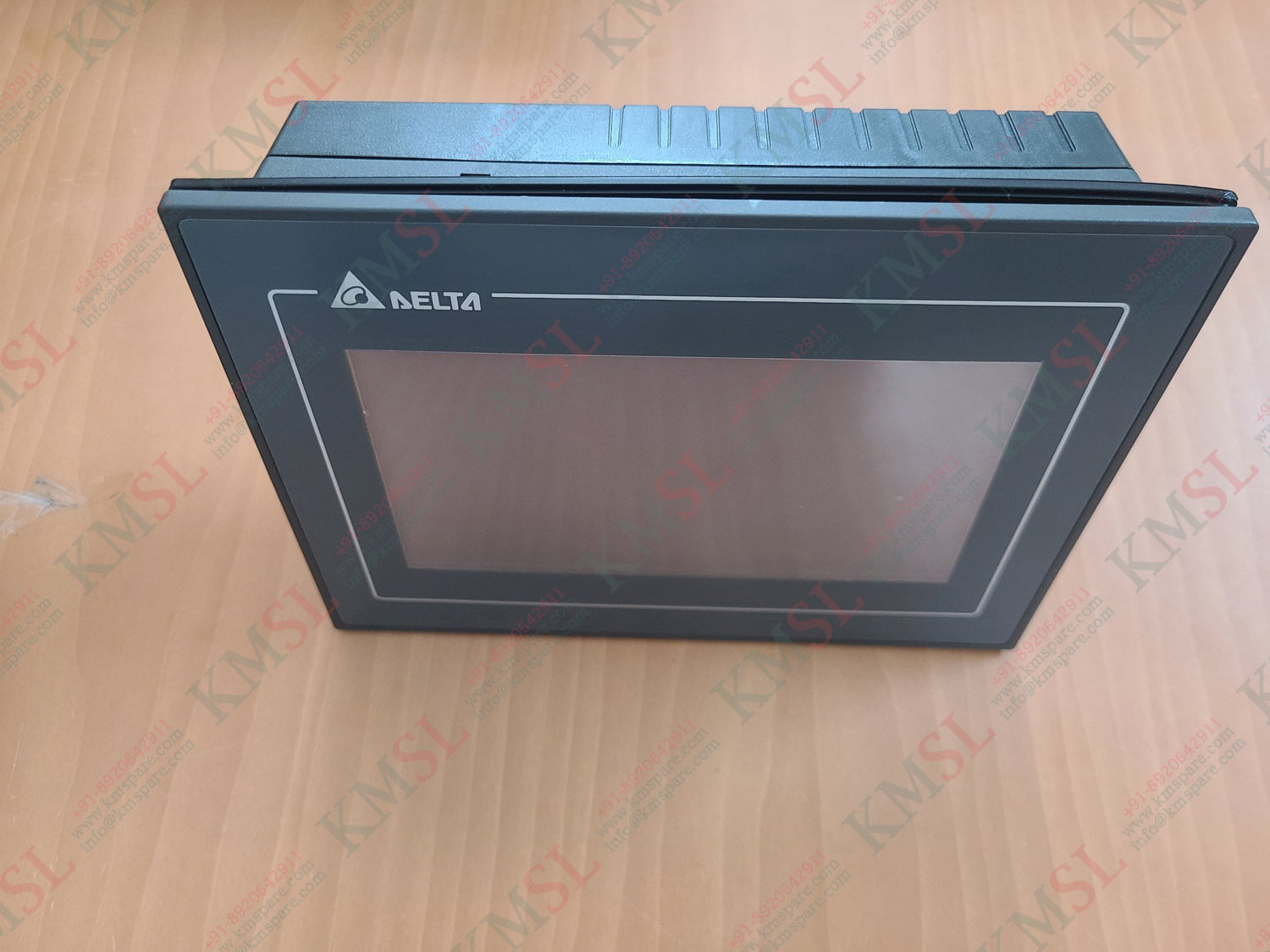

DOP-110IS Delta HMI

Mounting Type Panel Mount Screen size 12 inch Display Size 22 inch Phase Three Phase Resolution 1024 x 768 Pixels Control Type Touch Screen Dimensions (W) x (H) x (D) mm 272.6 x 200.6 x 54 Display Colors 65k Memory 1000 Dimension 261.3 x 189.3 Model No. DOP-110IS Brand Delta Product Type HMI Color Black Weight 1130 g Temperature -40 ....... 85 C The half-life of the backlight is defined as the maximum luminance being reduced by 50% when the maximum drive current is supplied to the HMI. The life of LED backlight shown here is estimated at the room temperature of 25°C (77°F) with ambient humidity. 2. The withstand voltage of the isolated power circuit is 1500V peak for 1 minute. 3. The HMI power consumption is the power consumed when the HMI is not connecting with other peripheral devices. To ensure normal operation of the HMI, the recommended capacity of the power supply is 1.5 to 2 times of the specified power consumption. 4. Isolated power supply is recommended. 5. For the programming software DOPSoft of DOP-100 series and its user manual, you can download them at 6. DOP-100 series can be used with other industrial automation equipment. Read through this sheet carefully and install the product according to the instructions to avoid danger
