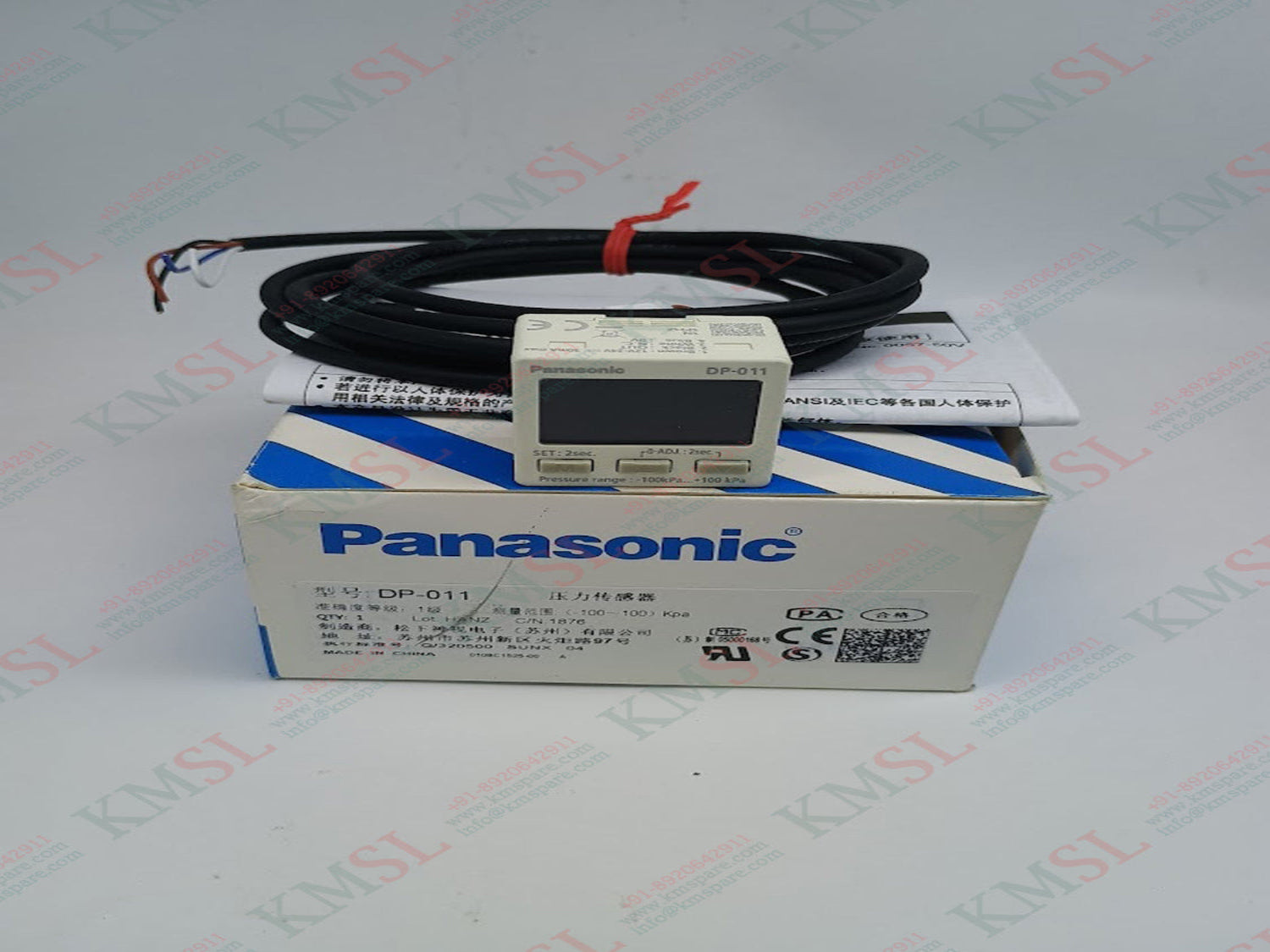

DP-011 Panasonic Digital Pressure Sensor

Suitable Media Gas Brand Panasonic Part Number DP-011 Pressure Range 10 Bar Accuracy 100 % Response Time 5 ms Output PNP Supply Voltage 10 ........ 24 V Interface I/O Link Housing Material Plastic Operating Temperature -40 to 105 Deg C IP Protection Class IP67 Model No. DP-011 Product Type Digital Pressure Sensor Color Black Weight 83 g ? This product has been developed / produced for industrial use only. ? The product shall be used only within the rated pressure range. ? Do not apply pressure exceeding the pressure resistance. Otherwise, destruction of diaphragm occurs, preventing the product to perform normal operation. ? Make sure that the power supply is OFF while performing the wiring operation. ? Verify that the supply voltage variation is within the rating. ? If power is supplied from a commercial switching regulator, ensure that the frame ground (F.G.) terminal of the power supply is connected to an actual ground. ? In case noise generating equipment (switching regulator, inverter motor, etc.) is used in the vicinity of this product, connect the frame ground (F.G.) terminal of the equipment to an actual ground. ? Do not use during the initial transient time (0.5 sec.) after the power supply is switched ON. ? When extending the cable, use a cable whose conductor cross-sectional area is 0.3mm2 or more. The cable can be extended to up to 10m in total length
