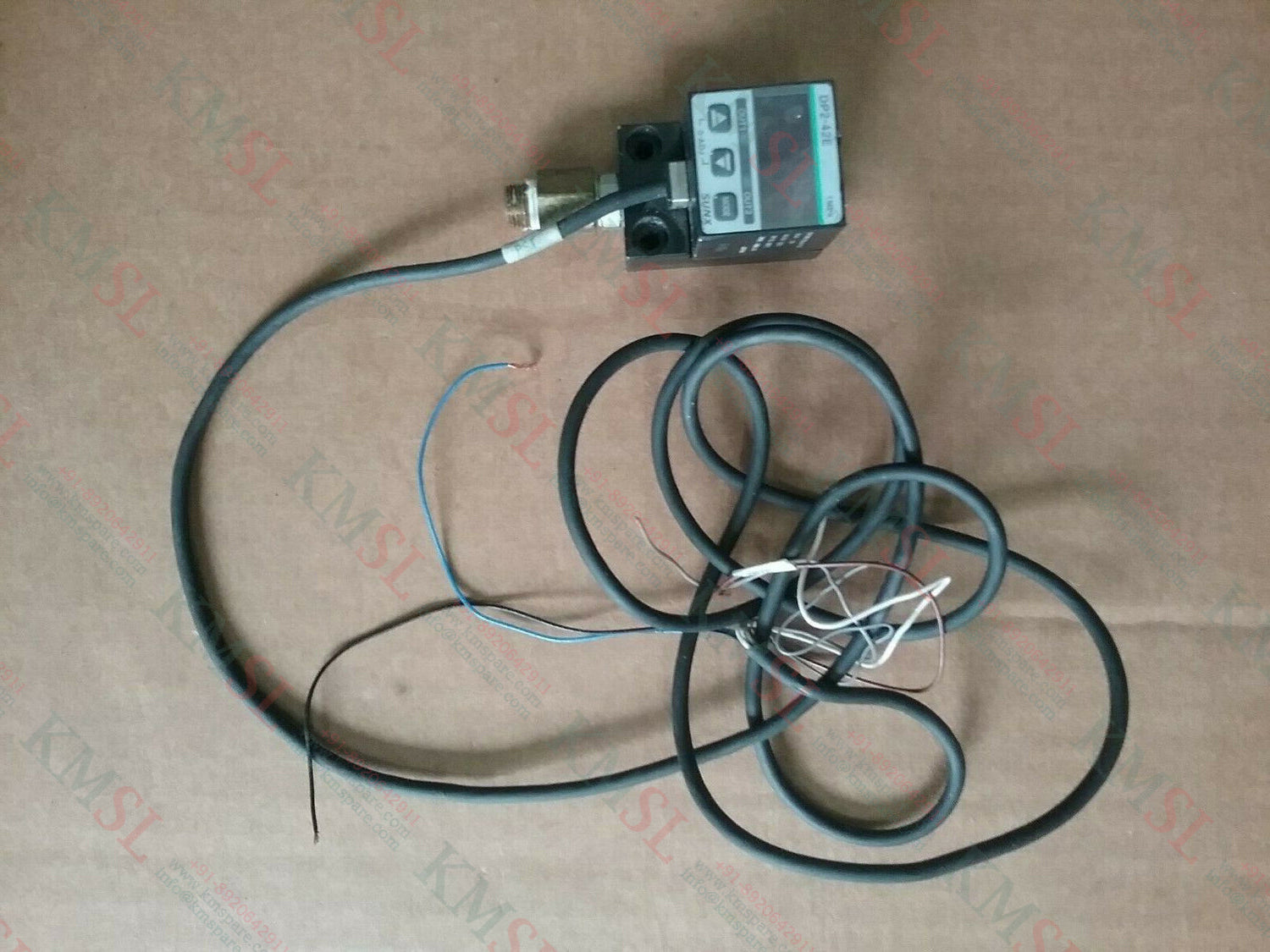

DP2-42E Panasonic Digital Pressure Sensor

Suitable Media Gas Pressure Range 101.3 Accuracy 100 % Response Time 10 ms Output PNP Supply Voltage 12 - 24 V Interface I/O Link Housing Material Plastic Operating Temperature -40 to 105 Deg C IP Protection Class IP67 Model No. DP2-42E Produc Type Digital Pressure Sensor Color Black Current 50 mA his product has been developed / produced for industrial use only. Use within the rated pressure range. Do not apply pressure exceeding the pressure withstandability value. The diaphragm will get damaged and correct operation shall not be maintained. Make sure to carry out the wiring in the power supply off condition. Take care that wrong wiring will damage the sensor. Verify that the supply voltage variation is within the rating. If power is supplied from a commercial switching regulator, ensure that the frame ground (F.G.) terminal of the power supply is connected to an actual ground. In case noise generating equipment (switching regulator, inverter motor, etc.) is used in the vicinity of this sensor, connect the frame ground (F.G.) terminal of the equipment to an actual ground ? ? ? ? ? ? ? ? Do not use during the initial transient time (0.5 sec.) after the power supply is switched on. Do not run the wires together with high-voltage lines or power lines or put them in the same raceway. This can cause malfunction due to induction. Avoid use of standard type, flat type and light weight type of sensor in places where steam and dust is excessive. Take care that the sensor does not come in contact with water, oil, grease, or organic solvents, such as, thinner, etc. Do not insert wires, etc, into the pressure port. The diaphragm will get damaged and correct operation shall not be maintained. Do not operate the keys with pointed or sharp objects. Make sure that stress by forcible bend or pulling is not applied directly to the sensor cable joint. Extension up to total 100m is possible with 0.3mm2, or more, cable. However, in case of using this product as a CE conformity product, the power wire connected to this product must be within 10m. DP2 series is designed for use with non-corrosive gas. It
