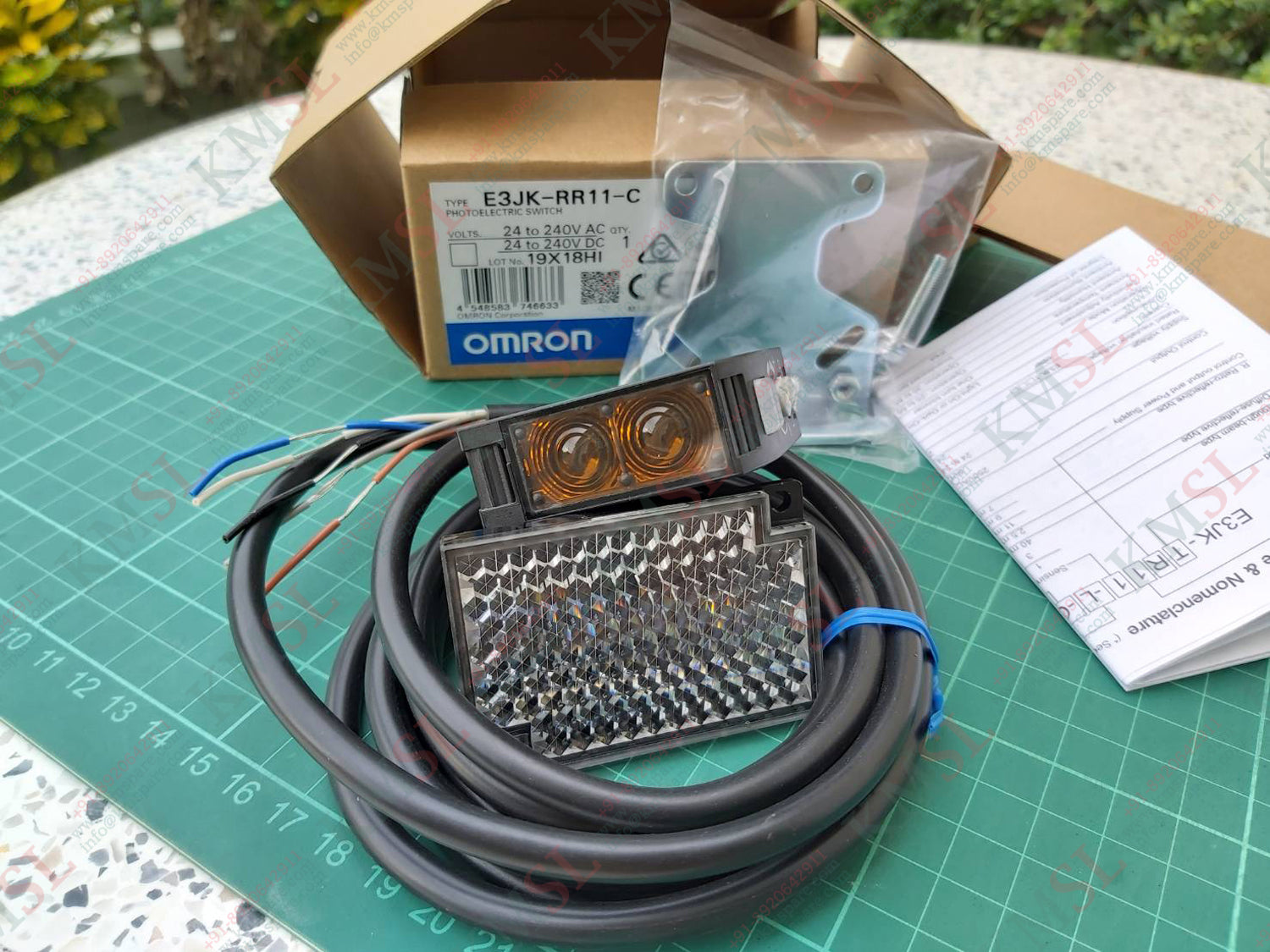

E3JK-RR11-C Omron Photoelectric Sensor

Material ABS Model No. E3JK-RR11-C Brand Omron Product Type Sensor Sensor type Photoelectric Sensor Accuracy 100 % Weight 180 g Ambient temperature range (Operating) -25 ............. +55 C mbient temperature range (Storage) -40 ........... +70 C Protection IP64 Sensing distance 11 m E3JK-RR11-C Omron Photoelectric sensor Shape Square type Sensing method Retro-reflective without M.S.R. function Sensing distance When using the E39-R1: 100 mm to 7 m When using the E39-R2: 100 mm to 11 m Standard sensing object Opaque: 75 mm dia. min. (When using the E39-R1) Opaque: 100 mm dia. min. (When using the E39-R2) Directional angle 1.5 ° min. Light source Red LED (624 nm) Power supply voltage 24 to 240 VAC±10% 50/60 Hz 24 to 240 VDC±10% ripple (p-p) 10% max. Power consumption 2 W max. Control output Relay output (SPDT) 250 VAC 3 A (cos?= 1) max. 5 VDC 10 mA min.
