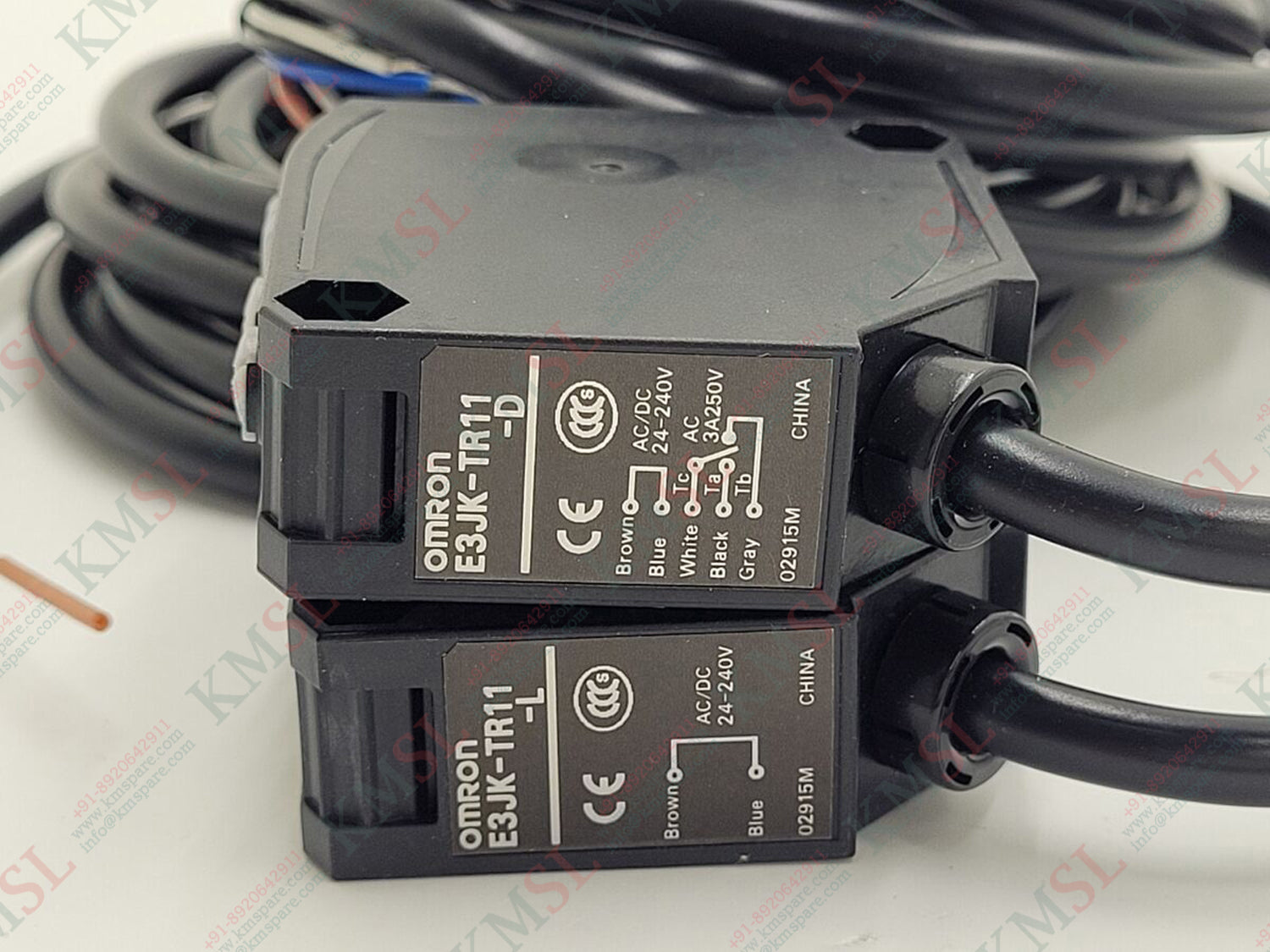

E3JK-TR11 Omron Photoelectric Sensor

Sensing Mode Through Beam Material PVC Model No. E3JK-TR11 Brand Omron Product type Sensor Sensor type Photoelectric Sensor Current 10 mA Weight 350 g Sensing distance 40 m Shape Square type Sensing method Through-beam type Sensing distance 40 m Standard sensing object Opaque: 17 mm dia. min. Directional angle Emitter: 3 ° min. Receiver: 3 ° min. Light source Red LED (624 nm) Power supply voltage 24 to 240 VAC±10% 50/60 Hz 24 to 240 VDC±10% ripple (p-p) 10% max. Power consumption Emitter and Receiver: 3 W max. Control output Relay output (SPDT) 250 VAC 3 A (cos?= 1) max. 5 VDC 10 mA min.
