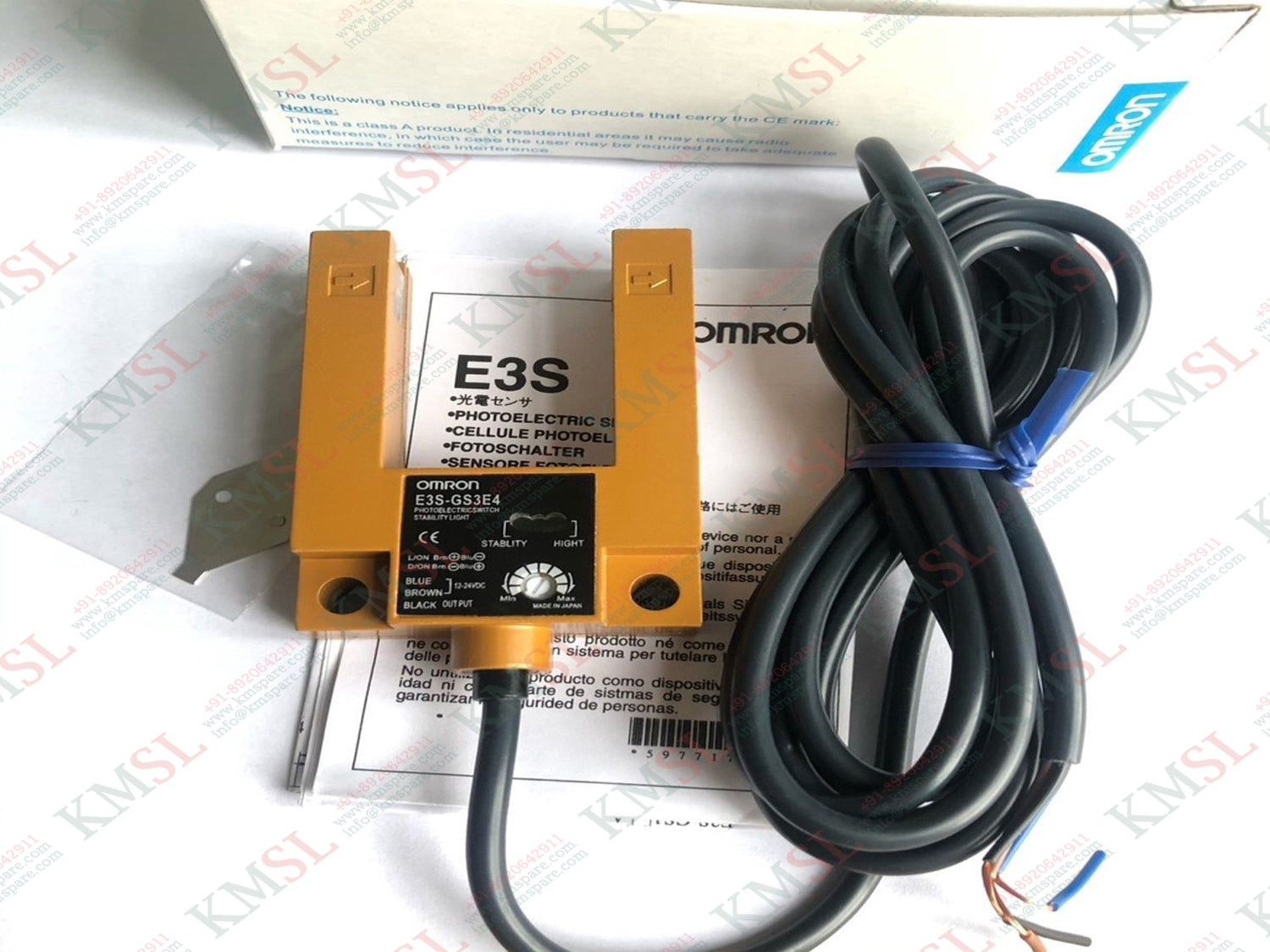

E3S-GS3E4 Omron Photoelectric Sensor

Sensing Mode Through Beam Material PBT Model No. E3S-GS3E4 Brand Omron Product type Sensor Sensor Type Photoelectric Sensor Weight 65 -330 g Vibration resistance (destruction) 10 - 50 Hz Sensing distance 30 mm Color Yelow Temperature -40 ....... 75 C Sensing method Grooved-type Model E3S-GS3E4 Sensing distance 30 mm Standard sensing object Opaque, 6-mm dia. min. Minimum detectable object 3-mm dia. min. (black mark on transparent sheet) Light source (wavelength) Infrared LED (940 nm) Power supply voltage 12 to 24 VDC ±10%, ripple (p-p): 10% max. Current consumption 40 mA max. Control output Load power supply voltage: 24 VDC max., Load current: 80 mA max. (residual voltage: 2 V max.); NPN voltage output; Light-ON/Dark-ON mode selector Protection circuits Power supply reverse polarity, Output short-circuit protection Response time Operate or reset: 1 ms max. Sensitivity adjustment One-turn adjuster Ambient illumination (Receiver side) Incandescent lamp: 3,000 lx max. Sunlight: 10,000 lx max. Ambient temperature Operating: - 25 to 55 °C (with no icing or condensation) Storage: - 40 to 70 °C (with no icing or condensation) Ambient humidity Operating: 35% to 85% (with no condensation) Storage: 35% to 95% (with no condensation) Insulation resistance 20 M? min. (at 500 VDC)
