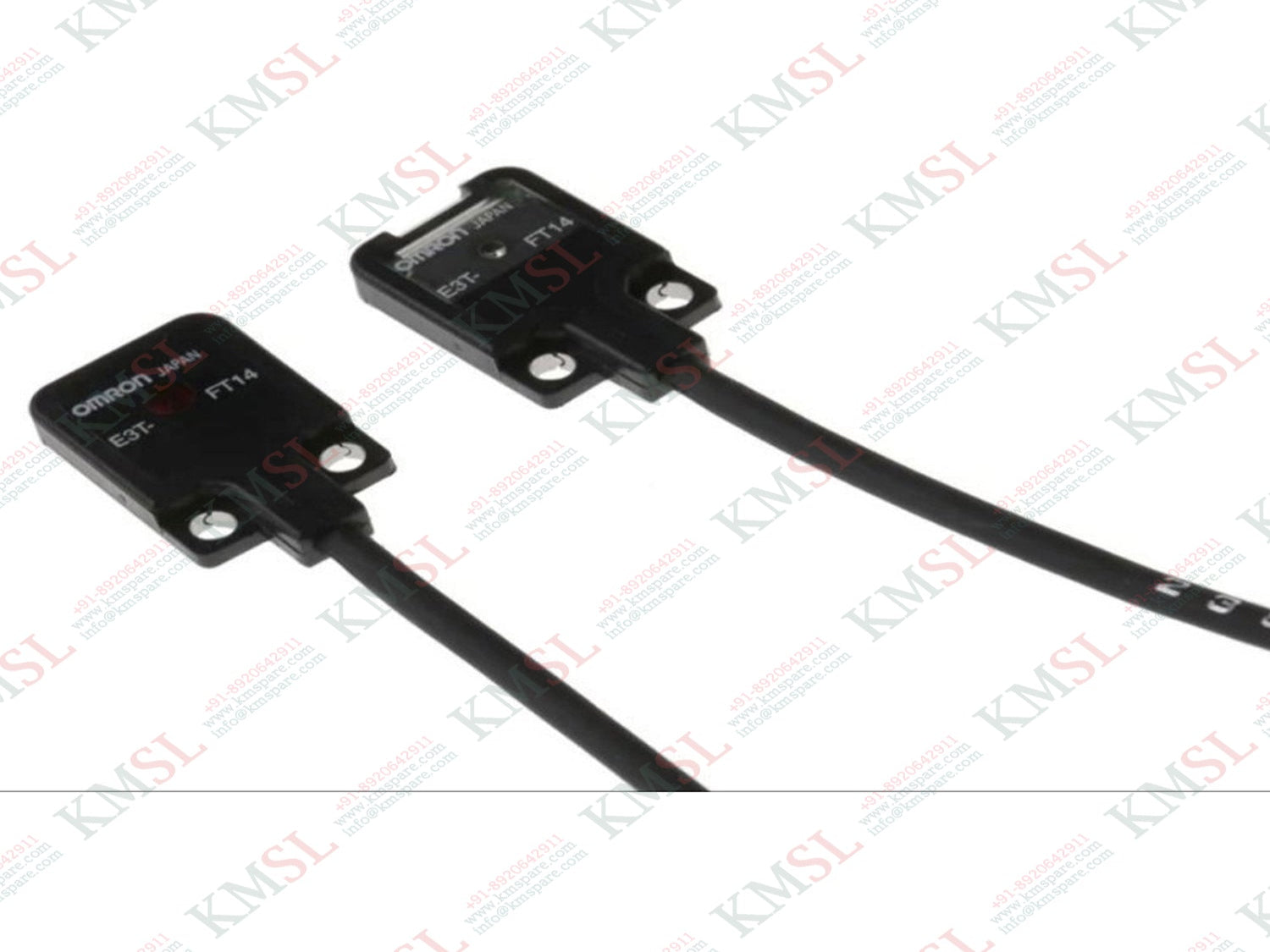

E3T-FT14 Omron Photoelectric sensor

Material PBT Model No. E3T-FT14 Brand Omron Product Type Sensor Weight 40 g Control Output PNP Sensing distance 500 mm Current 50 mA Voltage 12 - 24 V Ambient temperature range -25 .......... +55 C Shape Square type Sensing method Limited Reflective Sensing distance White paper 50 x 50 mm: 5 to 15 mm Minimum sensing object 0.15 mm min. dia. (sensing distance: 10 mm) Differential distance 2 mm max. Light source Red LED (650 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption 20 mA max. Control output NPN open collector 26.4 VDC max. 50 mA max. Residual voltage: 1 V max. (Load current Less than 10 mA) Residual voltage: 2 V max. (Load current 10 to 50 mA)
