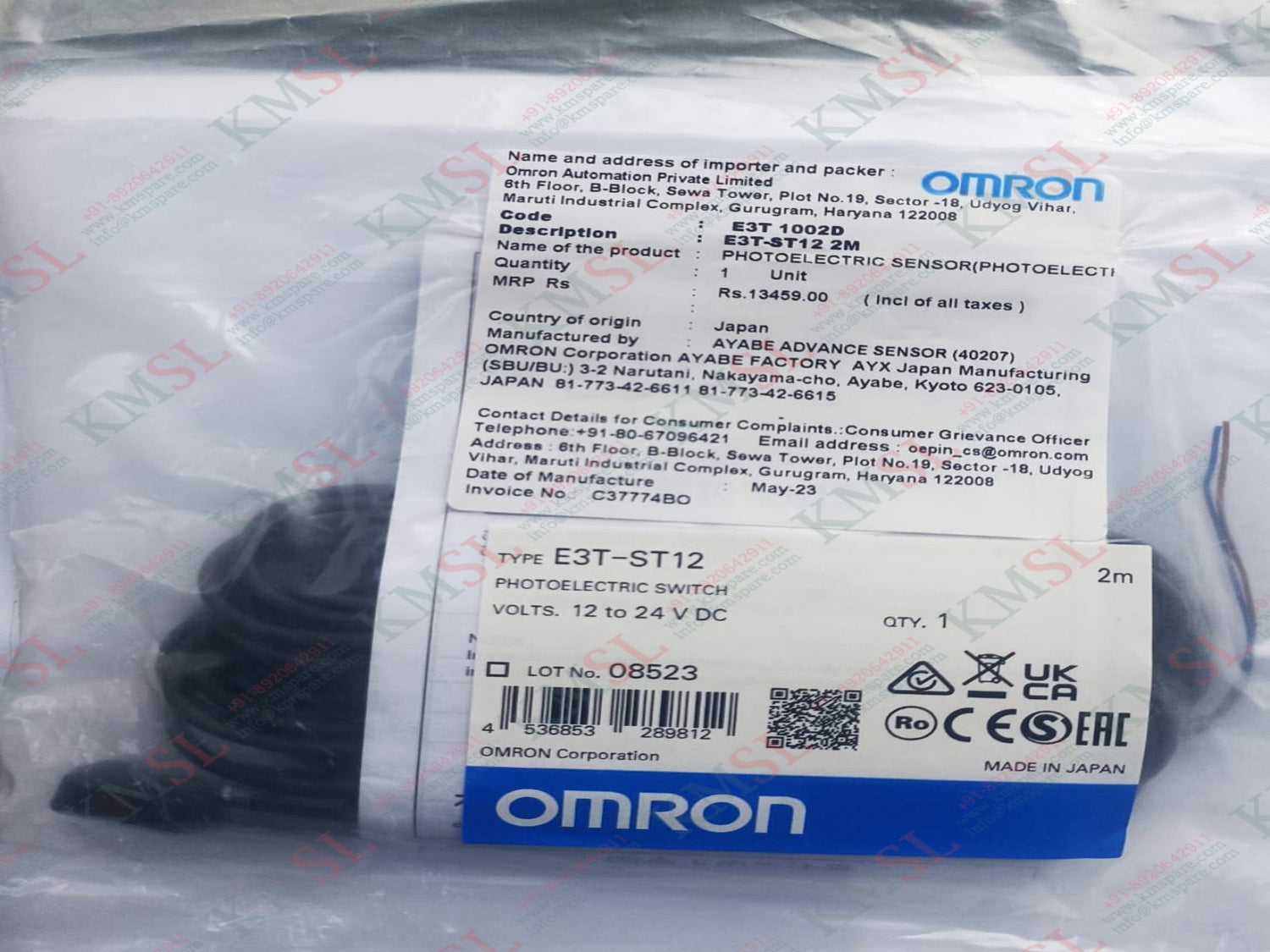

E3T-ST12 Omron Photoelectric Sensor

Material PBT Sensing Mode Through Beam Model No. E3T-ST12 Brand Omron Product type Photoelectric Sensor Weight 40 g Temperature -40 ....... 70 C Voltage 12 -24 V Sensing Distance 1 m Shape Square type Sensing method Through-beam type Sensing distance 1 m Standard sensing object Opaque, 2 mm dia. min. Minimum sensing object 2 mm min. dia. (Opaque) Directional angle Emitter: 2 to 20 ° Receiver: 2 to 70 ° Light source Red LED (650 nm) Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max. Current consumption Emitter: 10 mA max. Receiver: 20 mA max. Control output NPN open collector 26.4 VDC max. 50 mA max.
