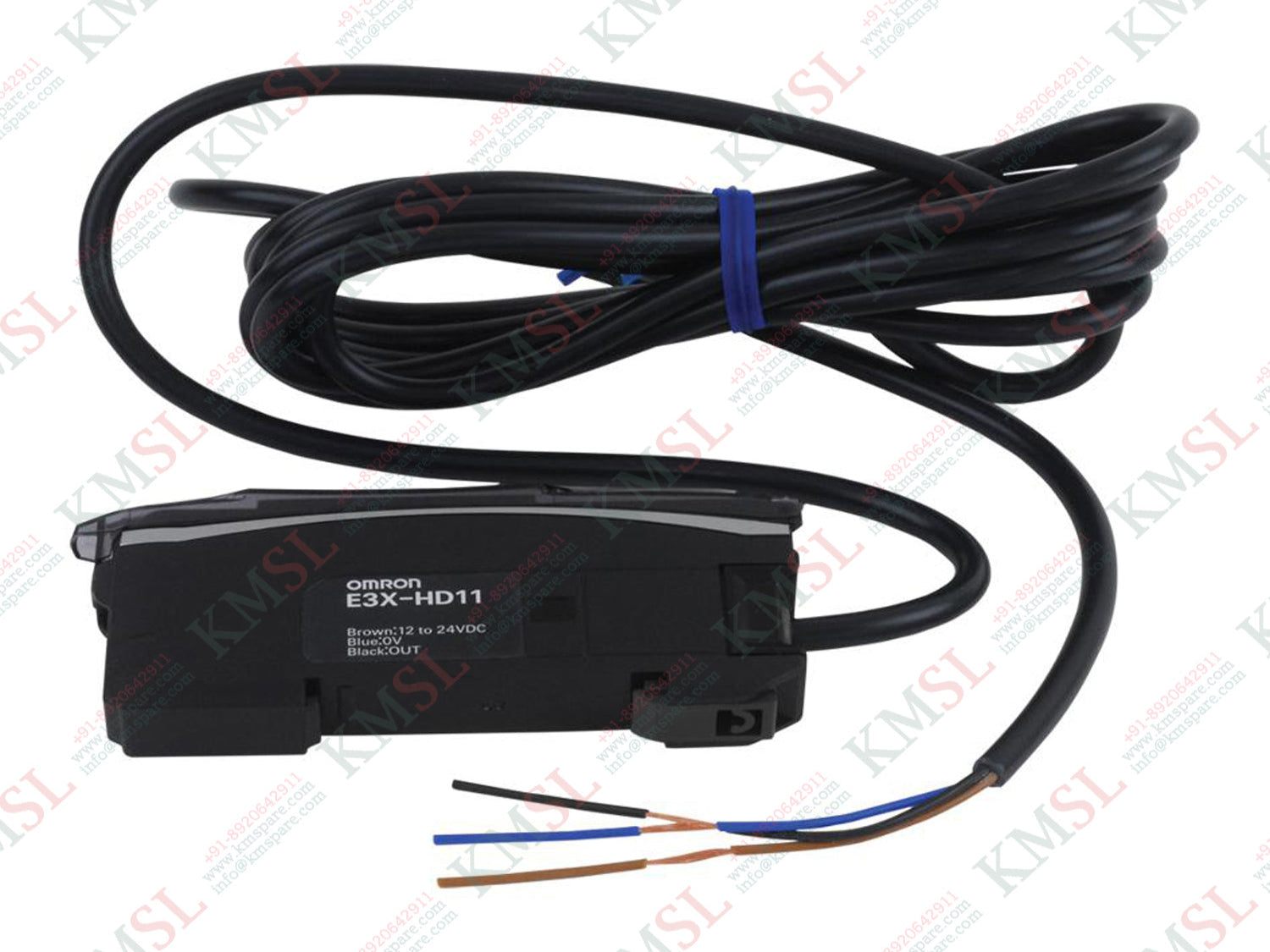

E3X-HD11 Omron Smart Fiber Sensor

Material PBT Sensing Mode Through Beam Model No. E3X-HD11 Brand Omron Product Type Sensor Sensor Type Smart Fiber Sensor Control output 10 mA Weight 105 g Cable PVC Type Standard Model for Sensor Communications Unit *1 NPN output E3X-HD11 E3X-HD6 E3X-HD14 E3X-HD0 PNP output E3X-HD41 E3X-HD8 E3X-HD44 Connecting method Pre-wired Wire-saving Connector *2 M8 connector Communications Unit connector Light source (wavelength) Red, 4-element LED (625 nm) Power supply voltage 12 to 24 VDC ±10%, ripple (P-P) 10% max. Supplied from the connector through the Sensor Communications Unit Power consump tion Normal mode 720 mW max. (Current consumption: 30 mA max. at 24 VDC, 60 mA max. at 12 VDC) Eco ON 530 mW max. (Current consumption: 22 mA max. at 24 VDC, 44 mA max. at 12 VDC) Eco LO 640 mW max. (Current consumption: 26 mA max. at 24 VDC, 53 mA max.at 12 VDC) - Control output Load power supply voltage: 26.4 VDC max., open- collector output Load current: Groups of 1 to 3 Amplifier Units: 100mA max., Groups of 4 to 16 Amplifier Units: 20mA max. Residual voltage: At load current of less than 10 mA: 1 V max., At load current of 10 to 100 mA: 2 V max. OFF current: 0.1 mA max.
