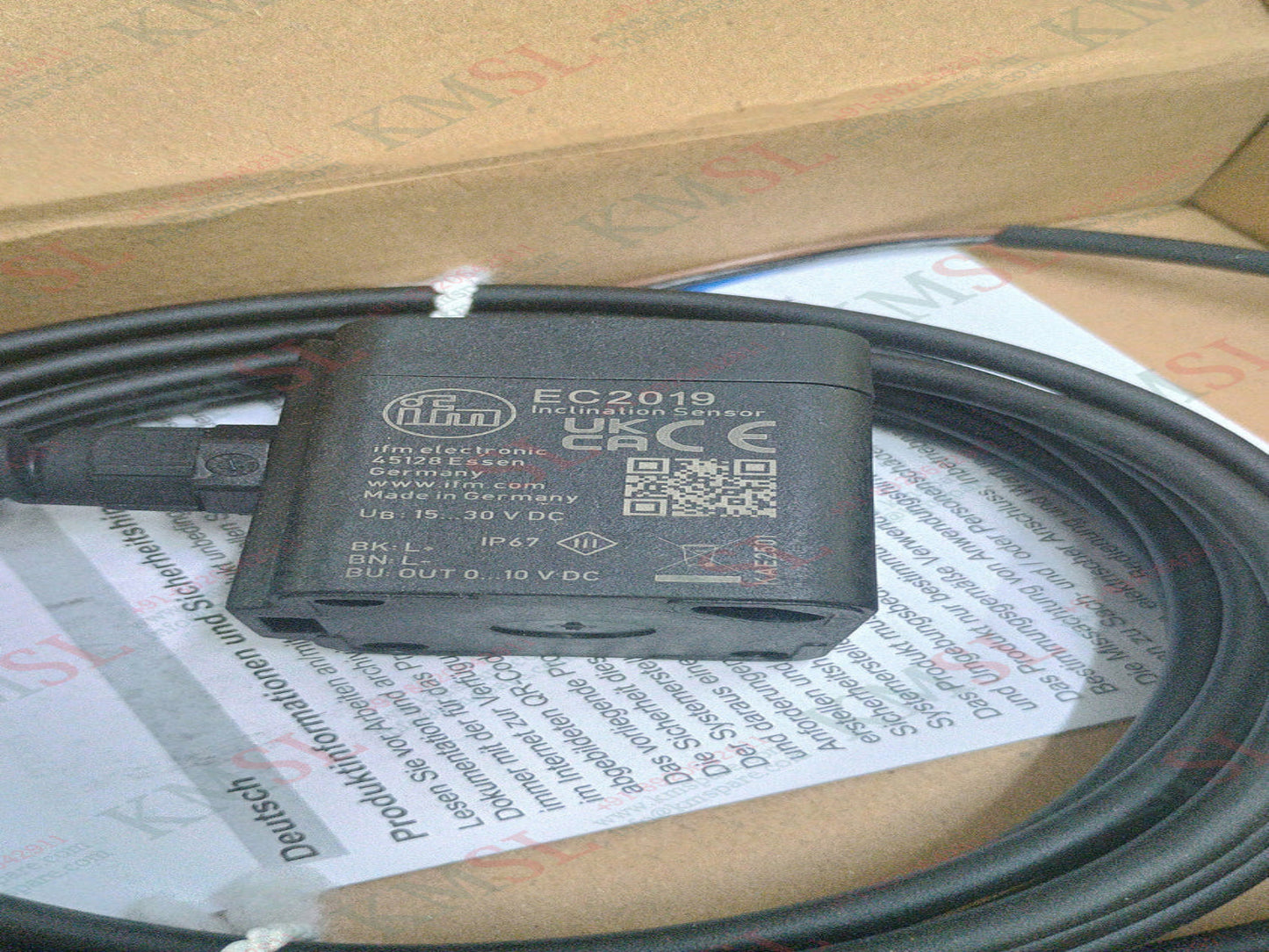

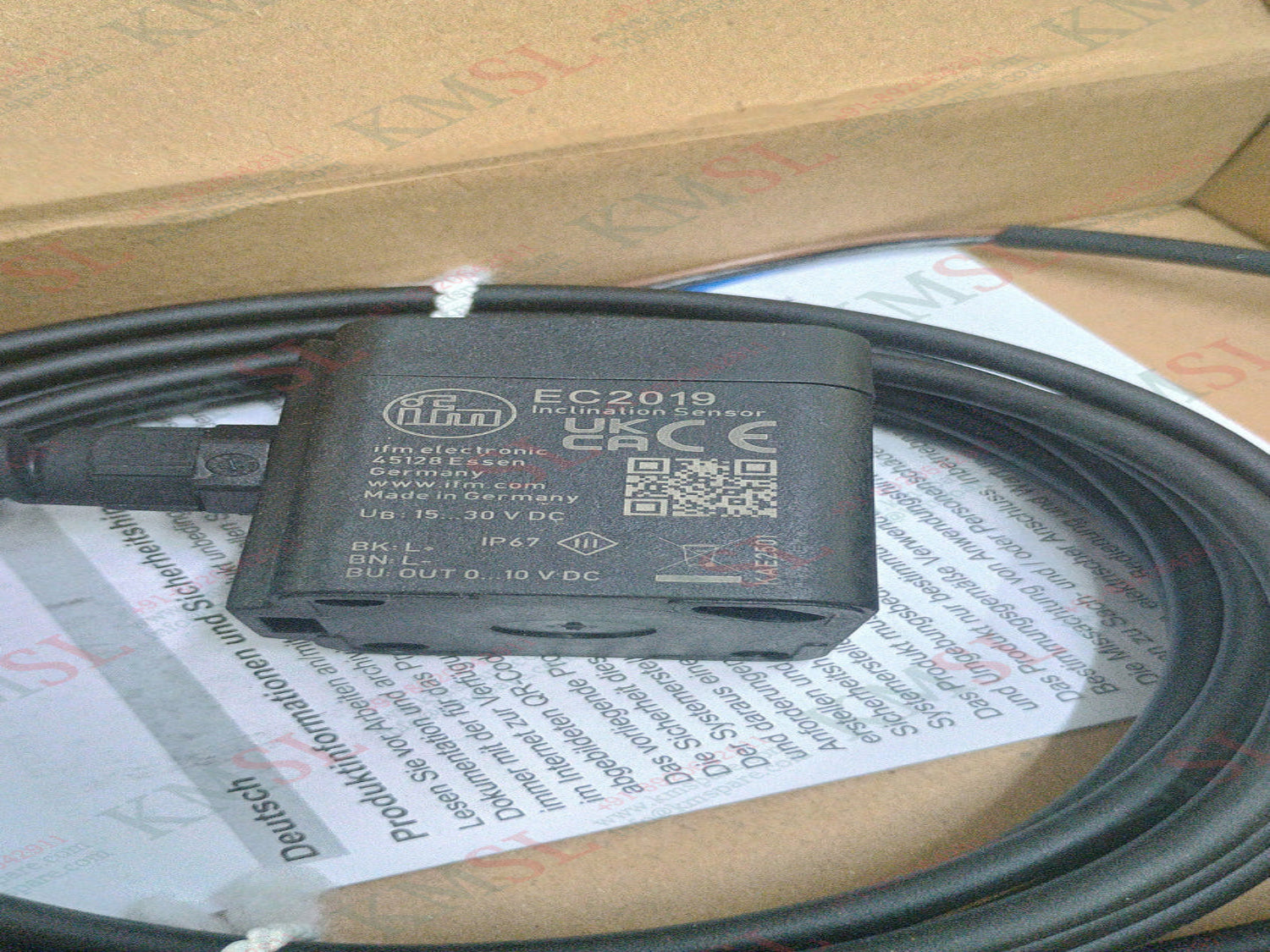

EC2019 IFM Inclination Sensor

Number of measurement axes 1 Angular range[°] ± 90 Application Function principle static Application industrial application; mobile applications Electrical data Operating voltage[V] 15...30 DC Current consumption[mA] < 35 Protection class III Reverse polarity protection yes Reverse polarity protection yes Inputs / outputs Number of inputs and outputs Number of analogue outputs: 1 Outputs Output signal analogue signal; (see characteristics) Number of analogue outputs 1 Analogue voltage output[V] 0...10 Min. load resistance[?] 50000 Overload protection yes Measuring/setting range Number of measurement axes 1 Angular range[°] ± 90 Accuracy / deviations Repeatability[°] 0,1 Operating conditions Ambient temperature[°C] -30...85 Storage temperature[°C] -30...85 Protection IP 67
