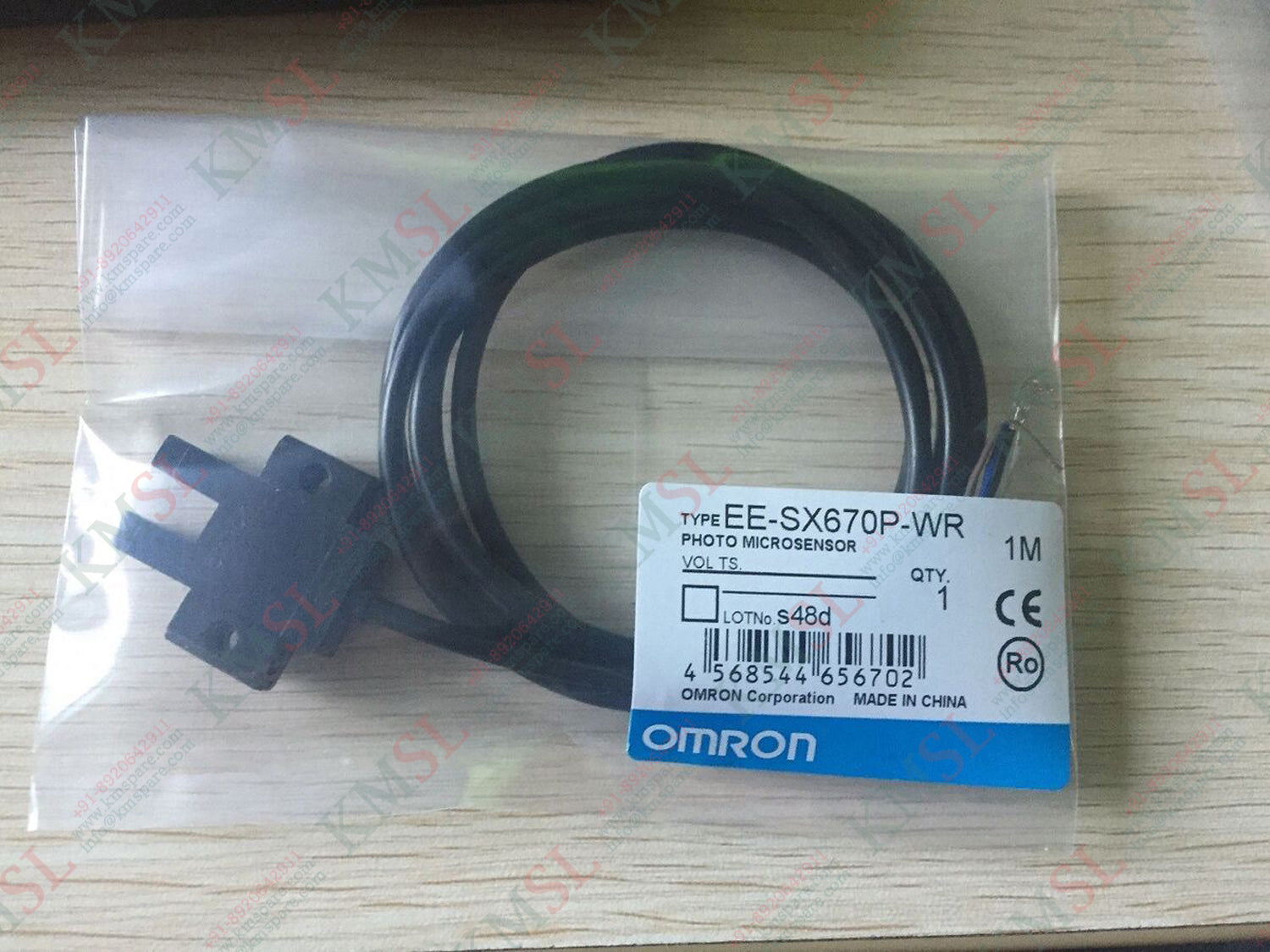

EE-SX670P-WR Omron Photoelectric Sensor

Material PBT Sensing Mode Retroreflective Model No. EE-SX670P-WR Brand Omron Product Type Sensor Sensor Type Photoelectric sensor Color Black Weight 18.9 g Voltage 5 - 24 V Current 30 mA Cable Length 1 m Ambient temperature -25 ........ 55 C Accuracy 100 % Application Industrial Type Grooved Type (Standard) Luminous method Non-modulated Sensing method Through-beam type Sensing distance Slot width: 5 mm Operation mode Dark-ON/Light-ON (selectable) Standard sensing object Opaque, 2 x 0.8 mm min. Differential distance elements 0.025 mm max. Light source ?Peak wavelength? Infrared LED (940 nm) Indicator Light indicator (red) Power supply voltage 5 to 24 VDC ±10% ripple (p-p) 10 % max. Current consumption 30 mA Control output Output type PNP open collector output Load power supply voltage 5 to 24 VDC Load curren 50 mA max. Residual voltage at 50 mA load current: 1.3 V max
