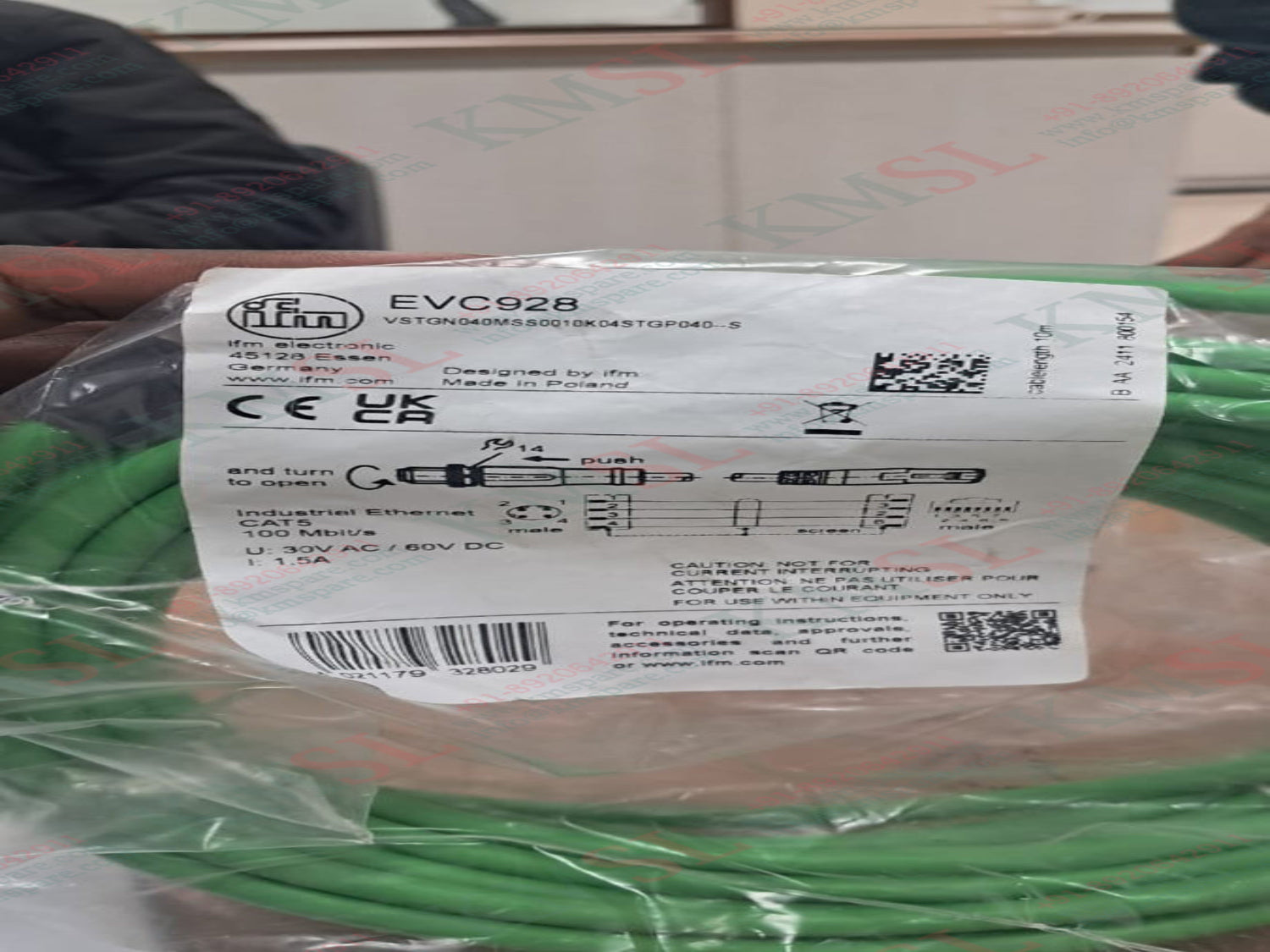

EVC928 IFM Connection Cable

Special feature Free from silicone; Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability Design Ethernet cable, D-coded Application Industrial Ethernet; CAT5/CAT5e; 100 Mbit/s; Industrial applications / factory automation Free from silicone yes Electrical data Operating voltage[V] 30 AC / 60 DC Protection class III Max. current load total[A] 1.5 Operating conditions Ambient temperature[°C] -25...90 Ambient temperature (moving)[°C] -25...90 Storage temperature[°C] -25...55 Storage humidity[%] 10...100 Other climatic conditions for storage according to stated class 1K22/ DIN 60721-3-1 Protection IP 65; IP 67; (M12 plug / RJ45 plug: IP 20) Mechanical data Weight[g] 630.6 Moulded-body material TPU / PC Material nut brass, nickel-plated Drag chain suitability yes Drag chain suitability bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 3 Mio. torsional strain ± 180 °/m Remarks Pack quantity 1 pcs. Electrical connection - plug Connector: 1 x M12, straight; coding: D; Moulded body: TPU, black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm Electrical connection Connection Cable: 10 m, PUR, Halogen-free, green, Ø 6.5 mm, shielded; PROFINET Type C; 4 x 0.34 mm² (7 x Ø 0.25 mm ) Electrical connection - plug Connector: 1 x RJ45, straight; Moulded body: PC; Contacts: gold-plated
