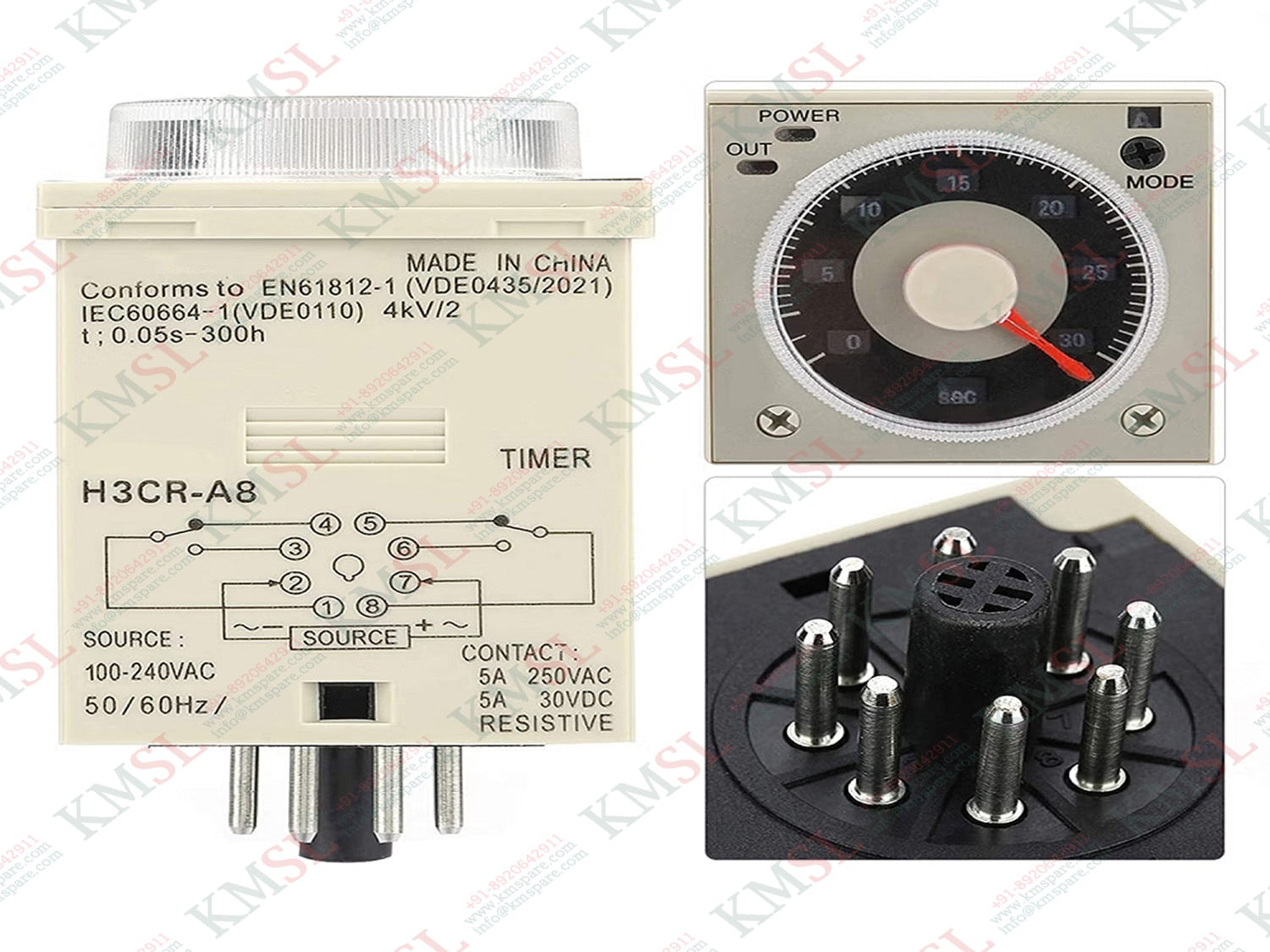

H3CR-A8 Omron Solid-State Multi-Functional Timer

Type Digital Brand Omron Usage/Application Industrial Rated Voltage 100 - 240 V Model Name/Number H3CR-A8 Rated Current 15 mA Mounting Type Panel Mounting Timer Automation Grade Semi-Automatic Material PBT Color White Count Mode Up Frequency 50 / 60 Hz Weight 120 g Current 15 mA Pressure 120 Bar Range 10 mm Voltage 110 -240 V Insulation Resistance Yes I Deal In New Only Recommended fuse Contact Output: 0216005 (250 VAC, 5 A), manufactured by Littelfuse Transistor Output: 0216.100 (250 VAC, 100 mA) manufactured by Littelfuse Rated operating voltage Ue Rated operating current Ie Contact Output: AC-15: Ue: 250 VAC, Ie: 3 A AC-13: Ue: 250 VAC, Ie: 5 A DC-13: Ue: 30 VDC, Ie: 0.5 A Transistor Output: DC-13: Ue: 30 VDC, Ie: 0.1 A Rated insulation voltage 250 V Rated impulse withstand voltage (altitude: 2,000 m max.) 4 kV (at 240 VAC) Conditional short-circuit current 1000 A
