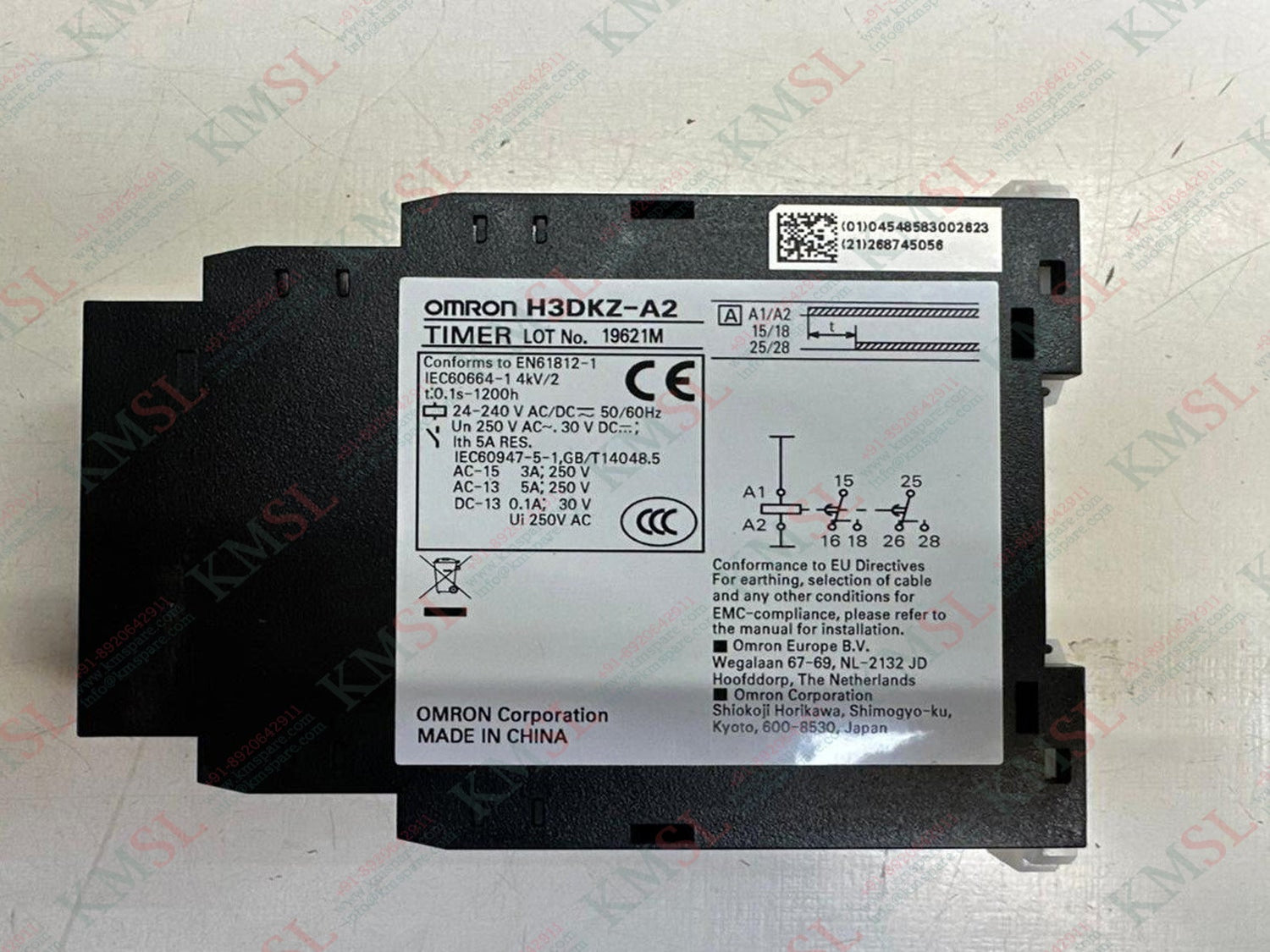

H3DKZ-A2 Omron Solid-State Multi-Functional Timer

Type Digital Brand Omron Usage/Application Industrial Rated Voltage 24 - 240 V Model Name/Number H3DKZ-A2 Rated Current 10 mA Mounting Type Panel Mounting Timer Automation Grade Automatic Material PBT Color White Count Mode Up Frequency 50 /60 Hz Phase 3 Phase Weight 212 g Current 15 mA Accuracy 100 % Pressure 500 bar Voltage 24 -240 V Insulation Resistance Yes I Deal In New Only Power supply voltage *1 24 to 240 VAC/DC, 50/60 Hz *2 12 VDC *2 Allowable voltage fluctuation range 24 to 240 VAC/DC: 85% to 110% of rated voltage 12 VDC: 90% to 110% of rated voltage Power reset Minimum power-OFF time: 0.1 s Reset voltage 10% of rated voltage *3 Power consumption *4 H3DKZ-A1 At 240 VAC: 6.6 VA max. H3DKZ-A2 At 240 VAC: 4.5 VA max. Control output Contact output, 5 A at 250 VAC with resistive load (cos? = 1), 5 A at 30 VDC with resistive load Ambient operating temperature -20 to 55°C (with no icing) Storage temperature -40 to 70°C (with no icing) Ambient operating humidity 25% to 85%
