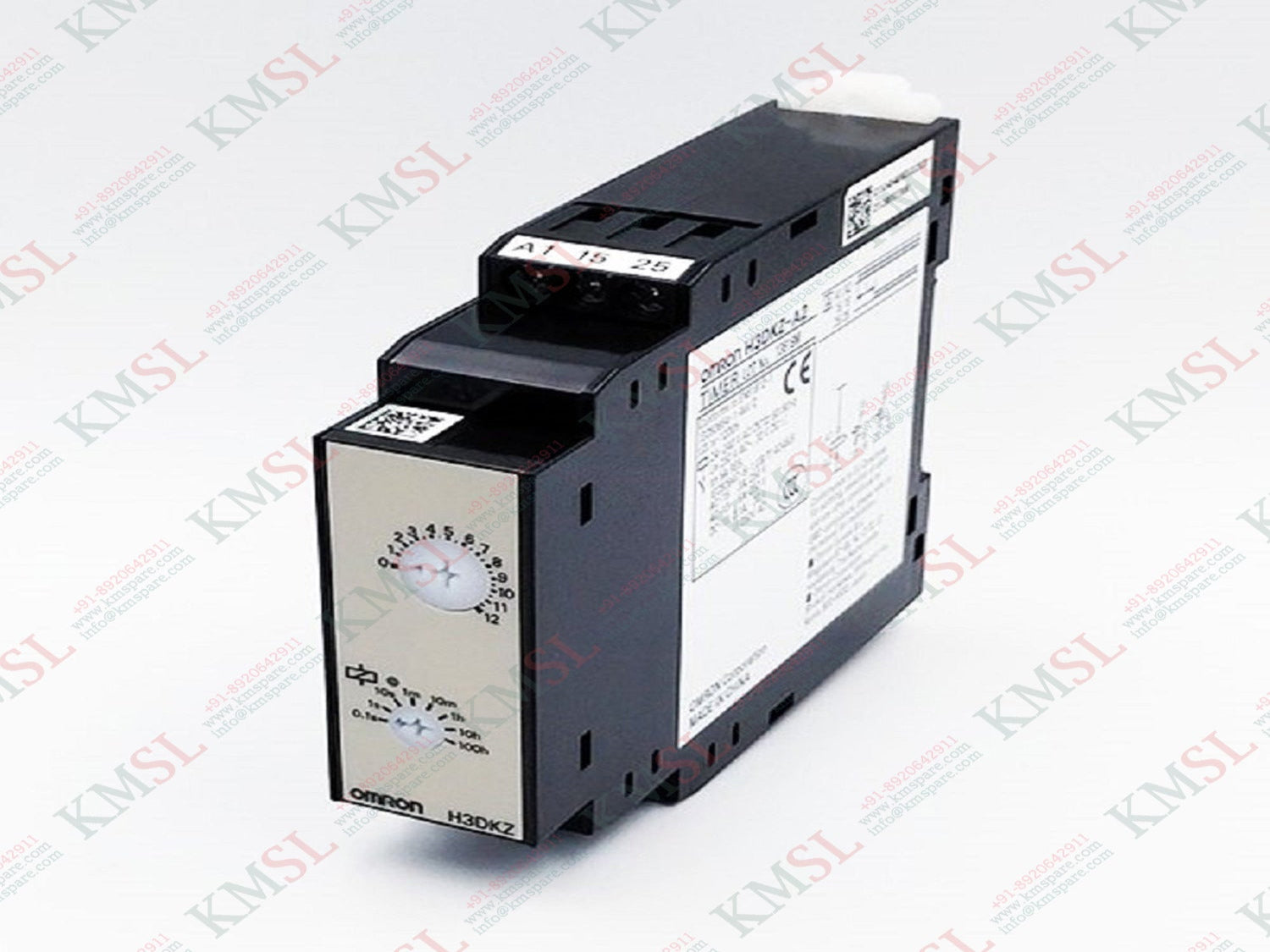

H3DKZ-G Omron Solid-State Multi-Functional Timer

Number Of Poles 5 Pole Material Plastic Usage/Application Relay Modules Model Name/Number H3DKZ-GH3DKZ-G Coil Voltage 24 - 240 V Voltage Type AC Current 15 mA Relay Type General Purpose Relays Weight 210 g Product Type Solid-state Multi-functional Timers Rated power supply voltage 24 to 240 VAC 50/60 Hz 24 to 240 VDC Ripple 20% max. Allowable voltage variable range 85 to 110% of the power supply voltage Power consumption Approx. 6.6 VA (at 240 VAC) Reset voltage 10% max. of rated supply voltage Number of time ranges 2 Operation mode Star-delta Control output (Type) Time-limit: SPDT (Start operation circuit) SPDT (Delta operation circuit) Control output (Contact output) Resistive load: 250 VAC 5 A (cos?=1)/5 A at 30 VDC/0.5 A max. at 125 VDC Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value) Operating resetting Time-limit operation/Self-reset Star-delta transfer time selectable from 0.05 s, 0.1 s, 0.25 s and 0.5 s
