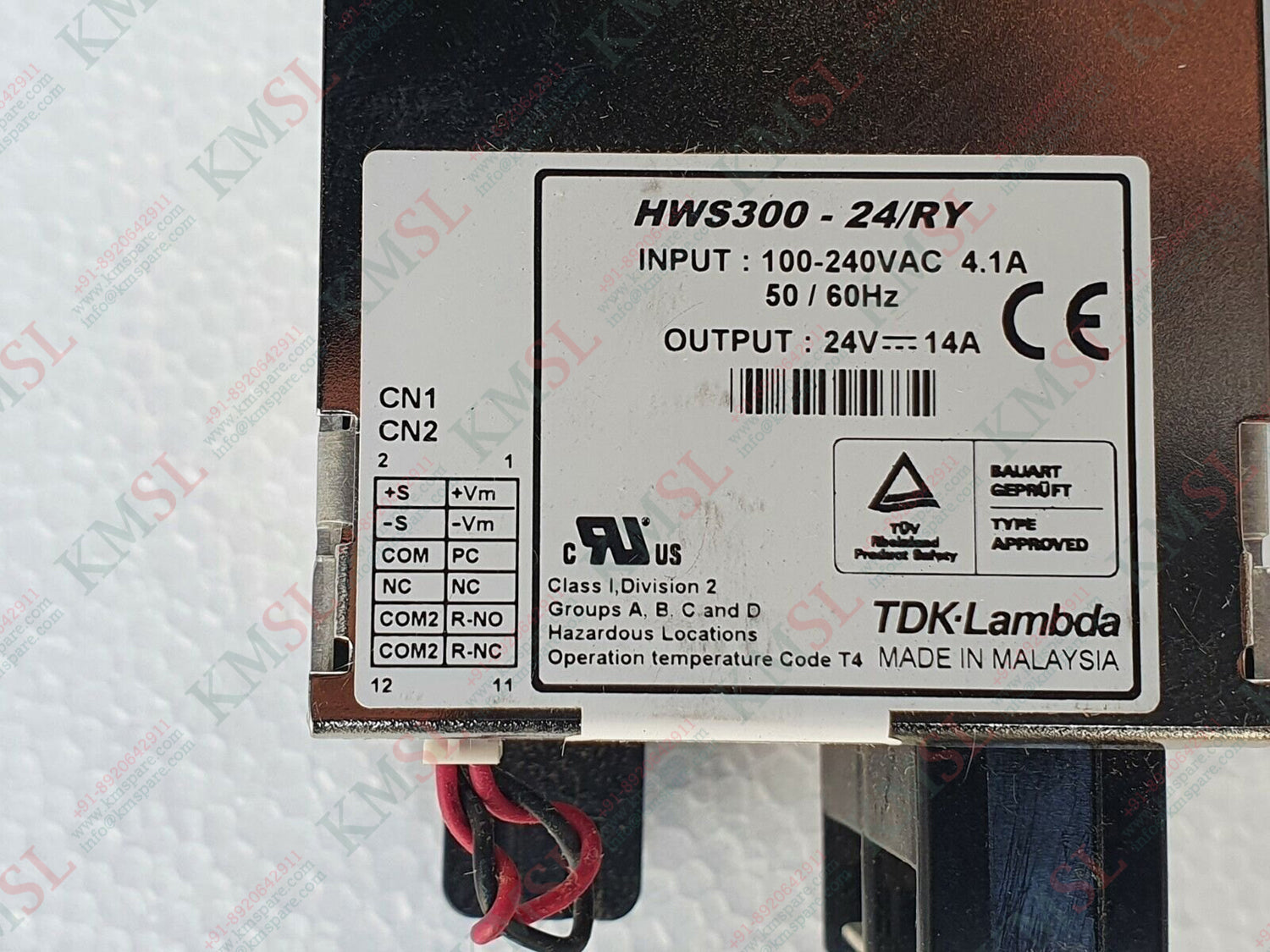

HWS300-24/RY TDK LAMBDA Power Supply

Output Voltage 24V Usage/Application Industrial Automation Input Voltage 24dc Design Smps Series HWS300 Weight 1 year HWS300-24/RY is an ultra-reliable, conservatively rated HWS300 series single output industrial power supply. . It has a limited lifetime warranty, unique to the industry. This also meet conducted and radiated emission standards without additional filtering or shielding. It includes overcurrent, overvoltage protection. Application includes industrial, test, LED, broadcast, communication, semi-fab. Certified by IEC/EN/UL/CSA62368-1, 60950-1, EN50178-1, UL508(5). AC input voltage range from 85 to 265VAC, DC input voltage range from 120 to 330VDC Output voltage is 24V, maximum current is 14A Efficiency is 82 / 85% (115/230VAC) Class B conducted and radiated EMI, easier system EMC compliance Very conservative electrolytic capacitor ratings, long service life Limited lifetime warranty, low cost of ownership, suitable for industrial control equipment Switching frequency is 190KHz, screw terminals connectors, aluminum case material Operating temperature range from -10 to +70 (derate linearly to 50% load from 50 to 70) Size (W x H x D) is 2.4 x 3.23 x 6.5inch
