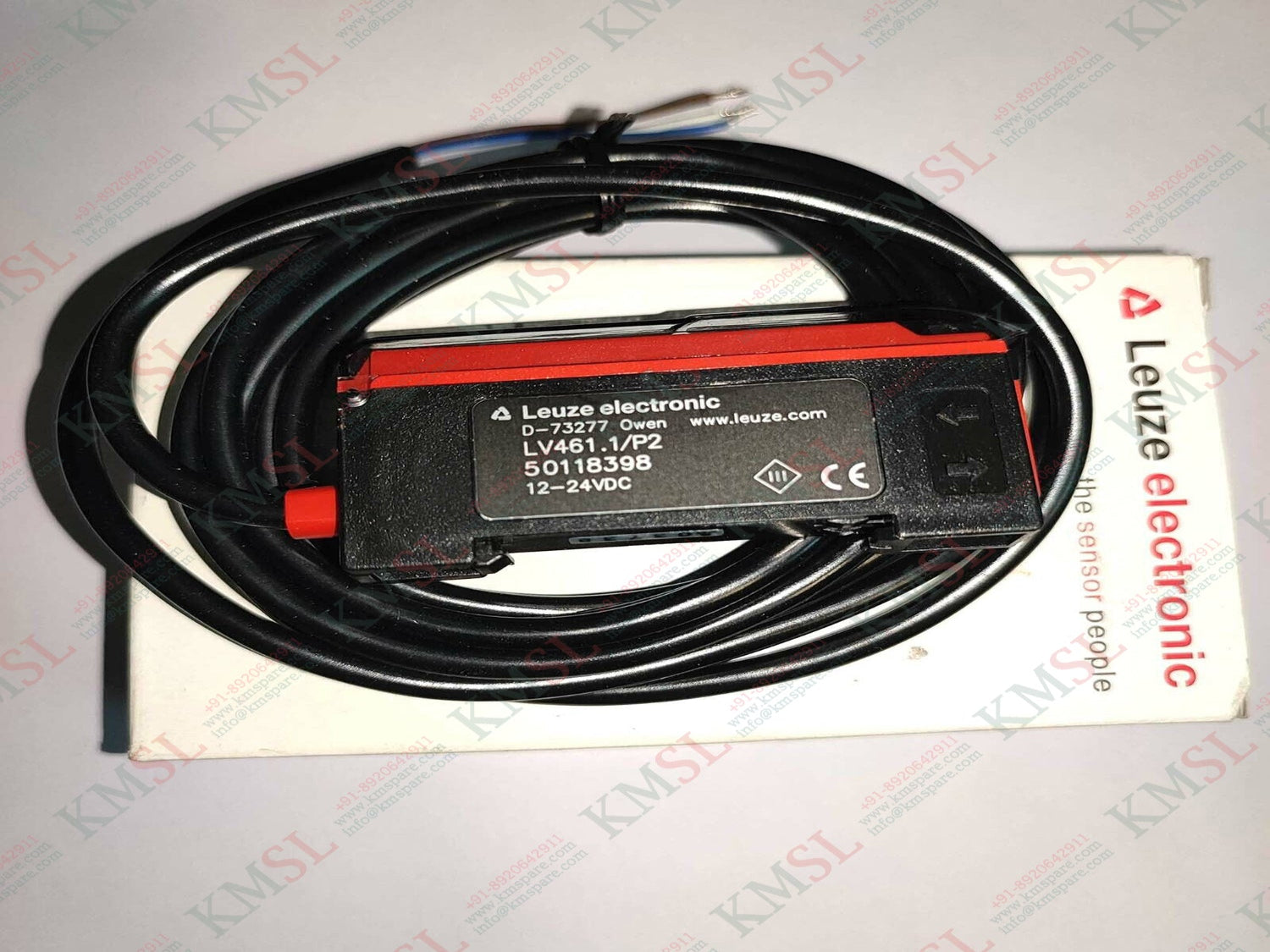

LV461.1/P2 Leuze Fiber Optic Sensor

Voltage 10-30V Type Fiber Optics Sensor Heads Light Source Red LED Interface IO-Link Model Number LV461.1/P2 Switching Frequency 50 /60 Hz Switching Output PNP Housing M12 Housing Material Stainless Steel Operating Temperature -40 to 125 Deg C No Load Supply Current 40 mA Model No. LV461.1/P2 Product Type Fiber Optic Sensor Weight 35 g Temerature -10 ....60 C Degree of Protection IP67 Protection IP54 Specifications Optical data Throughbeam principle Scanning principle Operating range/scanning range 1) 1) Range/scanning range depending on the fiber optics used up to 300mm up to 80mm Light source LED (modulated light) Wavelength 680nm (visible red light) Timing Operating mode 'Range' Operating mode 'Speed' Switching frequency 2) 2) With a duty cycle of 1:1 250Hz 500Hz Response time 1ms 2ms Delay before start-up ? 150ms Electrical data Operating voltage UB 12 … 24VDC ± 10% Residual ripple ? 10% of UB Open-circuit current ? 40mA Switching output antivalent transistor outputs pin 4/black: PNP, pin 2/white: NPN Function light/dark switching, adjustable by means of a switch Signal voltage high/low ? (UB-2.5V)/? 2.5V Output current ? 100mA Sensitivity adjustable via 20-turn potentiometer Indicators LED green ready for operation Red LED switching output active Mechanical data Housing ABS Weight 35g with 2000mm cable 65g with 150mm cable and M8 connector
