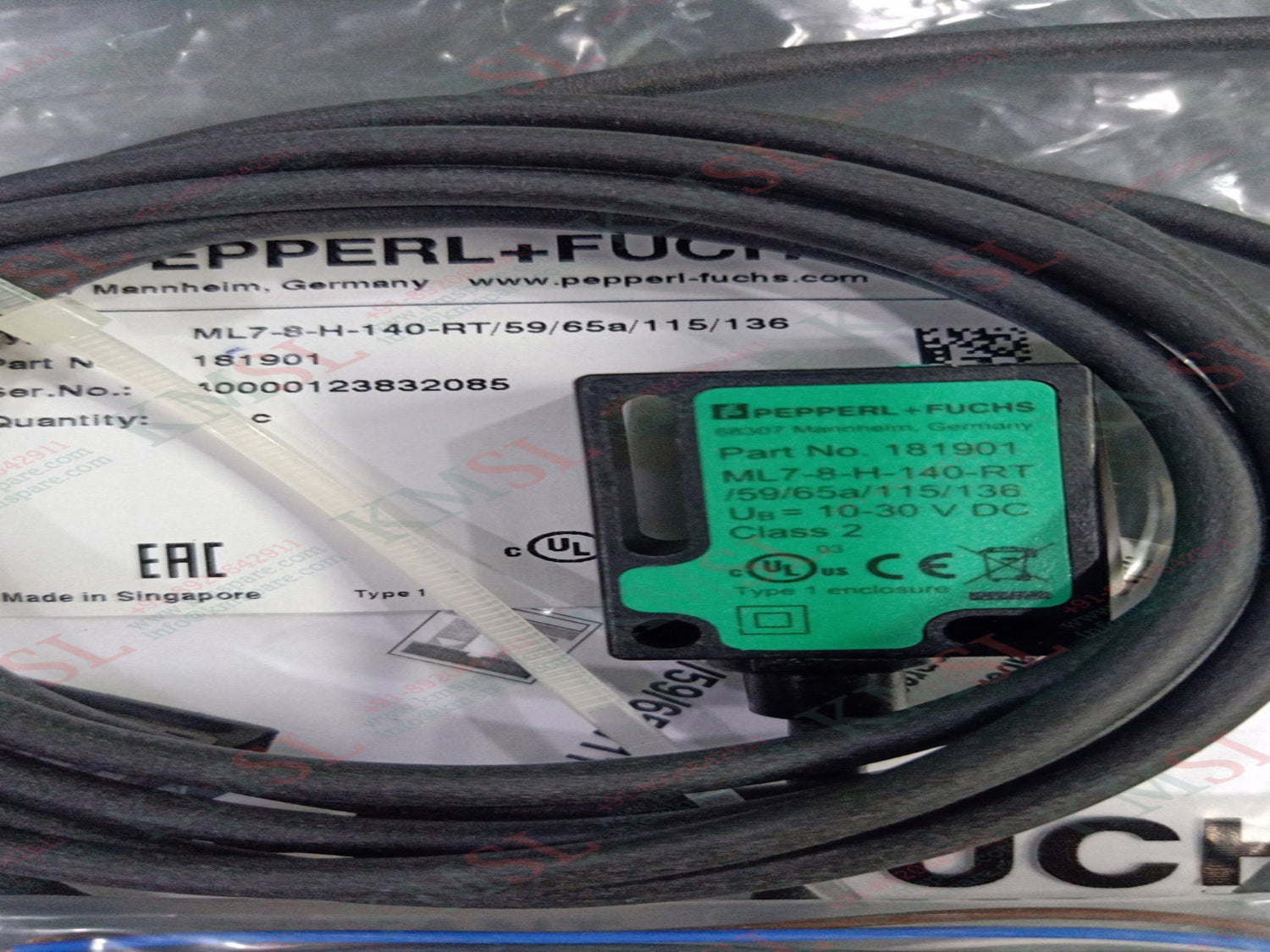

ML7-8-H-140-RT/59/65A/115/136 P&F Photoelectric Sensor

Material ABS Accuracy 100 % Activation current 40 mA Active Area 10 mm Operating temperature -40 ...... 75 C Product Type Sensor Sensor type Photoelectric Sensor Model No. ML7-8-H-140-RT/59/65a/115a/136 Brand P&F Color Black Weight 10 g Detection range 5 ... 140 mm Detection range min. 5 ... 25 mm Detection range max. 13 ... 140 mm Adjustment range 25 ... 140 mm Reference target standard white, 100 mm x 100 mm Light source LED Light type modulated visible red light Black/White difference (6 %/90 %) < 10 % Diameter of the light spot approx. 5 mm at detection range 120 mm Functional safety related parameters MTTFd 1580 a Mission Time (TM) 20 a Diagnostic Coverage (DC) 0 % Indicators/operating means Operation indicator LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) Function indicator LED yellow: lights when object is detected
