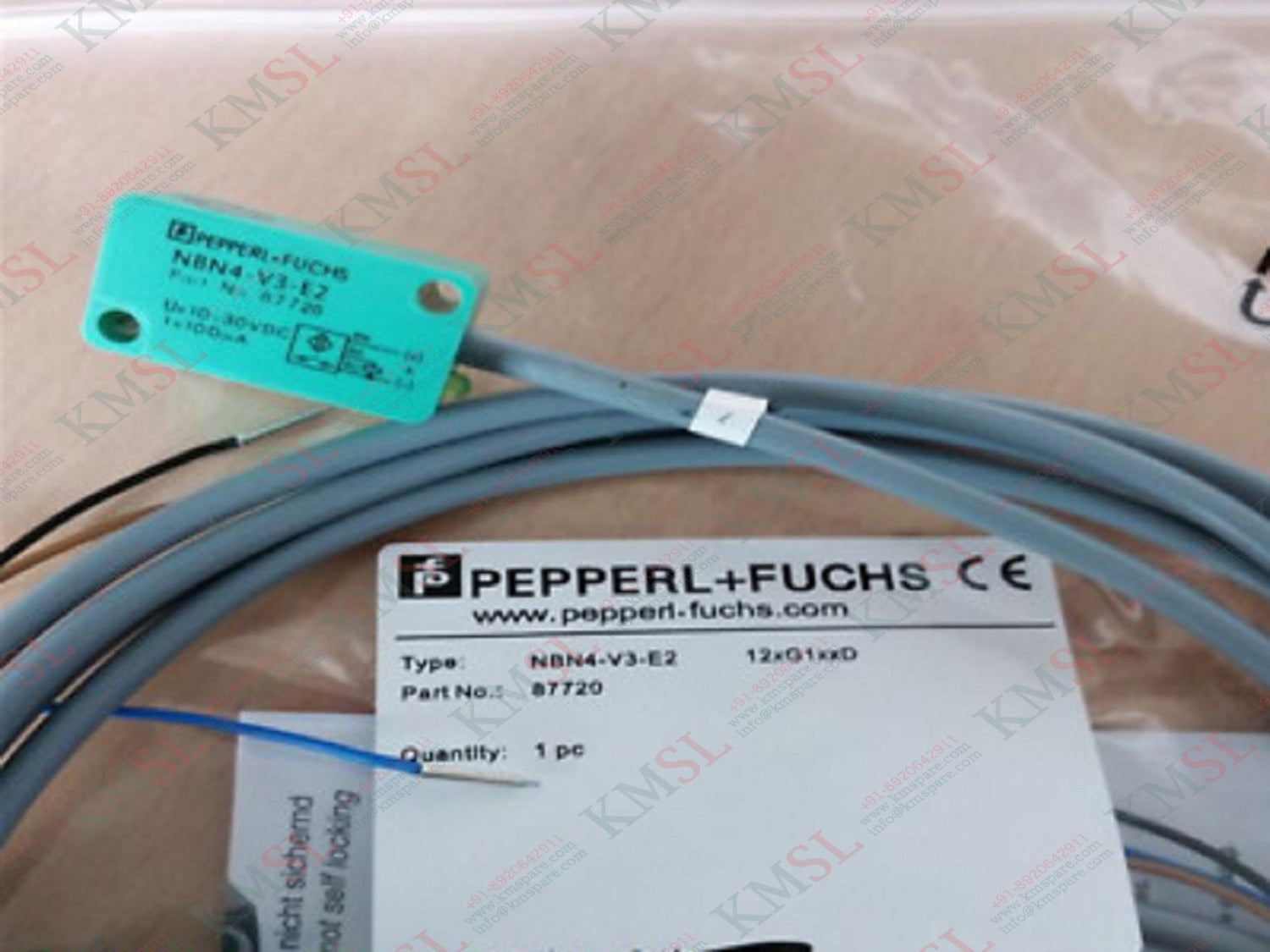

NBN4-V3-E2 P&F Inductive Sensor

Sensing Distance 15 mm Usage For Industrial Body Material Stainless Steel Output NPN Voltage 30 V Current 15mA Switching Function Normally open (NO) Brand P&F Sensor Type Inductive Sensor Model Name/Number NBN4-V3-E2 Product Type Sensor Usage/Application Industrial Response frequency 1150 Hz Power supply voltage 10 ........ 30 V Protection circuits IP66 Switching function Normally open (NO) Output type PNP Rated operating distance sn 4 mm Installation non-flush Output polarity DC Assured operating distance sa 0 ... 3.24 mm Reduction factor rAl 0.35 Reduction factor rCu 0.2 Reduction factor r304 0.7 Output type 3-wire Nominal ratings Operating voltage UB 10 ... 30 V DC Switching frequency f 0 ... 500 Hz Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Voltage drop Ud ? 3 V
