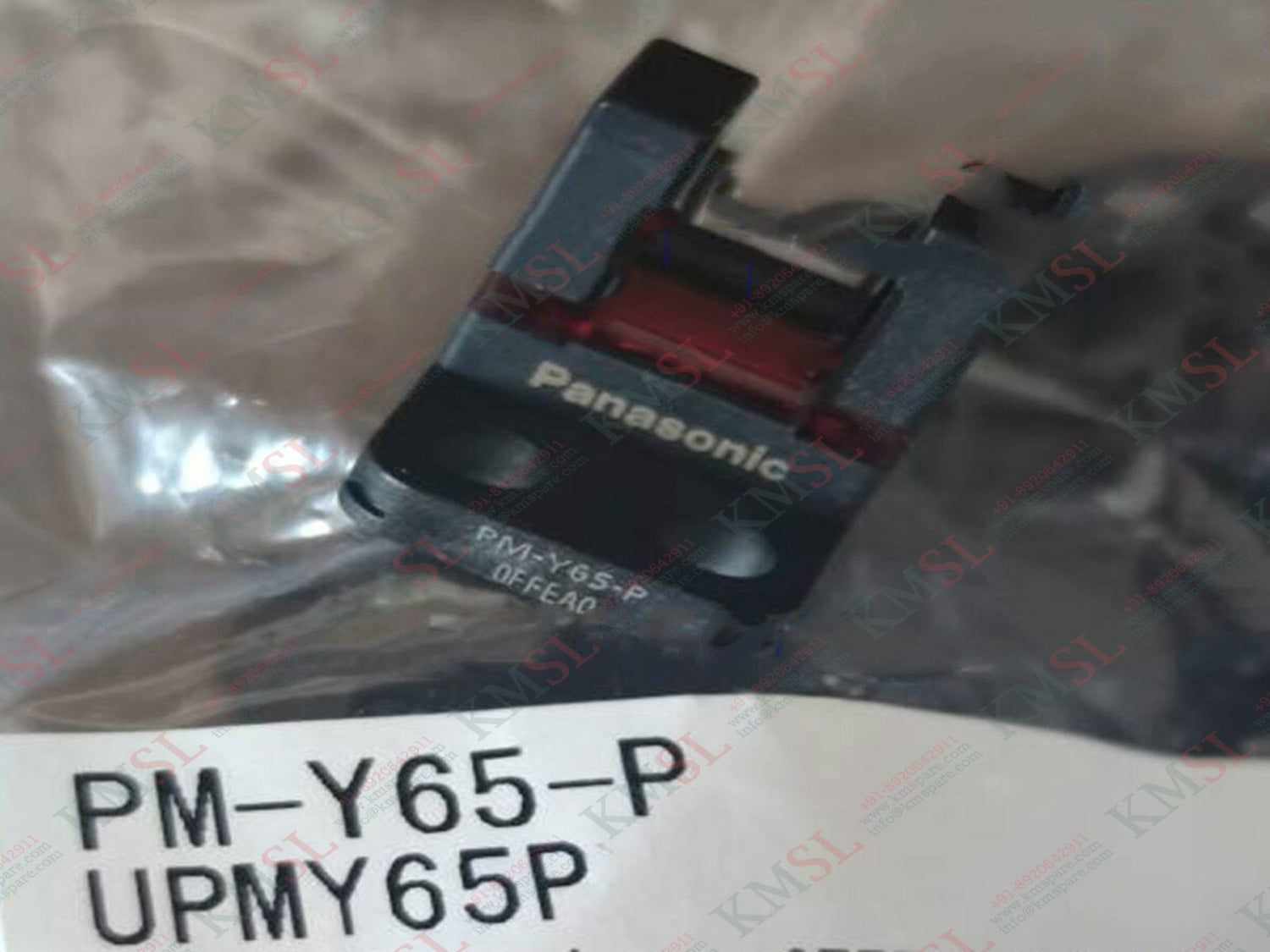

PM-Y65-P Panasonic Photoelectric Sensor

Panasonic PM-Y65-P Micro Photoelectric Sensor | Amplifier Built-in | U-Shaped | 6 mm Sensing Range

Compact and Precise Detection for Tight Spaces

The Panasonic PM-Y65-P is a high-precision, amplifier built-in micro photoelectric sensor designed for tight installations and fast response requirements. Its U-shaped design, compact PBT housing, and built-in connector make it ideal for machine automation and electronics manufacturing where space is limited.

✅ Key Features:

• Sensing Range: Fixed 6 mm

• Minimum Sensing Object: 0.8 × 1.2 mm opaque object

• Response Time: 2 ms

• Repeatability: 0.01 mm or less

• Hysteresis: 0.05 mm or less

• Design: U-shaped, compact with built-in connector

• Output Type: Photoelectric with amplifier built-in

• Protection Class: IP40

🛠️ Technical Specifications:

• Model No.: PM-Y65-P

• Brand: Panasonic

• Material: PBT

• Activation Current: 10 mA

• Active Area: 10 mm

• Supply Voltage: 5–24 V DC ±10%

• Ripple: ≤10% P-P

• Operating Temperature: -25°C to +55°C

• Weight: 3 g

• Protection Rating: IP40

📦 Certifications & Compliance:

• CE Marking (EMC & RoHS Directives)

• UKCA Marking (EMC & RoHS Regulations)

• UL/c-UL Listing (Recognized Certification)

Ideal for high-precision sensing tasks in constrained spaces, the Panasonic PM-Y65-P Sensor offers exceptional reliability and fast response in a lightweight and compact form factor.
