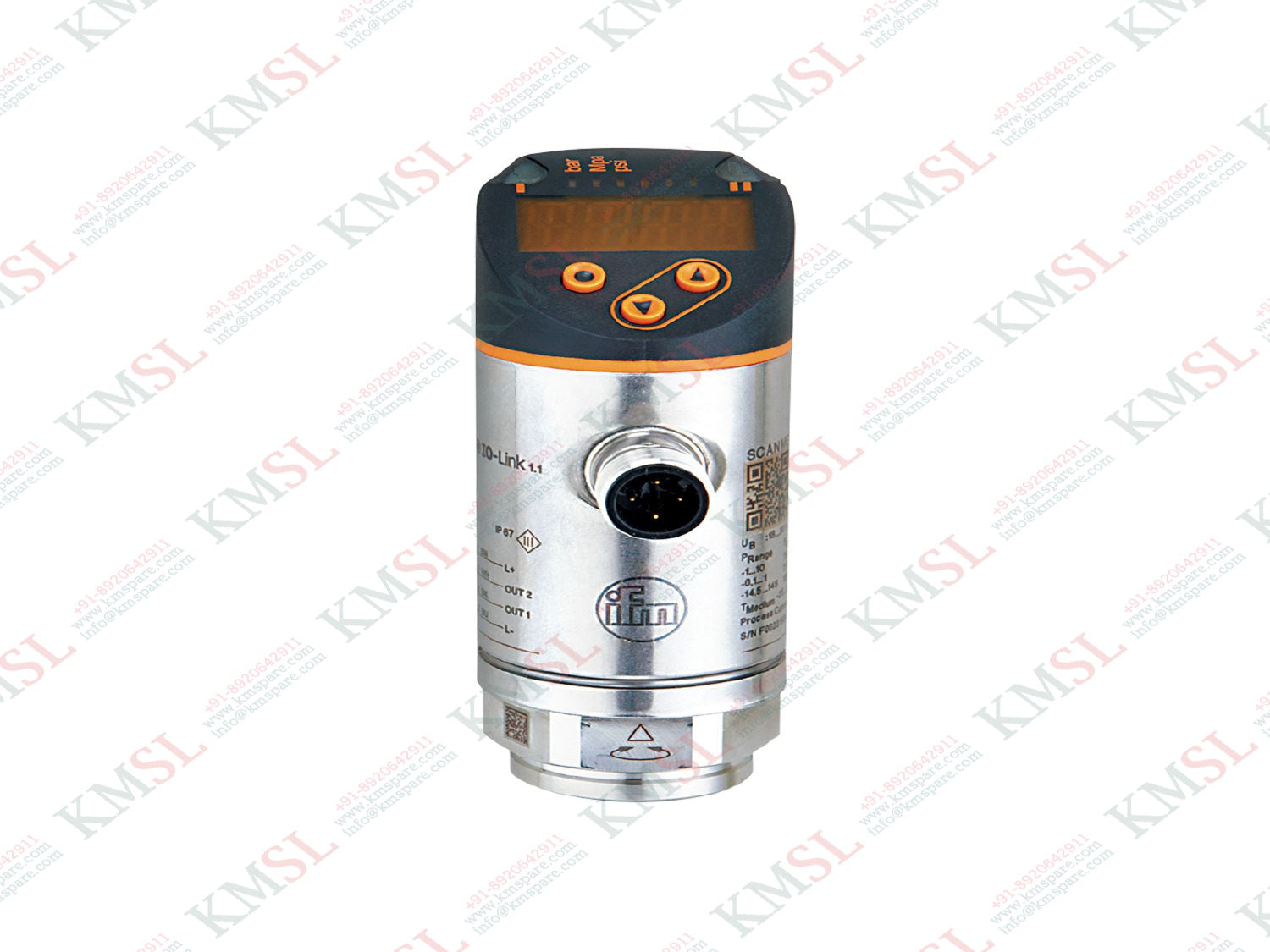

PN2270 IFM Pressure Sensor | Industrial Pressure Sensor – KMSPARE

IFM High-Pressure Sensor | 0–400 bar | IO-Link + Analog Output | Dual Digital Outputs

Advanced Pressure Monitoring for Demanding Industrial Environments

The IFM 0–400 bar pressure sensor offers industry-leading performance with a compact design, robust construction, and precise signal output. Ideal for high-pressure systems in industrial automation, it supports both analogue and digital outputs with IO-Link integration and delivers reliable measurements in both liquid and gas media.

✅ Key Features:

• Measuring Range:

  • 0 to 400 bar | 0 to 5800 psi | 0 to 40 MPa

  • Vacuum resistance: -1000 mbar | -0.1 MPa

  • Overload protection up to 800 bar | Bursting pressure: 1700 bar

• Sensor Type:

  • Metallic thin film measuring cell

  • Gold-plated contacts for enhanced signal reliability

• Media Compatibility:
  Suitable for both liquids and gases in industrial applications

• Temperature Range:

  • Medium: -25°C to +80°C

⚙️ Output & Connectivity:

• Total Outputs: 2

  • Digital Outputs (x2):

    • Configurable as Normally Open/Closed

    • Max Load: 250 mA

    • Switching frequency: < 500 Hz

  • Analog Output (x1):

    • Current: 4–20 mA (Max load: 500 Ω)

    • Voltage: 0–10 V (Min load: 2000 Ω)

    • Scalable 1:5 range

  • IO-Link Enabled: Full integration with modern control systems

• Electrical Specs:

  • Operating Voltage: 18–30 V DC

  • Current Consumption: < 35 mA

  • Reverse Polarity & Overload Protection: Yes

  • Integrated Watchdog & Short-Circuit Protection: Yes

🎯 Programming & Accuracy:

• Setpoint Programming (Factory Mode – CMPT 2):

  • SP: 2.5–400 bar

  • rP: 1–398.5 bar

  • Step Size: 0.5 bar

  • Min SP–rP Difference: 2 bar

• High-Resolution Mode (CMPT 3):

  • SP: 2.5–400 bar

  • rP: 0.9–398.4 bar

  • Step Size: 0.1 bar

  • Min SP–rP Difference: 1.7 bar

• Accuracy & Stability:

  • Switch Point Accuracy: < ±0.4%

  • Repeatability: < ±0.1%

  • Linearity Deviation (BFSL): < ±0.25%

  • Long-Term Stability: < ±0.05% per 6 months

🛠️ Mechanical Design:

• Process Connection:

  • Threaded 1/4" NPT (internal thread)

  • Rotatable connection for optimal alignment

• Visual Indicators:

  • Red/Green LED display for immediate range identification

• Construction:

  • Rugged design for high-stress, harsh industrial conditions

  • Designed for long life and high reliability

📦 Applications:

• Hydraulic and pneumatic systems

• High-pressure fluid control

• Industrial automation and OEM equipment

• Oil & gas, chemical, and heavy machinery

Upgrade your pressure monitoring with IFM's 400 bar sensor – precise, programmable, and built to last.
