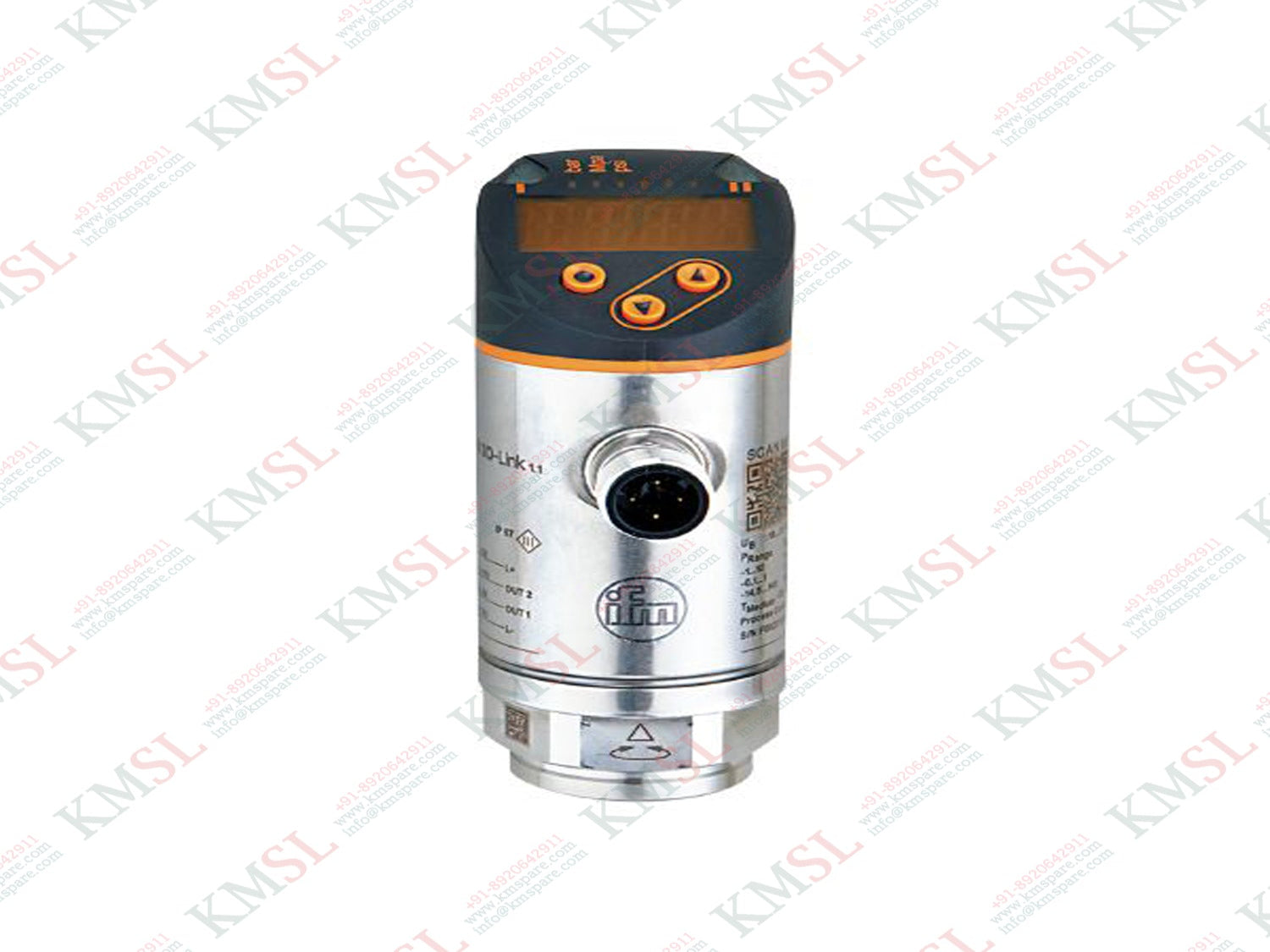

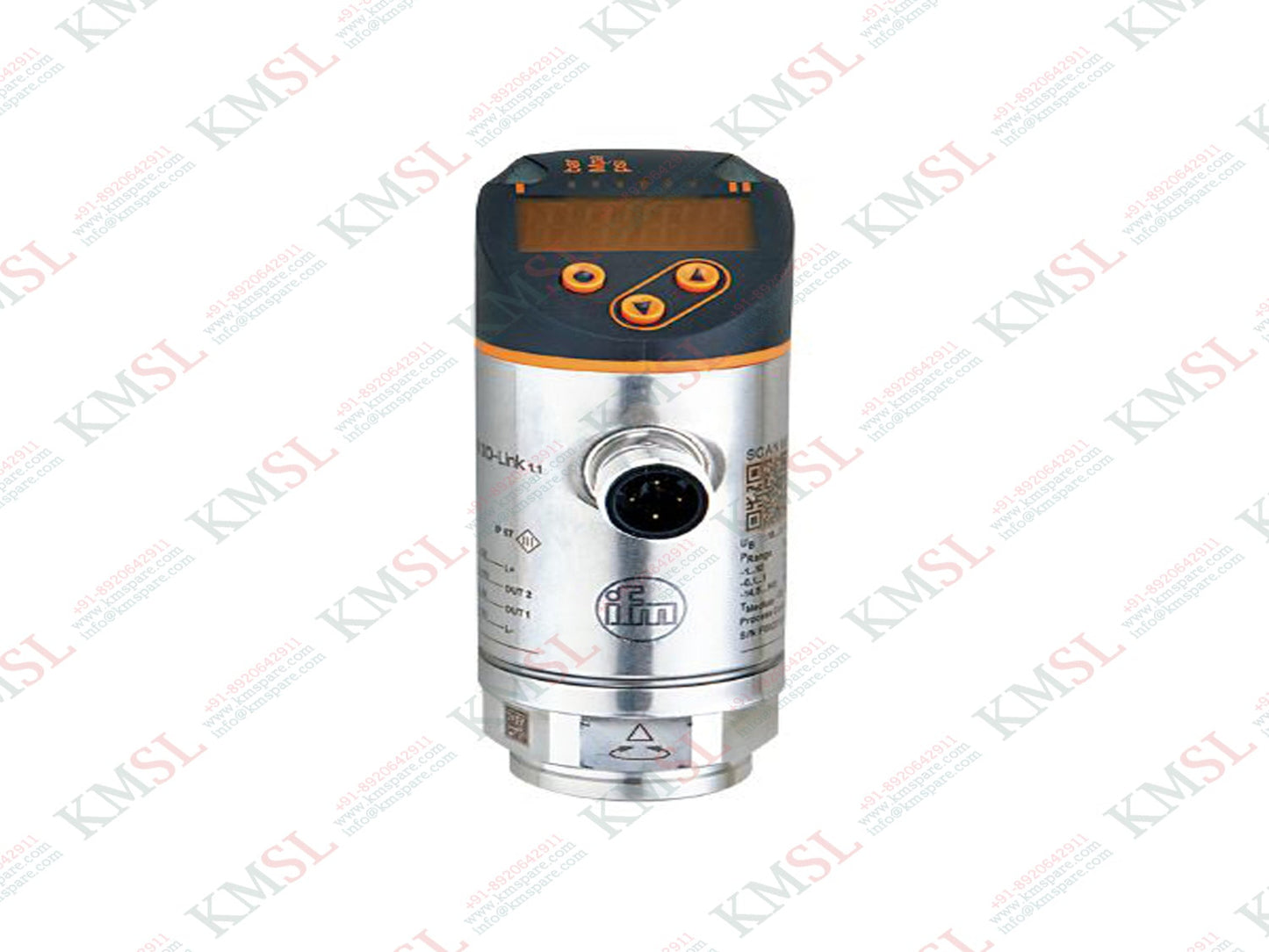

PN2292 IFM Pressure Sensor

IFM Pressure Sensor | 0–100 bar | IO-Link + Analog Output | Dual Digital Outputs | 1/4" NPT

Advanced Pressure Monitoring for Demanding Industrial Environments

Designed for precision, performance, and durability, the IFM Pressure Sensor is ideal for high-pressure liquid applications in industrial settings. With a ceramic-capacitive sensing element, gold-plated contacts, and versatile output configurations including IO-Link and analog, this sensor delivers unmatched control and monitoring flexibility.

Key Features:

• Measuring Range:
  0 to 100 bar | 0 to 1450 psi | 0 to 10 MPa
  Vacuum resistance: -1000 mbar (-0.1 MPa)

• Pressure Ratings:

  • Operating Pressure: 300 bar (4350 psi)

  • Bursting Pressure: 650 bar (9400 psi)

  • MAWP (CRN compliant): 125 bar

• Output Configuration:

  • 2 Digital Outputs (PNP/NPN; NO/NC; configurable)

  • 1 Analog Output (4–20 mA or 0–10 V; scalable 1:5)

  • IO-Link support for remote setup and diagnostics

• Electrical Specs:

  • Operating Voltage: 18–30 V DC

  • Current Consumption: < 35 mA

  • Max Load: 500 Ω (current); Min Load: 2000 Ω (voltage)

  • Protection Class: III

  • Reverse Polarity & Overload Protection: Yes

  • Short-Circuit Protection: Pulsed type

Control Parameters:

• Setpoint Range (SP): 0.6 to 100 bar

• Reset Point (rP): 0.2 to 99.6 bar

• Minimum SP–rP Difference: 0.6 bar

• Adjustment Step Size: 0.2 bar

Mechanical & Display Features:

• Process Connection: 1/4" NPT internal thread

• Display: Bright red/green LED for easy status identification

• Sensor Technology: Ceramic-capacitive measuring cell

• Rotatable Connection: For optimal installation alignment

• Medium Compatibility:

  • Designed for liquids

  • Gases only above 25 bar (on request)

• Operating Temperature Range: -25°C to +80°C

• Housing: Industrial-grade construction for harsh environments

Applications:

• Hydraulic systems

• Process engineering

• Pressure regulation in automation systems

• High-pressure liquid applications

• Gaseous media (conditionally suitable)

Rugged, reliable, and intelligent — the IFM pressure sensor is your trusted solution for accurate pressure control in demanding industrial environments.
