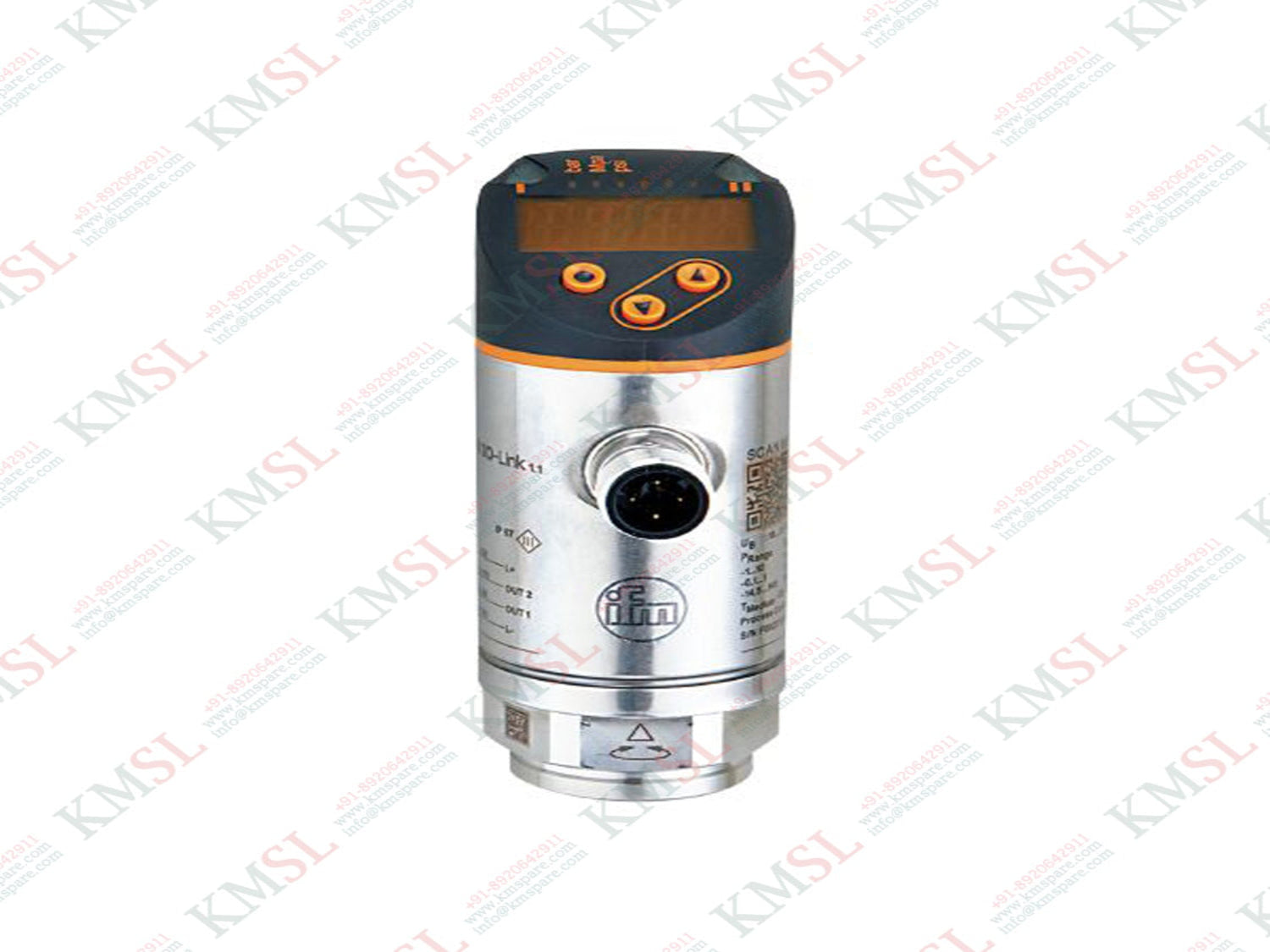

PN3094 IFM Pressure Sensor

Digital Pressure Sensor with IO-Link | -1 to 10 bar | Dual Output (Analog + Digital) | G 1/4 Thread

Reliable, Programmable Pressure Monitoring for Industrial Applications

This high-performance pressure sensor offers advanced functionality with both analog and digital outputs, making it ideal for complex industrial automation systems. Built with a ceramic-capacitive measuring cell and gold-plated contacts, it ensures accurate and stable performance in applications involving liquids and gases.

Key Features:

• Measuring Range:
  -1...10 bar | -14.5...145 psi | -0.1...1 MPa
  Suitable for relative pressure and vacuum applications

• Dual Output Functionality:

  • 1 Digital Output (PNP, NO/NC configurable)

  • 1 Analog Output (0–10 V or 4–20 mA)

  • IO-Link support for seamless integration & remote configuration

• Analog Signal Options:

  • Voltage: 0...10 V (0 bar = 0 V; 10 bar = 10 V)

  • Current: 4...20 mA (0 bar = 4 mA; 10 bar = 20 mA)

Electrical & Safety Specifications:

• Operating Voltage: 18–30 V DC (SELV/PELV compliant)

• Current Consumption: < 35 mA

• Protection Class: III

• Reverse Polarity Protection: Yes

• Short-Circuit Protection: Yes (pulsed)

• Overload Protection: Yes

• Power-On Delay: < 0.3 s

• Insulation Resistance: > 100 MΩ (500 V DC)

Switching Output Details:

• Configurable as Normally Open (NO) / Normally Closed (NC)

• Max. Switching Current:

  • 150 mA at 60 °C

  • 250 mA at 40 °C

• Max. Voltage Drop: < 2.5 V

• Switching Frequency: < 170 Hz

Mechanical & Environmental Ratings:

• Process Connection: G 1/4 internal thread, rotatable for optimal alignment

• Secondary Connection: M6 I

• Pressure Rating: 75 bar (7.5 MPa / 1087 psi)

• Bursting Pressure: 150 bar (15 MPa / 2175 psi)

• Vacuum Resistance: -1000 mbar / -0.1 MPa

• Medium Temperature: -25 to 80 °C

• Robust Design: Built for harsh industrial environments

Display & Usability:

• Clear Red/Green LED Display for real-time visual feedback

• Button Operation or remote IO-Link Parameterization

• Memory function to store highest measured system pressure

• Excellent long-term stability and repeatability

Perfect for process control, hydraulic monitoring, and industrial automation, this sensor combines smart diagnostics, multiple output formats, and rugged reliability—all in one compact unit.
