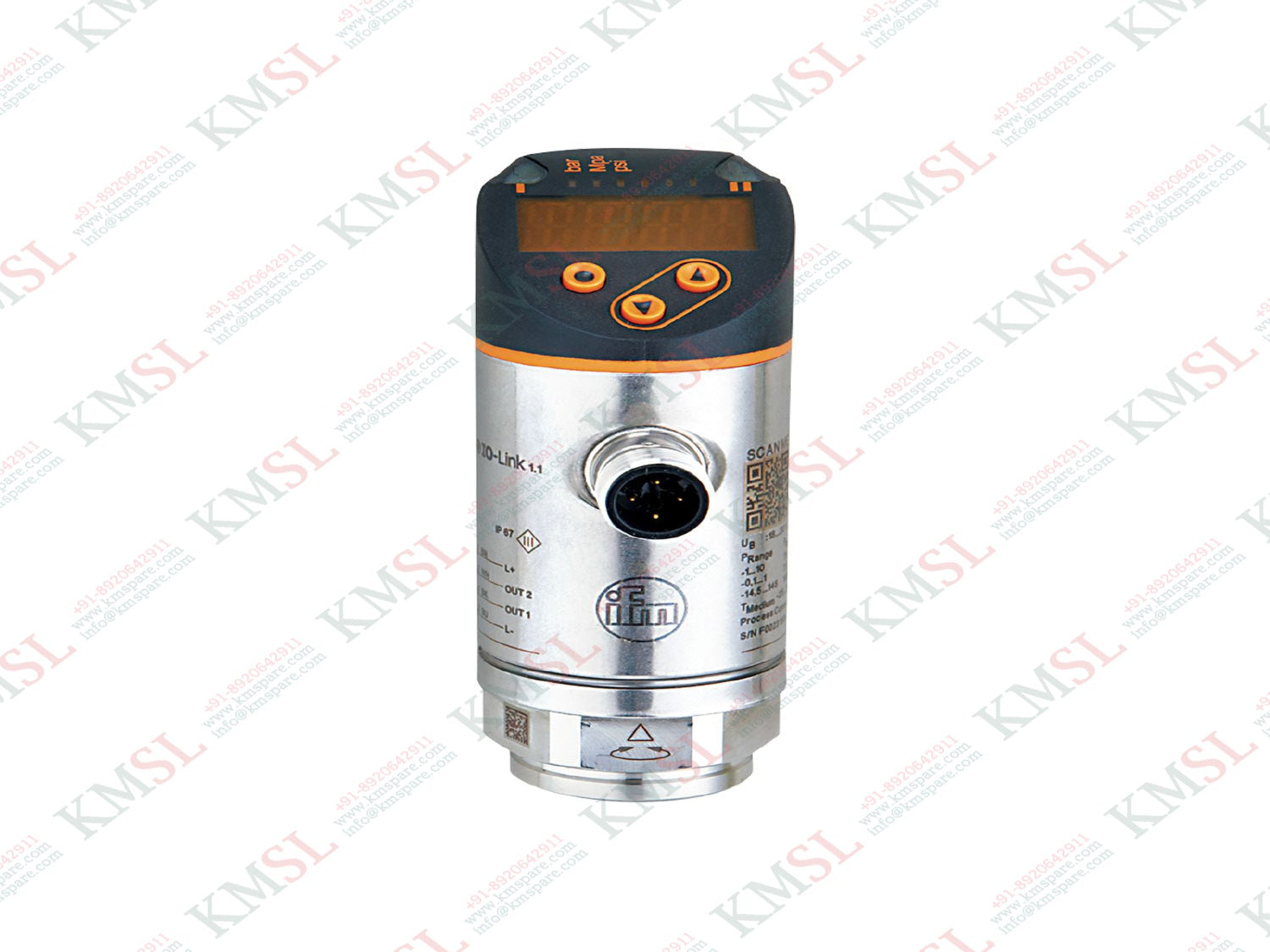

PN3129 IFM Pressure Sensor

Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1 Measuring range -1...0 bar -1000...0 mbar -14.5...0 psi -29.5...0 inHg -100...0 kPa Process connection threaded connection G 1/4 internal thread M6 I Application Special feature Gold-plated contacts Measuring element ceramic-capacitive pressure measuring cell Application for industrial applications Media liquids and gases Medium temperature[°C] -25...80 Min. bursting pressure 50000 mbar 725 psi 1450 inHg 5000 kPa Pressure rating 20000 mbar 290 psi 590 inHg 2000 kPa Vacuum resistance -1000 mbar -0.1 MPa Type of pressure relative pressure; vacuum Electrical data Operating voltage[V] 18...30 DC; (to SELV/PELV) Current consumption[mA] < 35 Min. insulation resistance[M?] 100; (500 V DC) Protection class III Reverse polarity protection yes Power-on delay time[s] 0.3 Integrated watchdog yes Inputs / outputs Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1 Outputs Total number of outputs 2 Output signal switching signal; analogue signal; IO-Link; (configurable) Electrical design PNP Number of digital outputs 1 Output function normally open / normally closed; (parameterisable) Max. voltage drop switching output DC[V] 2.5 Permanent current rating of switching output DC[mA] 150; (200 (...60 °C) 250 (...40 °C)) Switching frequency DC[Hz] < 170 Number of analogue outputs 1 Analogue current output[mA] 4...20 Max. load[?] 500 Analogue voltage output[V] 0...10 Min. load resistance[?] 2000 Short-circuit protection yes Type of short-circuit protection pulsed Overload protection yes Red/green display for clear identification of the acceptable range The process connection can be rotated for optimum alignment With long-term stability thanks to high overload protection Robust design for use in harsh industrial environments
