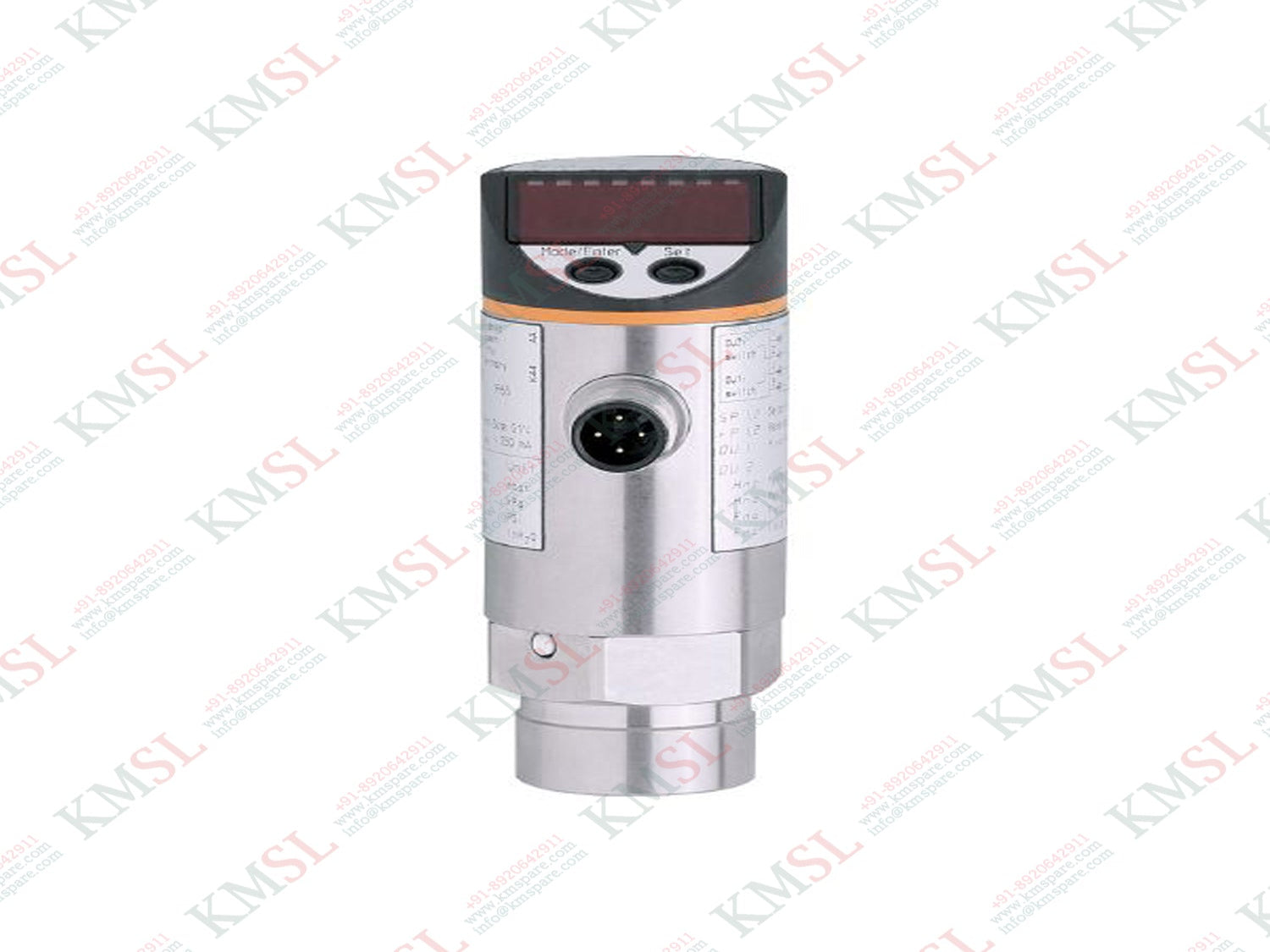

PN5004 IFM Pressure Sensor

Digital Pressure Sensor – -1 to 10 bar | G 1/4 Thread | PNP | 1 Output | LED Display

Reliable pressure monitoring for liquids and gases in industrial environments.

This high-performance digital pressure sensor is designed for precise measurement and switching in demanding applications. Supporting a wide pressure range from vacuum to 10 bar, this sensor is ideal for use in hydraulic, pneumatic, and general industrial systems.

Key Features:

• Measuring Range:
  -1...10 bar | -14.5...145 psi | -100...1000 kPa | -0.1...1 MPa

• Output Configuration:
  1 digital PNP output
  Switching signal (normally open / normally closed – parameterizable)
  Max current: 250 mA | Max voltage drop: < 2 V
  Switching frequency: < 170 Hz

• Setpoint & Factory Settings:

  • Setpoint (SP): -0.9 to 10 bar

  • Reset Point (rP): -0.95 to 9.95 bar

  • Step resolution: 0.05 bar | 1 psi | 0.005 MPa

  • Factory Default: SP1 = 2.50 bar, rP1 = 2.30 bar

Performance & Protection:

• Accuracy & Repeatability:

  • Excellent switch point precision

  • Long-term stability over 100 million pressure cycles

• Operating Voltage:
  18...36 V DC (SELV/PELV compliant)
  Low current consumption: < 50 mA

• Protective Features:

  • Reverse polarity protection

  • Overvoltage protection (< 40 V)

  • Pulsed short-circuit protection

  • Integrated watchdog function

  • Power-on delay: 0.3 s

Mechanical & Environmental Details:

• Process Connection: G 1/4 internal thread

• Pressure Rating: 75 bar (7.5 MPa)

• Burst Pressure: 150 bar (15 MPa)

• Medium Temperature: -25 to 80 °C

• Media Compatibility: Liquids and gases

• Durability: >100 million pressure cycles

• Enclosure:

  • Protection class: III

  • Compact cylindrical housing

  • Gold-plated contacts for superior conductivity

  • Clearly visible 4-digit LED display

  • Selectable country-specific pressure units

  • Memory function for highest measured pressure

Ideal for a wide range of applications requiring reliable pressure monitoring and switching, this sensor offers durability, fast response, and precision in a compact design. Built to withstand harsh industrial conditions, it's a dependable solution for automated systems.
