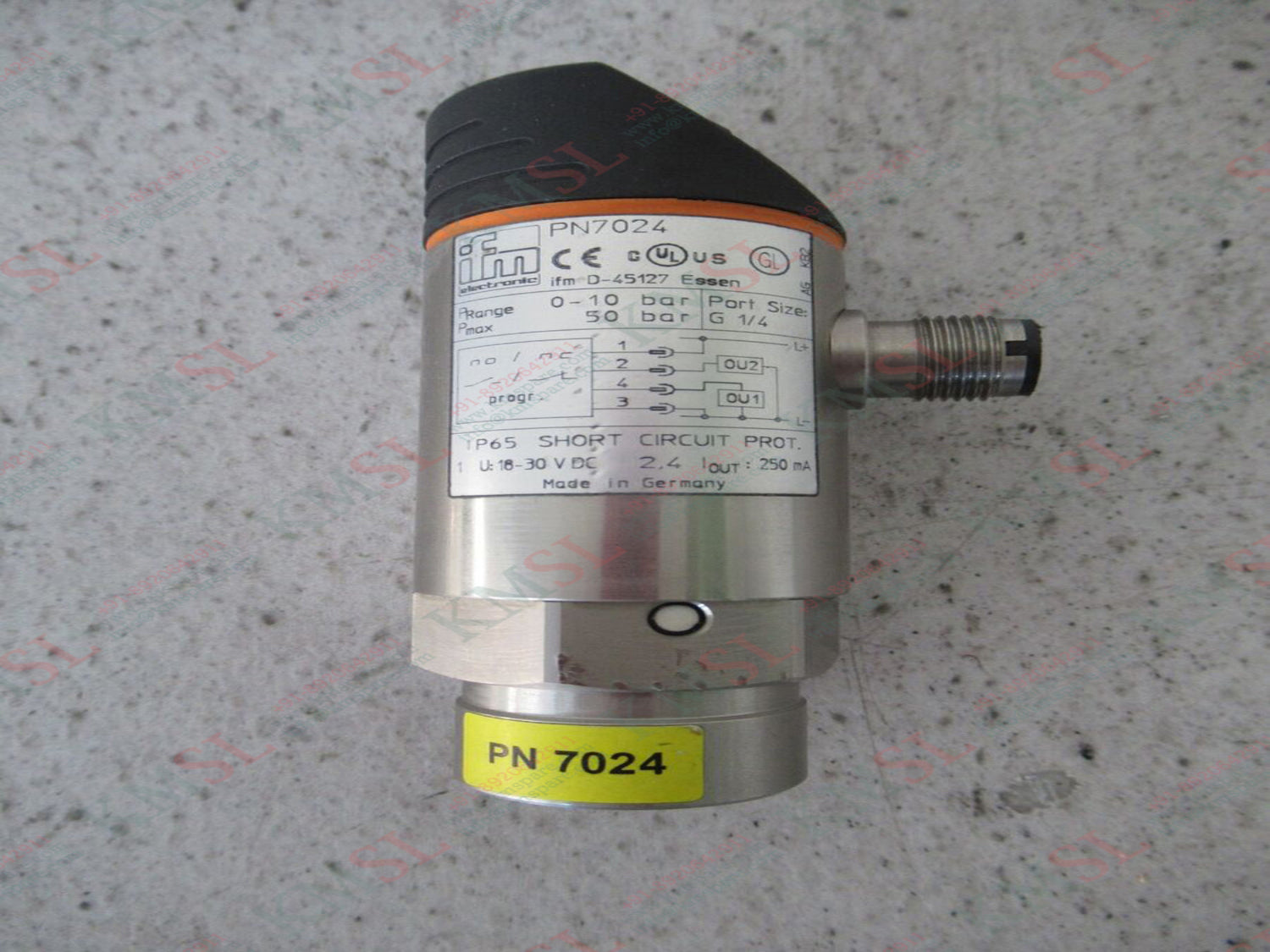

PN7024 IFM Pressure Sensor | Industrial Pressure Sensor – KMSPARE

Digital Pressure Sensor – 0...10 bar | Dual Output | G 1/4 Thread | PNP

Compact, accurate, and built for long-term reliability in industrial applications.

This high-performance digital pressure sensor is designed for monitoring pressure in liquid and gas systems across a range of industrial environments. With a robust construction, gold-plated contacts, and high accuracy, it ensures dependable performance under demanding conditions.

Key Features:

• Measuring Range: 0...10 bar (Relative pressure)

• Output Configuration: 2 digital outputs (PNP), configurable as normally open or normally closed

• Process Connection: G 1/4 internal thread

• Switch Point Adjustment: SP: 0.1...10 bar, rP: 0.05...9.95 bar (in 0.05 bar increments)

• Operating Voltage: 18...30 V DC

• Current Consumption: < 60 mA

• Protection Rating: IP65 – Suitable for industrial environments

• Materials: Stainless steel (wetted parts: 1.4305), ceramics, FKM sealing, and durable polymer housing

Electrical & Safety Features:

• Protection Class: III

• Short-Circuit Protection: Yes (pulsed)

• Reverse Polarity Protection: Yes

• Overload Protection: Yes

• Switching Output Capacity: 250 mA max, 2 V max voltage drop

• Integrated Watchdog & Power-On Delay: 0.2 seconds

High Accuracy & Repeatability:

• Switch Point Accuracy: < ±1.0% of final value

• Repeatability: < ±0.25% (with <10 K temp variation)

• Temperature Drift (10 K): < ±0.3%

• Long-Term Stability: Over 100 million pressure cycles

Fast Response & Programmable Logic:

• Switching Frequency: Up to 170 Hz

• Response Time: As low as 3 ms

• Programmable Delay Times: 0 to 50 seconds

• Adjustment Options: Hysteresis/window mode, delay settings, damping, logic switching (NO/NC)

Environmental & Compliance:

• Operating Temperature: -25 to 80 °C

• Storage Temperature: -40 to 100 °C

• EMC Standards:

  • ESD: 4 kV (CD) / 8 kV (AD)

  • Radiated HF: 10 V/m

  • Burst: 2 kV

  • Conducted HF: 10 V

• Shock Resistance: 50 g (11 ms)

• Vibration Resistance: 20 g (10–2000 Hz)

Applications:
Ideal for hydraulic and pneumatic systems, water treatment, chemical processing, and other industrial automation setups where accurate and robust pressure sensing is critical.
