PN7099 IFM Pressure Sensor

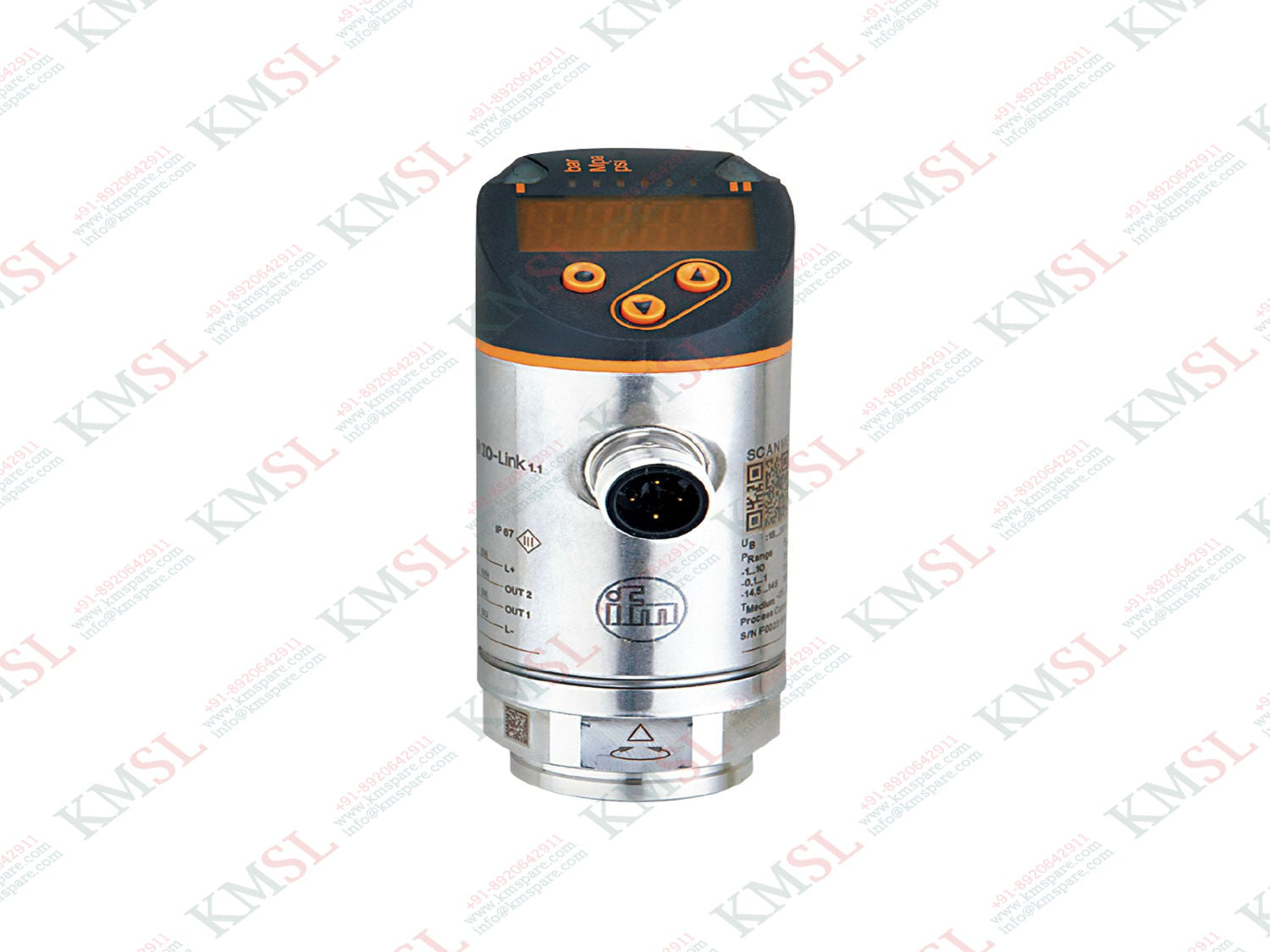

IFM PN7009 Pressure Sensor – IO-Link Enabled, Dual Output (G 1/4")

The IFM PN7009 is a high-precision pressure sensor designed for industrial applications requiring reliable monitoring of relative pressure and vacuum in liquids and gases. With a ceramic-capacitive pressure measuring cell, high overload protection, and IO-Link connectivity, it ensures exceptional accuracy and long-term performance even in harsh environments.

🔧 Key Features:

• Dual Digital Outputs
  Two configurable digital outputs with PNP/NPN switching signal; one output also supports IO-Link communication.

• Wide Measuring Range:
  -1 to +1 bar | -1000 to +1000 mbar | -14.5 to +14.5 psi | -29.4 to +29.4 inHg | -100 to +100 kPa
  Ideal for vacuum and low-pressure monitoring.

• IO-Link Communication:

  • Version: 1.1 (COM2, 38.4 kBaud)

  • Smart Sensor Profile (SSP 0 / SSP 3.1)

  • Process data resolution: 1 mbar

  • Cyclical and acyclical function support

• High Accuracy & Fast Response:

  • Switch point accuracy: < ±0.5%

  • Repeatability: < ±0.1%

  • Response time: < 3 ms

  • Long-term stability: < ±0.05% over 6 months

• Durable & Industrial-Grade Design:

  • Operating Temp: -25...80°C

  • Storage Temp: -40...100°C

  • Protection Rating: IP65 / IP67

  • Withstands shock (50g) & vibration (20g)

  • Housing: Stainless Steel 316L, PBT/PC blends

  • Wetted parts: Stainless Steel, Ceramic, FKM

• Flexible Installation:

  • Rotatable process connection for easy alignment

  • Standard threaded connection: G 1/4 internal thread

  • Compact cylindrical design: Ø34 x 90.7 mm

  • Weight: 235.5 g

• Visual Feedback at a Glance:

  • 4-digit red/green alphanumeric display

  • LED indicators for units (bar, psi, kPa, inHg) and switching status

  • Programmable switch-on/switch-off delays, hysteresis/window functions

⚙️ Electrical & Performance Specs:

• Operating Voltage: 18–30 V DC (SELV/PELV)

• Current Consumption: < 35 mA

• Short-Circuit, Overload & Reverse Polarity Protection: ✔️

• Switching Frequency: up to 170 Hz

• Output Current Rating: 150–250 mA (depending on temp.)

✅ Certifications & Approvals:

• EMC: DIN EN 61000-6-2 / 6-3

• Shock & Vibration: DIN EN 60068

• MTTF: 260 years

• UL Listed (UL No. J001)

• Compliant with Pressure Equipment Directive (PED) for Group 2 fluids

📦 Additional Info:

• Model: IFM PN7009

• Type: Relative Pressure Sensor

• Pack Quantity: 1 unit

• Mounting Torque: 25–35 Nm

• Min. Pressure Cycles: 100 million

• Compatible with IO-Link master port type A or B

Ideal for pneumatics, compressed air systems, and automated machinery, the IFM PN7009 offers top-tier pressure monitoring, intelligent diagnostics, and reliable performance in mission-critical environments.
