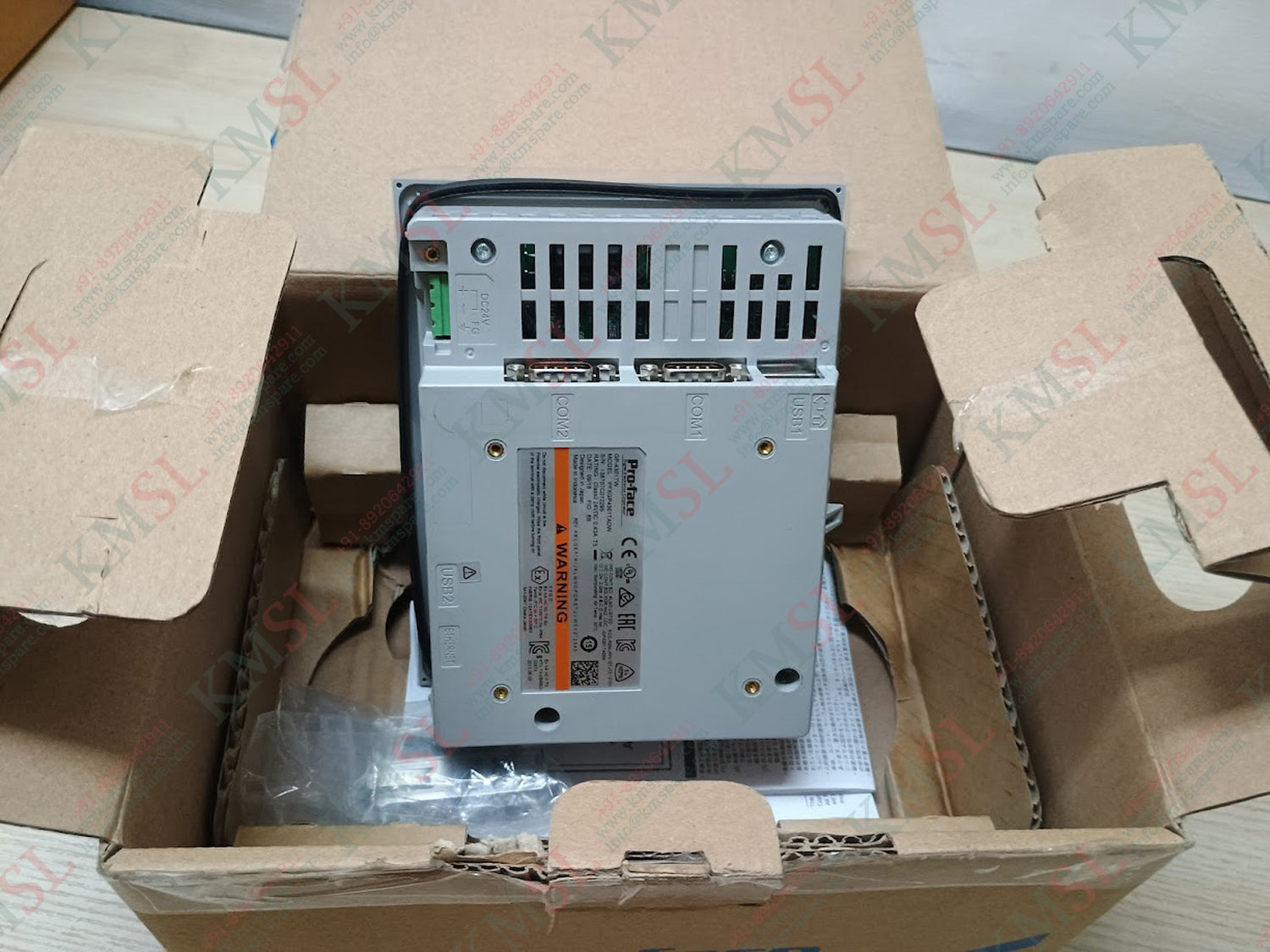

PFXGP4301TADW PROFACE Touch Screen HMI

Brand Proface Model Name/Number PFXGP4301TADW Display Size 5.7inch Ambient Operating Temperature 60 Degree C Display Type TFT Color LCD Resolution 320 x 240 pixels Series GP4000 Series Model Number PFXGP4301TADW Display Colors 65,536 colors Voltage 24 VDC Power Consumption 10.5 W Ambient Humidity 90 % RH Data Backup SRAM 128 KB (Rechargeable Lithium battery for backup memory) Touch Panel Type Resistive Film (analog) Brightness Control 8 Levels (Adjusted with the software Language Fonts Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK:158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts aredownloadable.)Character Sizes Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127pixel fonts, Image font: 8 to 72 pixel fonts Font Sizes Standard font: Width can be expanded up to 8 times. Height can be expanded upto 8 times x 8 dots 40 char. x 30 rows 8 x 16 dots 40 char. x 15 rows 16 x 16 dots 20 char. x 15 rows 32 x 32 dots 10 char. x 7 rows Serial (COM1) RS-232C Asynchronous Transmission Data Length: 7 or 8 bit, Parity: none, Odd or Even, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Serial (COM2) RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bit Parity: none, Even or Odd Stop Bit: 1 or 2 bit Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug) USB (Type-A) Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V 15 %, Output Current: 500 mA or less, Communication Distance: 5 m or less USB (Type mini-B) SD Card Conforms to USB2.0 (mini-B) x 1 Communication Distance: 5 m or less Ethernet (LAN) IEEE802.3M/EEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ 45) x 1 USB (Type-A) Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V 15 %, Output Current: 500 mA or less, Communication Distance: 5 m or less USB (Type mini-B) SD Card Conforms to USB2.0 (mini-B) x 1 Communication Distance: 5 m or less
