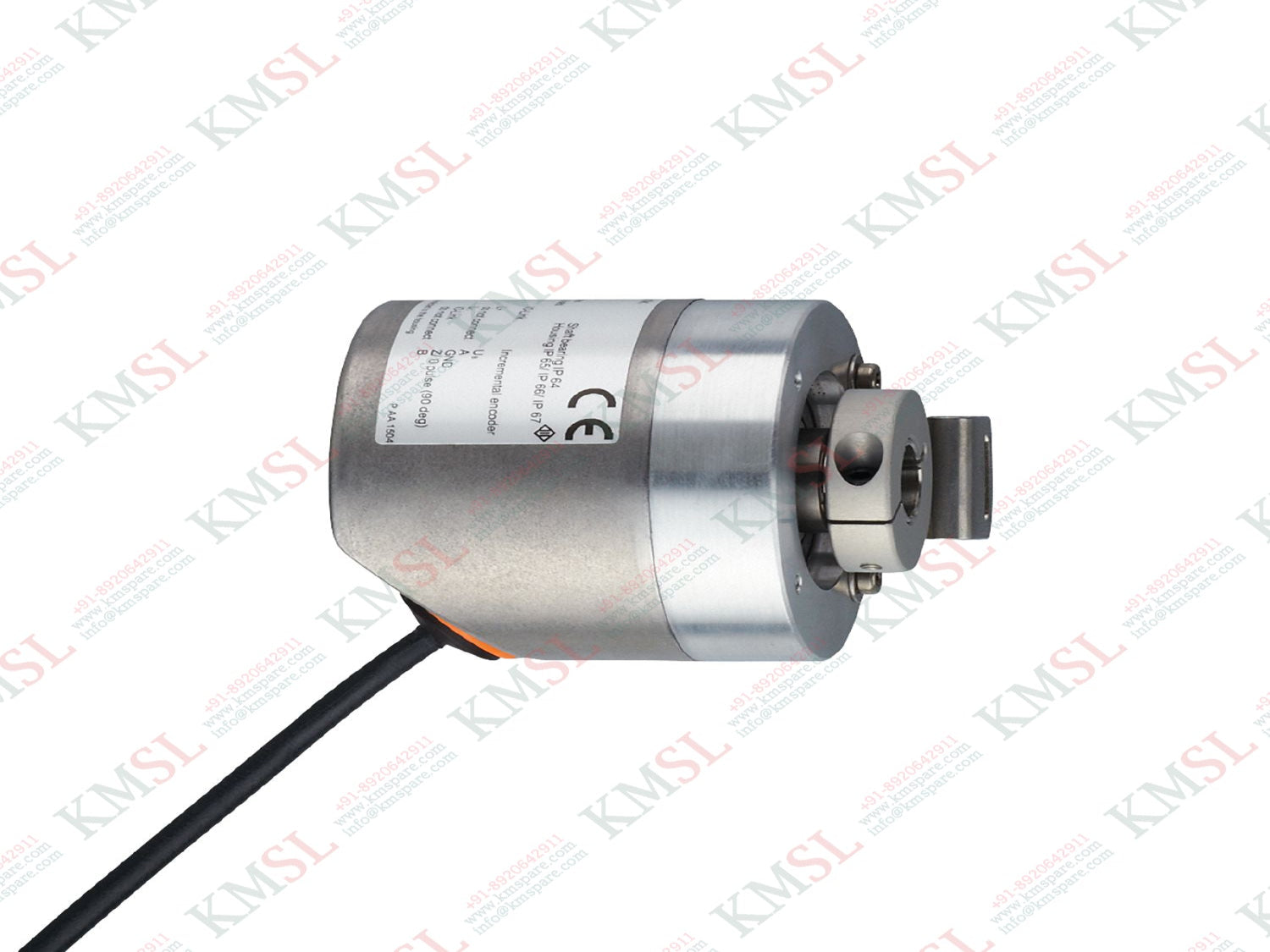

🔧 IFM RV3500 Incremental Encoder | High-Precision, Rugged Stainless Steel Encoder

The IFM RV3500 is a high-performance incremental encoder designed to deliver accurate rotational speed detection, precise position determination, and reliable linear measurement in industrial automation environments. Built with a stainless steel body and shaft, this two-phase encoder provides robust durability, ideal for demanding applications with shock and vibration.

⚙️ Technical Specifications:

• Brand: IFM

• Model/Type: RV3500

• Encoder Type: Incremental Encoder

• Sensor Type: Encoder

• Output Reading: Two Phase

• Material: Stainless Steel

• Shaft Material: Stainless Steel

• Color: Silver

• Voltage: 12 – 24 V

• Frequency: 50 / 60 Hz

• Maximum Output Current: 35 mA

• Protection Rating: IP50

• Temperature Range: -25°C to 75°C

• Product Weight: 441 g

✅ Key Features:

• 🌀 Freely Programmable Resolution: From 1 to 10,000 pulses for ultimate flexibility

• ⚙️ Magnetic Sensing Principle: Delivers high shock and vibration resistance

• 📍 Precise Measurements: Ideal for both rotational speed and linear position monitoring

• 🏭 Industrial Grade: Made for rugged use in factory automation environments

• 🔄 Solid Shaft Design: Ensures stability and long service life
