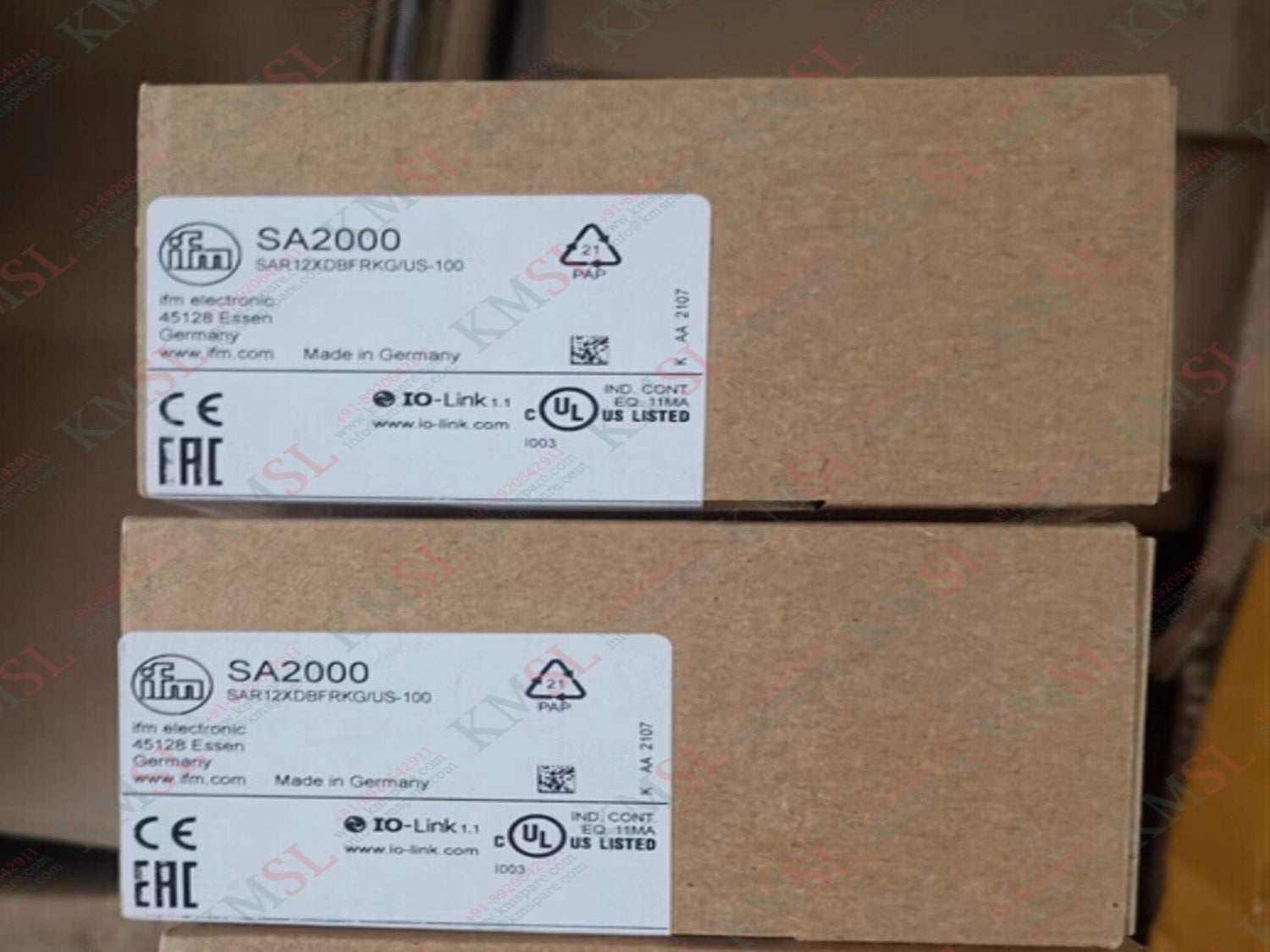

SA2000 IFM Flow Sensor

Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1 Process connection threaded connection G 1/2 external thread Application Special feature Gold-plated contacts Media water; glycol solutions; air; oils Note on media low-viscosity oils with viscosity: ? 40 mm²/s (40 °C) high-viscosity oils with viscosity: > 40 mm²/s (40 °C) Medium temperature[°C] -20...90 Pressure rating 100 bar 10 MPa MAWP for applications according to CRN[bar] 85 Electrical data Operating voltage[V] 18...30 DC Current consumption[mA] < 100 Protection class III Reverse polarity protection yes Power-on delay time[s] 10 Measuring principle calorimetric Inputs / outputs Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1 Outputs Total number of outputs 2 Output signal switching signal; analogue signal; frequency signal; IO-Link; (configurable) Electrical design PNP/NPN Number of digital outputs 2 Output function normally open / normally closed; (parameterisable) Max. voltage drop switching output DC[V] 2.5 Permanent current rating of switching output DC[mA] 250 Number of analogue outputs 1 Analogue current output[mA] 4...20; (scalable) Max. load[?] 350 Short-circuit protection yes Type of short-circuit protection pulsed Overload protection yes Frequency of the output[Hz] 0...1000 Measuring/setting range Probe length L[mm] 19.2 Operating mode relative; absolutely liquid; absolutely gaseous; (absolute: reference measurement recommended; Factory setting: relative) Temperature monitoring Measuring range[°C] -20...90 Resolution[°C] 0.2 Liquid media - absolute operating mode Setting range[m/s] 0.04...3 Greatest sensitivity[m/s] 0.04...3 Liquid media - relative operating mode Setting range[m/s] 0.04...6 Greatest sensitivity[m/s] 0.04...3 Gases - operating mode "absolute" Setting range[m/s] 0...100 Greatest sensitivity[m/s] 30...100 Gases - operating mode "relative" Setting range[m/s] 0...200 Greatest sensitivity[m/s] 30...100 Accuracy / deviations Temperature drift[cm/s x 1/K] 0,003 m/s x 1/K (< 20 °C; > 70 °C) Temperature gradient[K/min] 100 Absolute operating mode Repeatability 0,05 m/s; (water; flow velocity: 0,05...3 m/s) Relative operating mode Accuracy ± (7 % MW + 2 % MEW); (for relative mode in the range of maximum sensitivity under the following conditions:; water: 20...70 °C; inlet length: 1.5 m; DN25 (DIN 2448); mounting position according to instructions; Accuracy can differ for other media and mounting positions.) Repeatability 0,05 m/s; (water; flow velocity: 0,05...3 m/s) Temperature monitoring Temperature drift ± 0,005 K/°C Accuracy[K] ± 0,3 / ± 1; (water; flow velocity: 0,3...3 m/s / air; flow velocity: > 10 m/s) Response times Response time[s] 0.5; (T09; water; glycol: 0,8 s; air: 7 s; oil: 1,8 s; each T09) Temperature monitoring Dynamic response T05 / T09[s] 1,5 (T09); (water; flow velocity: 0,3...3 m/s) Software / programming Parameter setting options hysteresis / window; normally open / normally closed; switching logic; current/frequency output; medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value colour Interfaces Communication interface IO-Link Transmission type COM2 (38,4 kBaud) IO-Link revision 1.1 SDCI standard IEC 61131-9 SIO mode yes Required master port type A Process data analogue 2 Process data binary 2 Min. process cycle time[ms] 3 Supported DeviceIDs Type of operation DeviceID Factory setting / ModE = (REL) 535 ModE = (GAS) 547 ModE = (LIQU) 540 Factory setting / ModE = (REL) Profiles Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Multiple switching signal Function Device diagnosis Function Teach channel ModE = (GAS) Profiles Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis ModE = (LIQU) Profiles Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis Operating conditions Ambient temperature[°C] -40...80 Storage temperature[°C] -40...100 Protection IP 65; IP 67 Tests / approvals EMC DIN EN 60947-5-9 Shock resistance DIN EN 60068-2-27 50 g (11 ms) Vibration resistance DIN EN 60068-2-6 20 g (10...2000 Hz) MTTF[years] 143 UL approval UL approval no. I003 File number UL E174189 Mechanical data Weight[g] 270 Housing cylindrical Dimensions[mm] Ø 34 / L = 123.9 Materials stainless steel (316L/1.4404); stainless steel (301/1.4310); PBT-GF20; PBT-GF30 Materials (wetted parts) stainless steel (316L/1.4404); Gasket: FKM Process connection threaded connection G 1/2 external thread Probe diameter[mm] 5 Installation length EL[mm] 19.2 Displays / operating elements Display Display unit 6 x LED, green (%, m/s, l/min, m³/h, °C, 10³) switching status 2 x LED, yellow measured values alphanumeric display, red/green 4-digit Remarks Remarks MW = measured value MEW = Final value of the measuring range Pack quantity 1 pcs. Electrical connection Connection Connector: 1 x M12; coding: A; Contacts: gold-plated
