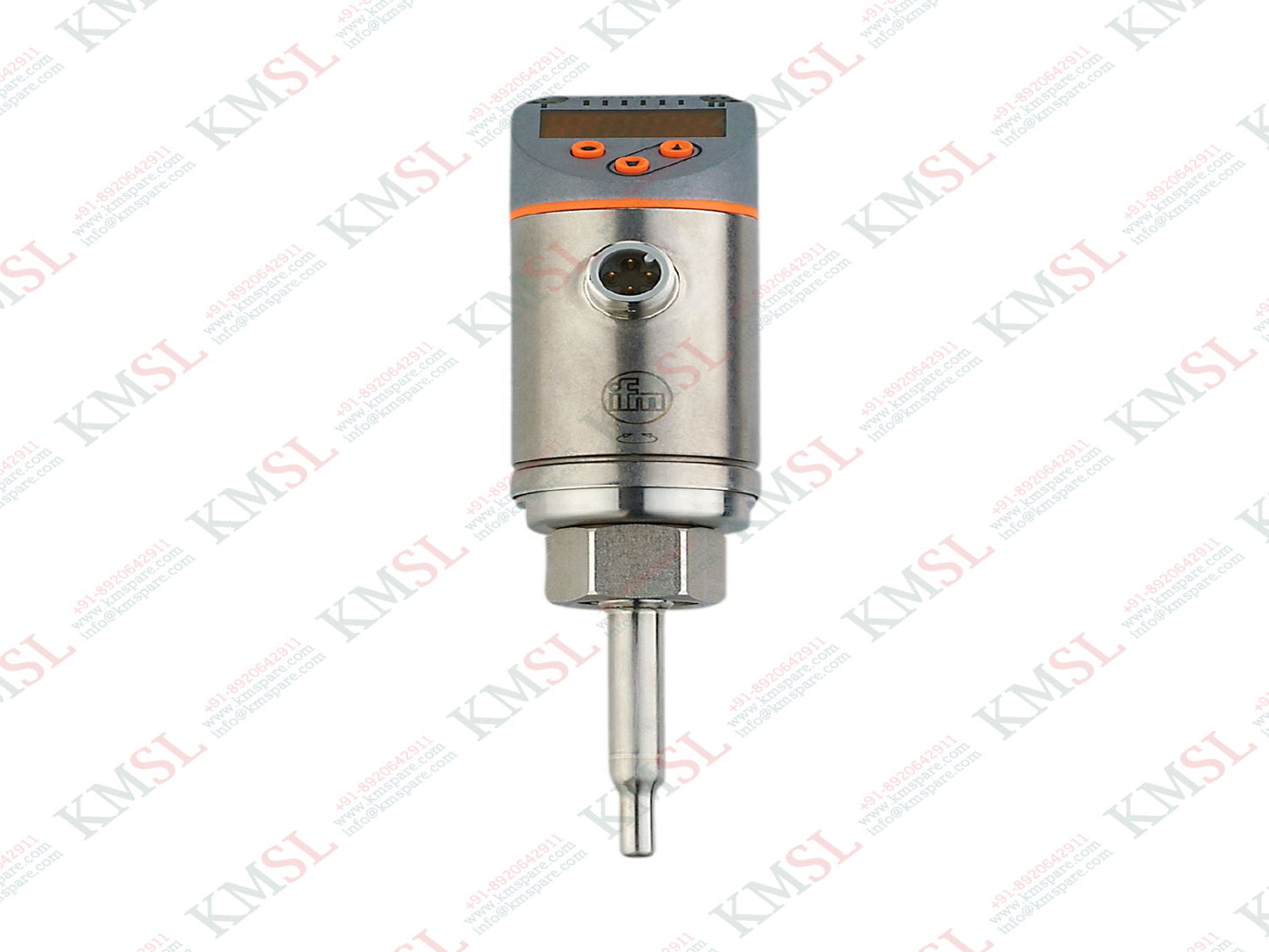

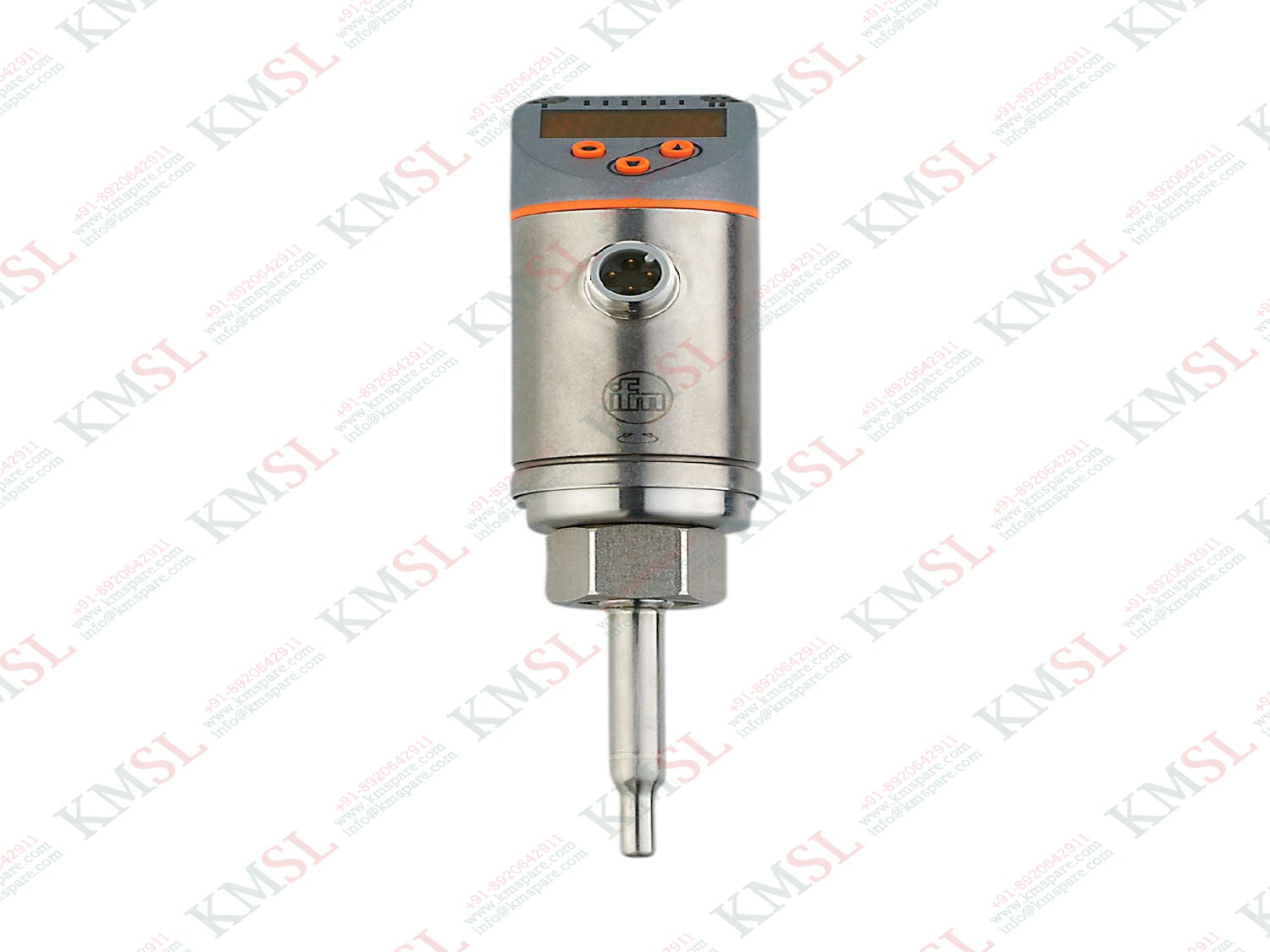

SA5014 IFM Flow Sensor

Number of inputs and outputs Number of analogue outputs: 2 Process connection threaded connection M18 x 1,5 internal thread Application Special feature Gold-plated contacts Media water; glycol solutions; air; oils Note on media low-viscosity oils with viscosity: ? 40 mm²/s (104 °F) high-viscosity oils with viscosity: > 40 mm²/s (104 °F) Medium temperature[°F] -4...194 Pressure rating 100 bar 10 MPa MAWP for applications according to CRN 100 bar 10 MPa Electrical data Operating voltage[V] 18...30 DC Current consumption[mA] < 100 Protection class III Reverse polarity protection yes Power-on delay time[s] 10 Measuring principle calorimetric Inputs / outputs Number of inputs and outputs Number of analogue outputs: 2 Outputs Total number of outputs 2 Output signal analogue signal Number of analogue outputs 2 Analogue current output[mA] 4...20; (scalable) Max. load[?] 350 Short-circuit protection yes Type of short-circuit protection pulsed Overload protection yes Measuring/setting range Probe length L[mm] 45 Operating mode relative; absolutely liquid; absolutely gaseous; (absolute: reference measurement recommended; Factory setting: relative) Liquids Resolution[ft/s] 0.05 Analogue start point ASP[ft/s] 0...7.95 Analogue end point AEP[ft/s] 1.9...9.85 Gases Resolution[ft/s] 2 Analogue start point ASP[ft/s] 0...264 Analogue end point AEP[ft/s] 64...328 Temperature monitoring Measuring range[°F] -4...194 Resolution[°F] 0.5 Analogue start point[°F] -4...169 Analogue end point[°F] 39...212 In steps of[°F] 0.5 Liquid media - absolute operating mode Setting range[ft/s] 0.15...9.85 Greatest sensitivity[ft/s] 0.15...9.85 Liquid media - relative operating mode Setting range[ft/s] 0.15...19.5 Greatest sensitivity[ft/s] 0.15...9.85 Gases - operating mode "absolute" Setting range[ft/s] 98...328 Greatest sensitivity[ft/s] 6...328 Gases - operating mode "relative" Setting range[ft/s] 98...328 Greatest sensitivity[ft/s] 6...328 Accuracy / deviations Temperature drift[cm/s x 1/K] 0,01 fps x 1/K (< 68 °F; > 158 °F) Temperature gradient[K/min] 100 Absolute operating mode Repeatability 0,05 m/s; (water; flow velocity: 0,05...3 m/s) Relative operating mode Accuracy ± (7 % MW + 2 % MEW); (for relative mode in the range of maximum sensitivity under the following conditions:; water: 68...158 °F; inlet length: 5 ft; DN25 (DIN 2448); mounting position according to instructions; Accuracy can differ for other media and mounting positions.) Repeatability 0,05 m/s; (water; flow velocity: 0,05...3 m/s) Temperature monitoring Temperature drift ± 0,003 K/°F Accuracy[K] ± 0,3 / ± 1; (water; flow velocity: 1...9,85 fps / air; flow velocity: > 32,8 fps) Response times Response time[s] 0.5; (T09; water; glycol: 0,8 s; air: 7 s; oil: 1,8 s; each T09) Temperature monitoring Dynamic response T05 / T09[s] 1,5 (T09); (water; flow velocity: 0,3...3 m/s) Software / programming Parameter setting options medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value colour Operating conditions Ambient temperature[°F] -40...176 Storage temperature[°F] -40...212 Protection IP 65; IP 67 Tests / approvals EMC DIN EN 60947-5-9 Shock resistance DIN EN 60068-2-27 50 g (11 ms) Vibration resistance DIN EN 60068-2-6 20 g (10...2000 Hz) MTTF[years] 179 UL approval UL approval no. I004 File number UL E174189 Mechanical data Weight[g] 278 Housing cylindrical Dimensions[mm] Ø 34 / L = 142 Materials stainless steel (316L/1.4404); stainless steel (301/1.4310); PBT-GF20; PBT-GF30 Materials (wetted parts) stainless steel (316L/1.4404); Gasket: FKM Process connection threaded connection M18 x 1,5 internal thread Probe diameter[mm] 8 Installation length EL[mm] 45 Displays / operating elements Display Display unit 6 x LED, green (%, m/s, l/min, m³/h, °C, 10³) measured values alphanumeric display, red/green 4-digit Remarks Remarks MW = measured value MEW = Final value of the measuring range Pack quantity 1 pcs. Electrical connection Connection Connector: 1 x M12; coding: A; Contacts: gold-plated Measurement of flow and temperature at the same time Optimised for water, oils and air Clearly visible 4-digit LED display With two scalable analogue outputs The process connection can be rotated for optimum alignment
