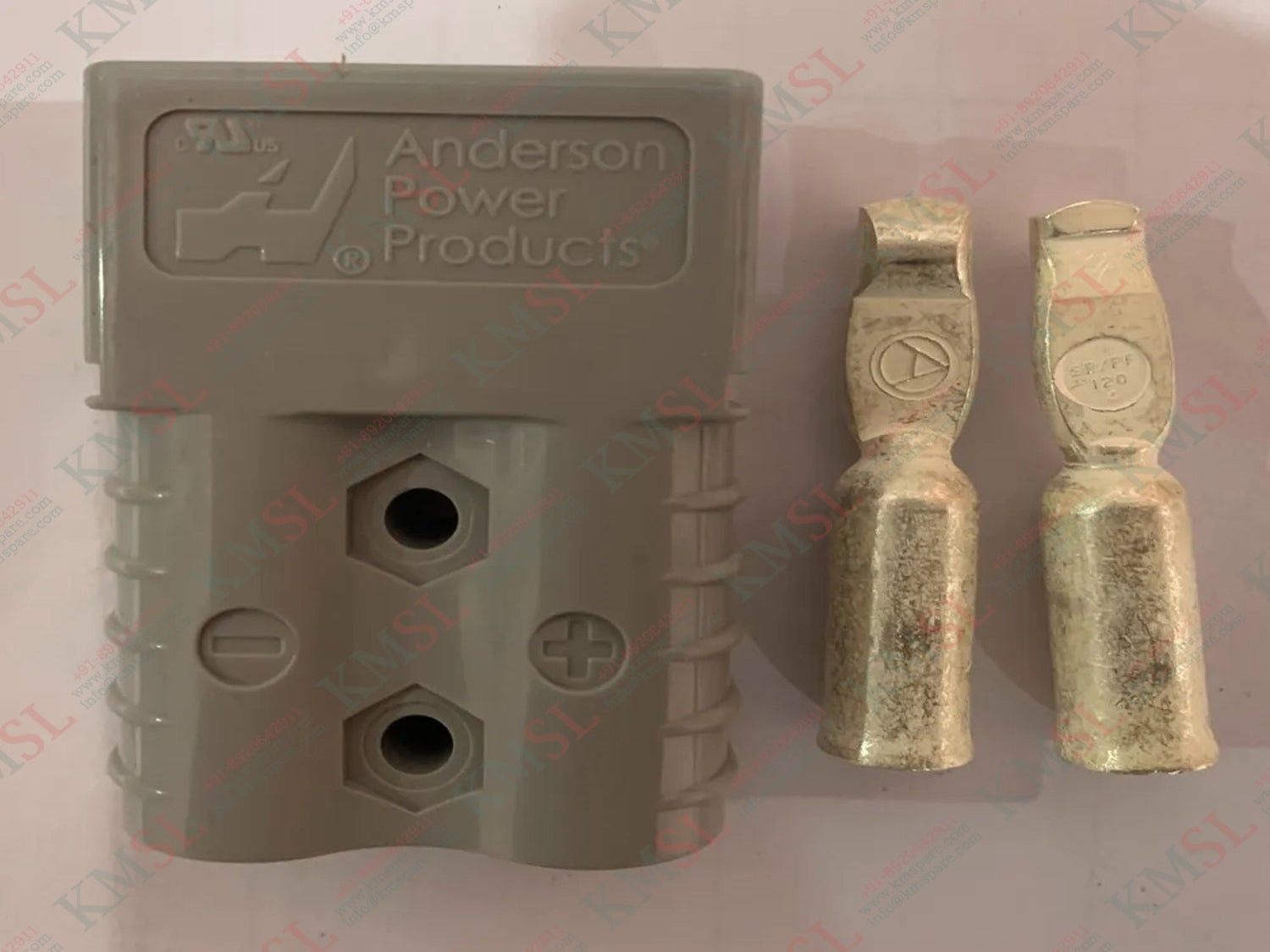

SB 120 Anderson Bekalite Connector | KMSPARE LINK PVT LTD

AMP Rating AC/DC 240 Voltage Rating (Steady State) 600 V Breaking Capacity 120 Amp/10 cycles Wire Size Tested 50 mm2 Contact Series Tested 1323 Temperature Range -20 degree C to 105 Degree C Voltage Rating (Breaking Capacity) 220 VDC Like the other Multipole connectors, the SB®120 offers color-coded mechanically keyed housings. Keys can be used to identify and separate different circuits, or prevent users from accidentally cross mating different voltages. Wires sizes from #10 (5.3 mm²) to #1 (42.4 mm²) are held in the second smallest SB® housing. • New extended range contacts expand wire size up to #1 AWG (42.4 mm²) Allows UL rated currents up to 240 amps • Chemical resistant housing option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance • Panel mounting grooves With use of mounting clamps, can be easily mounted through panels
