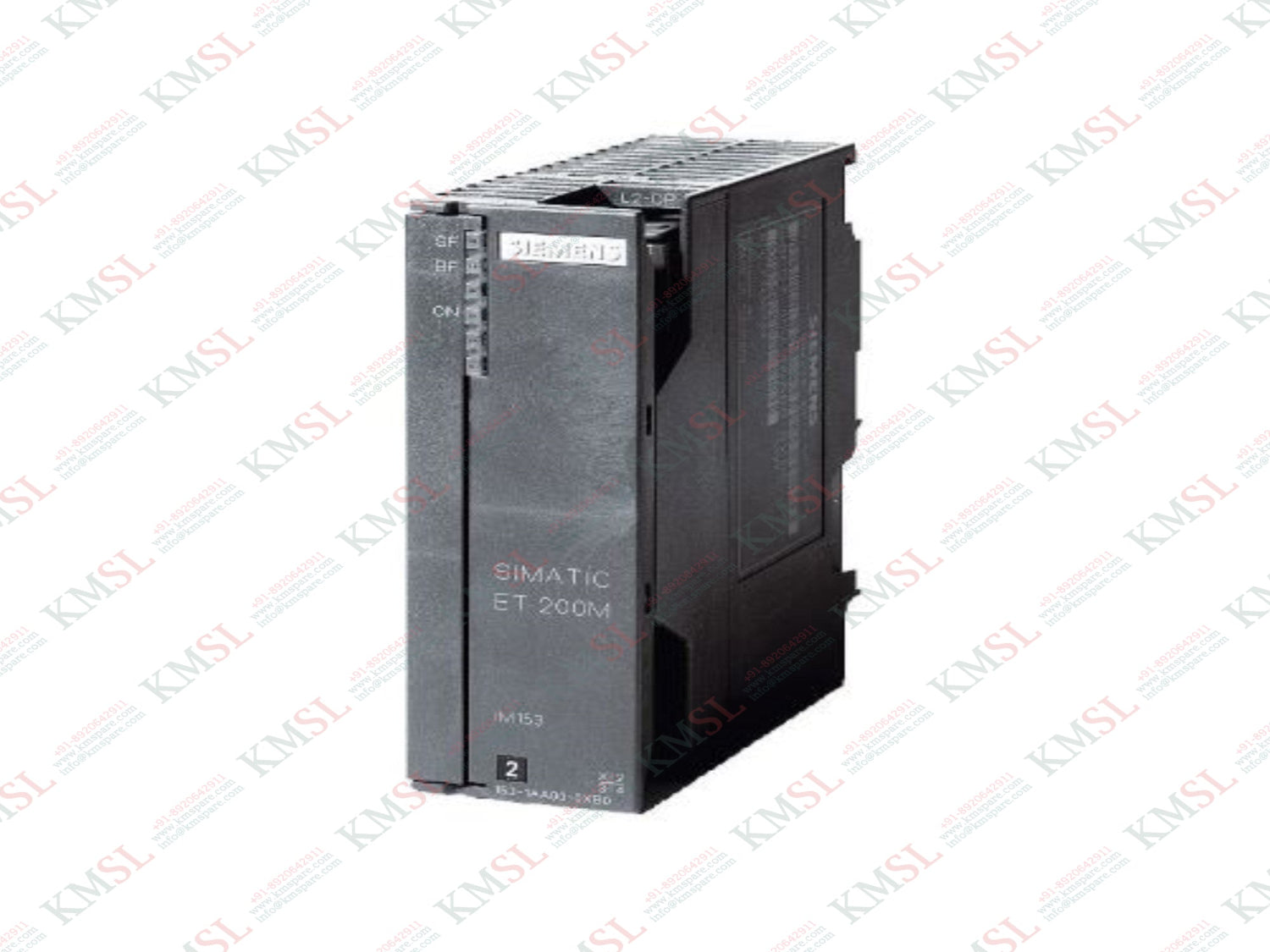

6ES7153-1AA03-0XB0 Siemens Interface Module

Communication Protocols Profibus Brand SIEMENS Manufacturer Series 6ES7153-1AA03-0XB0 Number of insertable modules 8 Baud rates 9.6 kBd ... 12 MBd Diagnostics data 64 Dimensions (W x H x D) 40 x 125 x 117 mm The ET 200M system with various interface modules is available for the distributed use of S7-300 I/O modules. Depending on the application purpose, the best suited IM in terms of costs and functions can be selected: IM153-1 Standard The IM153-1 is one reasonably priced variant that is excellently suited for most applications in the manufacturing environment. It permits the use of up to 8 S7-300 I/O modules. Application The IM 153-1 / IM 153-2 HF interface modules are required to connect the modular I/O device ET 200M to the PROFIBUS DP fieldbus. These heads can be used in many different applications. Design The IM 153-1/153-2 interface module serves as the head module (IM; Interface Module) of the ET 200M. Up to 8 or 12 I/O modules from the module product range of the S7-300 automation system can be connected to the interface module. The interface module and the necessary I/O modules are assembled on a DIN rail for the S7-300. During assembly, the I/O modules are connected to one another using bus connectors and using the IM 153 interface modules. For redundant operation, two IM 153-2 are mounted onto the BM IM/IM bus module. Special DIN rails are available to accommodate the bus modules. When equipping the IM153 with S7-300 modules, slot rules do not have to be taken into account. 6ES7153-1AA03-0XB0 SIMATIC DP, Connection IM 153-1, for ET 200M, for max. 8 S7-300 modules
