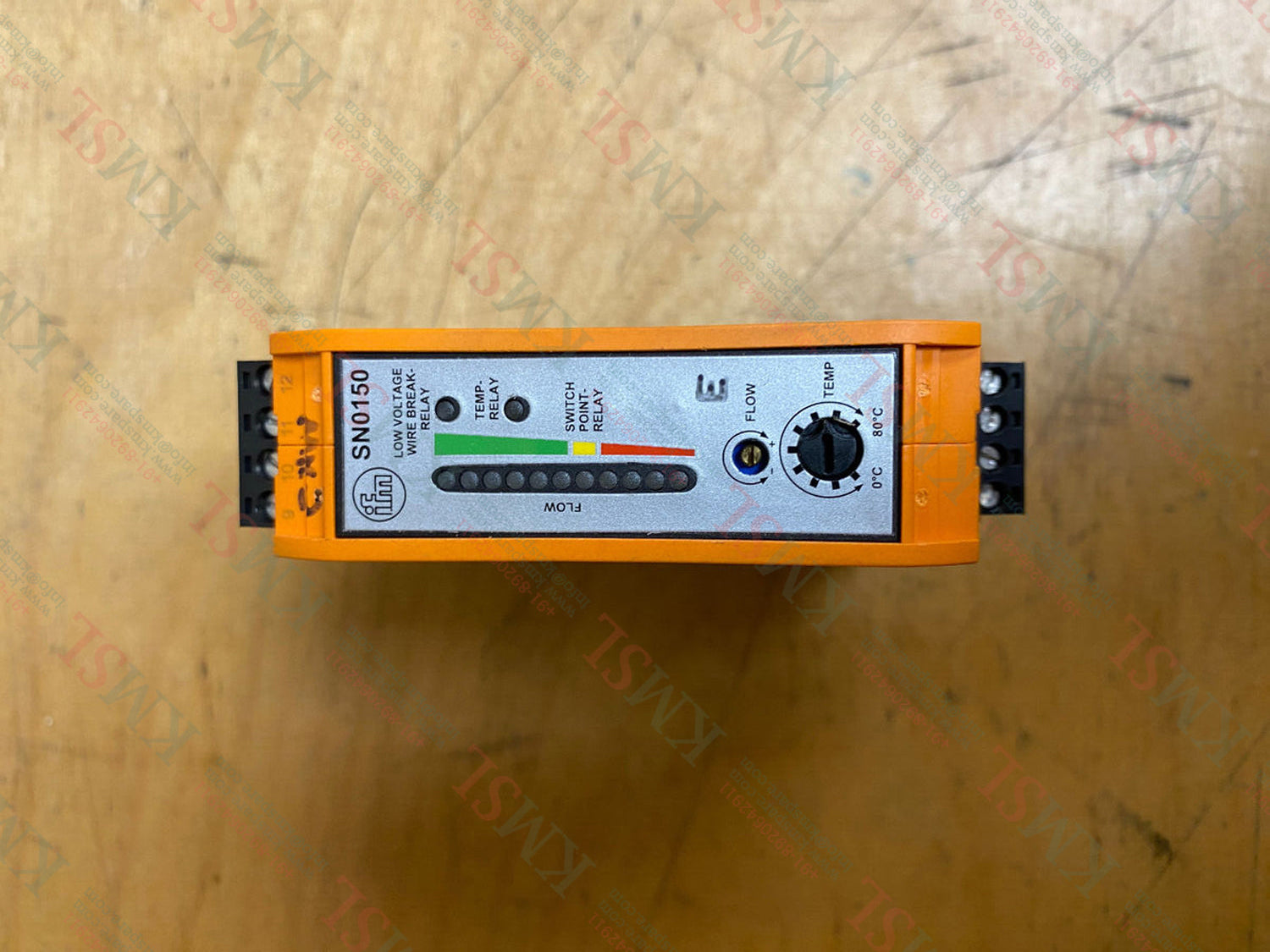

SN0150 IFM Control Monitor | Industrial Automation Monitoring | KMSPARE

Sensor Type Ultrasonic Brand IFM Part Number SN0150 VS3000/85...265VAC Application Industrial Material Stainless Steel Frequency AC [Hz] 47...63 Operating voltage tolerance [%] -5-10 Operating voltage [V] 90...240 AC Power-on delay time [s] 10...80; (adjustable (fixed-value resistors terminals 22-23)) Number of channels 1 Contact rating 4 A (250 V AC / 30 V DC) Electrical design RELAY Response time [s] <3 Protection IP 20 Weight [g] 252.5 Housing DIN rail mounting Dimensions [mm] 100 x 25 x 103.5 For the connection of flow sensors Integrated flow, temperature and wire monitoring Adjustable switching outputs for monitoring flow and temperature Clearly visible multi-colour LED bargraph display Signal output via potential-free relay contacts
