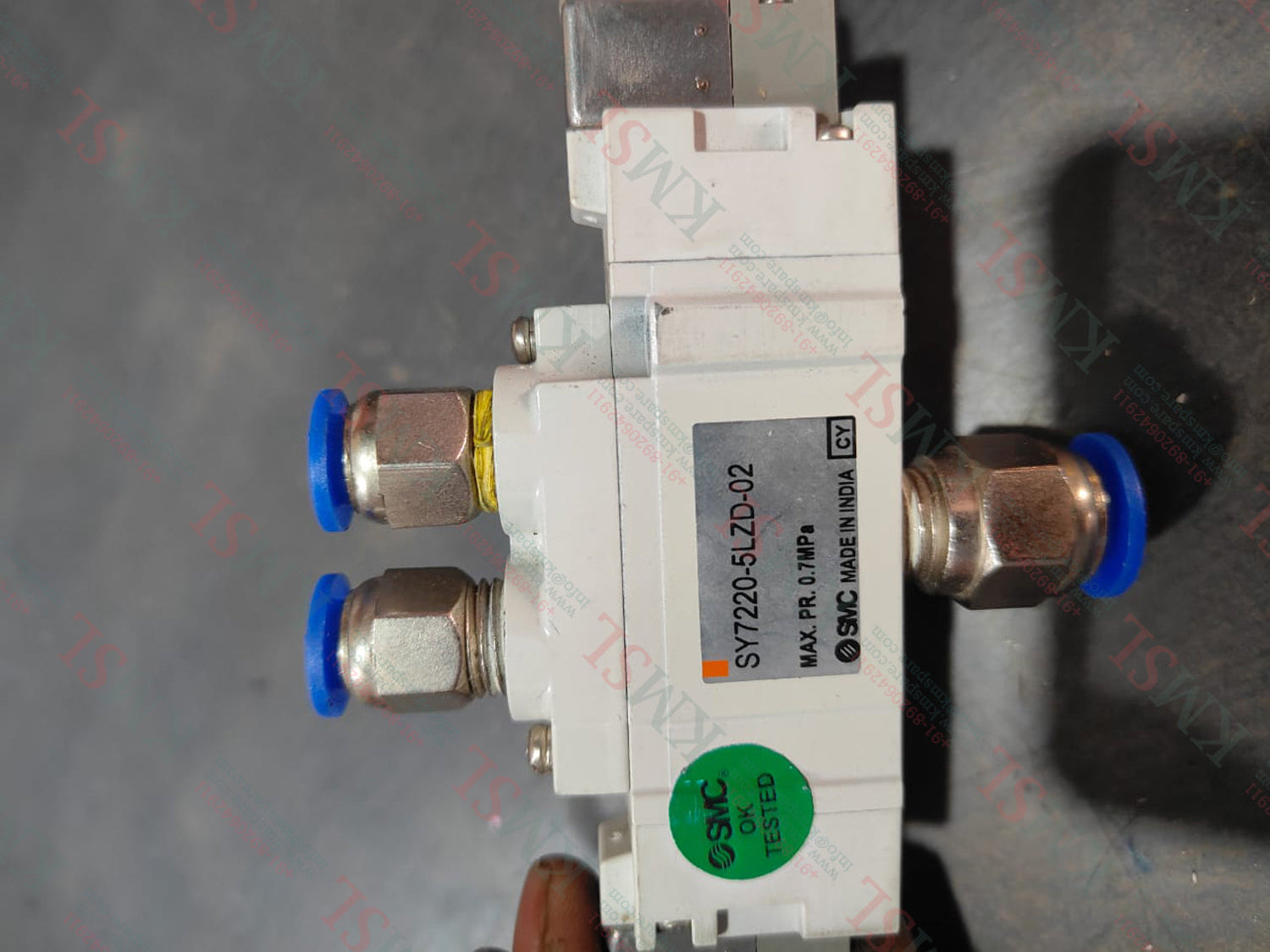

SY7220-5LZD-02 SMC Valve

Valve Size 1/4 inch Material Aluminium Automation Grade Automatic Coil Voltage 24V Brand SMC Product Type Solenoid Valve Model Number SY7220-5D-02 Weight 0.42447 lb Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted. Fluid: air Operating pressure range: (internal pilot) 0.1 - 0.7MPa (external pilot) -100kPa to 0.7MPa (external pilot, pilot pressure range) 0.25 - 0.7MPa Effective area mm 2 (Cv): body ported 10.6 (0.59); base mounted 12.6 (0.7) Coil rated voltage: 3, 5, 6, 12, 24VDC; 100, 110, 200, 220VAC Response time (0.5MPa) w/o indicator light andamp; surge voltage suppressor: 32ms or less Ambient andamp; fluid temperature: 50 C
