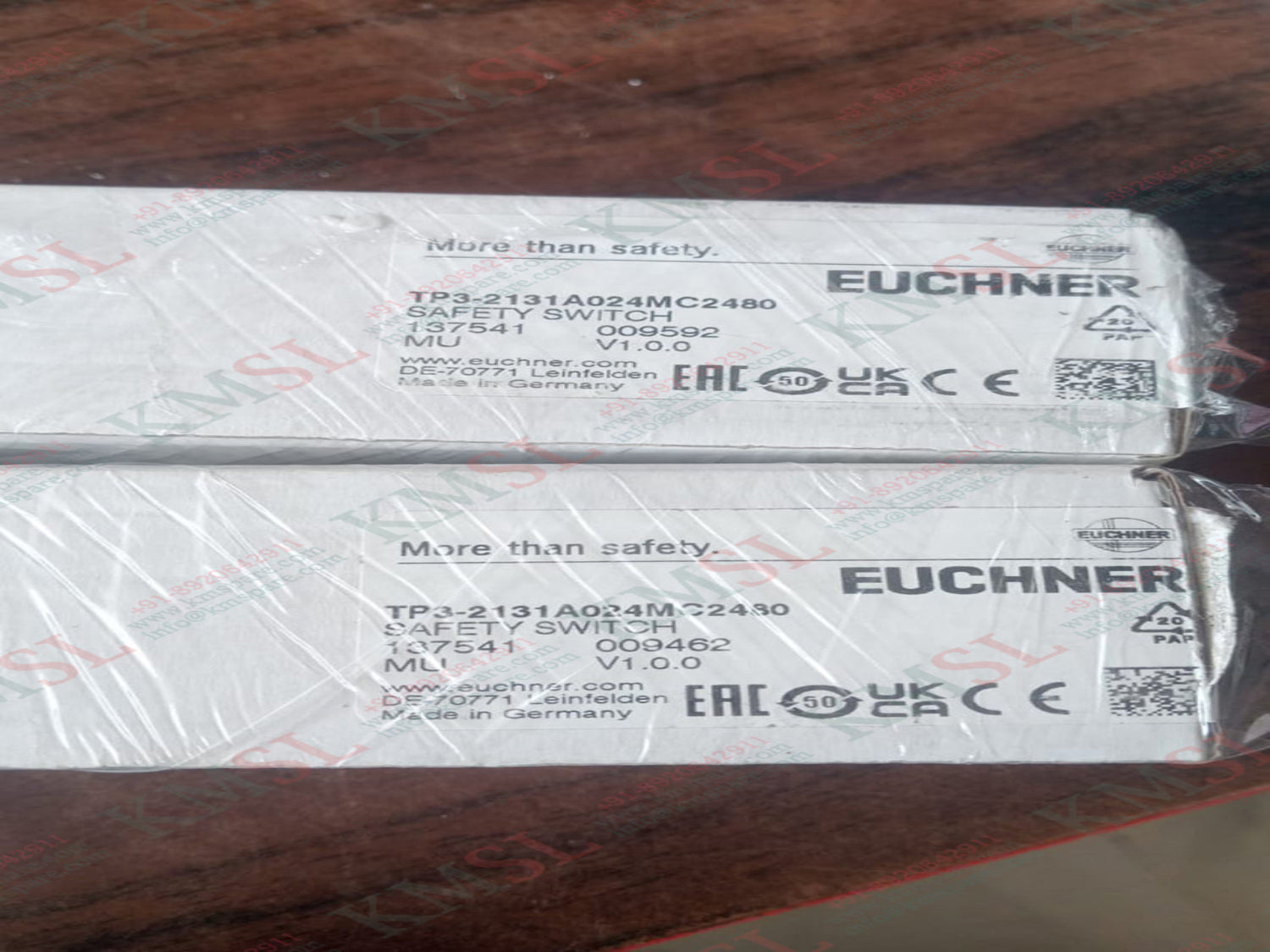

TP3-2131A024MC2480 Euchner Safety Switch

Electrical connection values Power consumption 8 W Connection cross section 0.34 ... 1.5 mm² Rated insulation voltage Ui 250 V Rated impulse voltage Uimp 2.5 kV Utilization category AC-15 4 A 230 V DC-13 4 A 24 V Short circuit protection according to IEC 60269-1 4A gG Solenoid operating voltage AC/DC 24 V -15% ... +10% Solenoid duty cycle 100 % Switching voltage min. at 10 mA 12 V Switching current min. at 24 V 1 mA thermal rated current Ith 4 A Mechanical values and environment Approach speed max. 20 m/min Connection type 3 x M20 x 1.5 Number of door position NC contacts 1 Number of guard lock monitoring NO contacts 1 Number of guard lock monitoring positively driven contacts 2 Extraction force 20 N Actuating force 10 N Installation orientation any Mechanical life 1 x 10? Retention force 10 N Switching principle Slow-action switching contact Degree of protection IP67 Ambient temperature -20 ... +55 °C Material Contact Silver alloy, gold flashed Housing Reinforced thermoplastic Locking force Fmax 1300 N Locking force FZh 1000 N Guard locking principle Closed-circuit current principle
