UB500-18GM75-E7-V15 P&F Ultrasonic Sensor

P&F UB500-18GM75-E7-V15 Ultrasonic Sensor – 30–500 mm Range, High Frequency, IP67 Rated

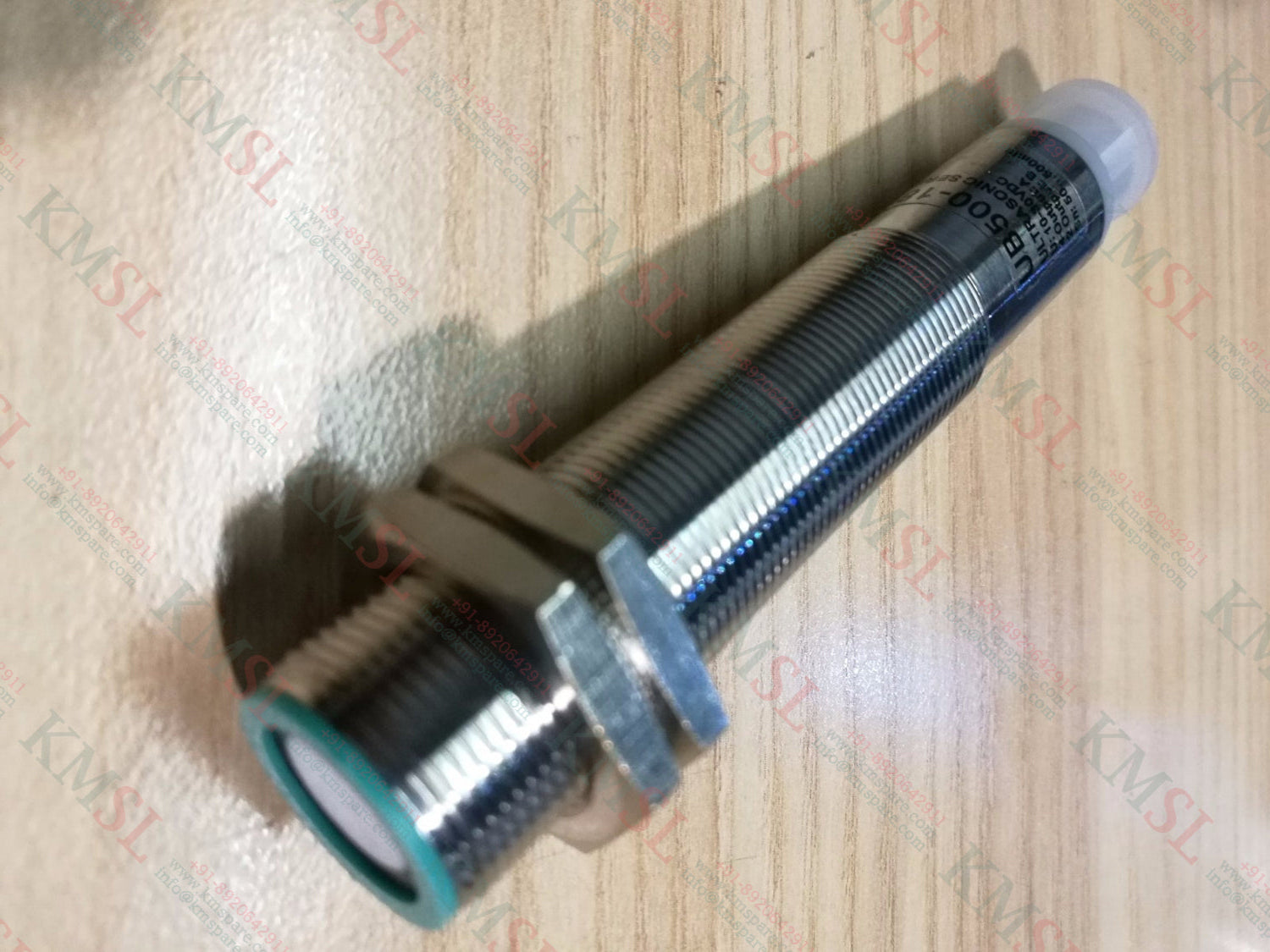

The UB500-18GM75-E7-V15 from Pepperl+Fuchs (P&F) is a high-precision ultrasonic sensor engineered for industrial applications requiring reliable, contactless object detection. With its compact cylindrical design, wide sensing range (30–500 mm), and high switching frequency of 360 kHz, this sensor delivers excellent performance in space-constrained or demanding environments.

🔧 Key Features:

• Model: UB500-18GM75-E7-V15

• Sensor Type: Ultrasonic

• Sensing Distance: 8 mm

• Sensing Range: 30 mm to 500 mm

• Adjustment Range: 50 mm to 500 mm

• Dead Band (Blind Zone): 0 mm to 30 mm

• Output Type: Switching Output

• Switching Frequency: 360 kHz

• Response Frequency: 350 kHz

• Transducer Frequency: Approx. 380 kHz

• Power Supply Voltage: 10 to 30 V DC

• Nominal Voltage: 10 to 30 V

• Accuracy: 100%

• Material: PBT housing, stainless steel body

• Ambient Operating Temperature: -40°C to +85°C

• Weight: 65 g

• Indicators:

  • Yellow LED: Switching state

  • Flashing LED: Program mode or object detected

⚙️ Advanced Features:

• High-Speed Response: ~50 ms response delay for fast detection

• LED Status Indicator: Visual feedback for easy diagnostics

• Durable Construction: Built to perform in harsh industrial environments

• Compact Design: Easy to install in tight spaces

• IP67 Rated: Water and dust resistant for outdoor or washdown environments

🏭 Ideal for Applications Such As:

• Automated production lines

• Material handling and conveyor systems

• Tank level monitoring

• Robotics and packaging machinery

• Non-contact object and presence detection

The UB500-18GM75-E7-V15 ultrasonic sensor combines compact design, rapid response, and rugged durability, making it a go-to solution for reliable detection in industrial automation.
